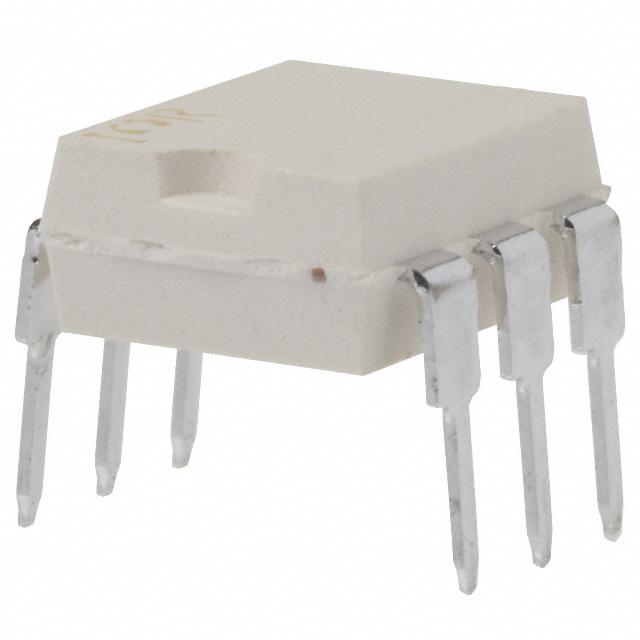

PVG612
Solid State SPST-NO (1 Form A) 6-SMD (0.300", 7.62mm)
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PVG612 by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PVG612
| Part Name | PVG612 |
| Manufacturer | Infineon Technologies |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 8.63 x 6.47 x 3.42 (mm) |
| Relay Type | Photovoltaic |
| Capacitance | 130 (pF) |
| Maximum Load Voltage (V) | 60 (V ac/dc) |
| Output Device | MOSFET |
| Load Voltage Range (V) | 0 → 60 (V) |
| Package Style | SMT |
| Switching Type | AC/DC |
| Maximum Operating Temperature | +85 (°C) |
| Terminal Type | PCB Pin |
| Operating Temperature Range | -40 → +85 (°C) |
| Contact Configuration | SPST |
| Length | 8.6 (mm) |
| Maximum Turn On Time | 2 (ms) |
| Special Features | Bounce-Free Operation, Solid-State Reliability |
| Number Of Poles | 1 |
| Maximum Load Current (A) | 2.4 A |
| Mounting Type | Surface Mount |
| Series | PVG612 |
| Depth | 6.5 (mm) |
| Height | 3.4 (mm) |
| Minimum Operating Temperature | -40 (°C) |
| Minimum Load Voltage (V) | 0 V |
