PVQ100W-O72-S54-D
SnapVerified
54 Vdc, 1.85 A, 100 W, 12~160 Vdc Input Range
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PVQ100W-O72-S54-D by CUI Inc. and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

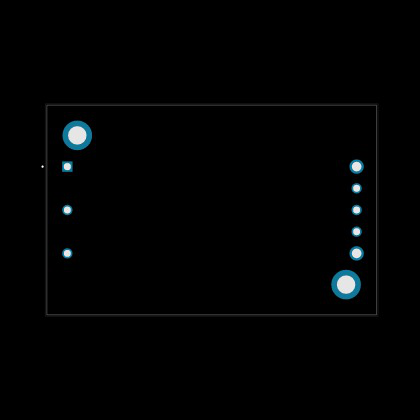

Footprint
No web preview
This Footprint is Available for

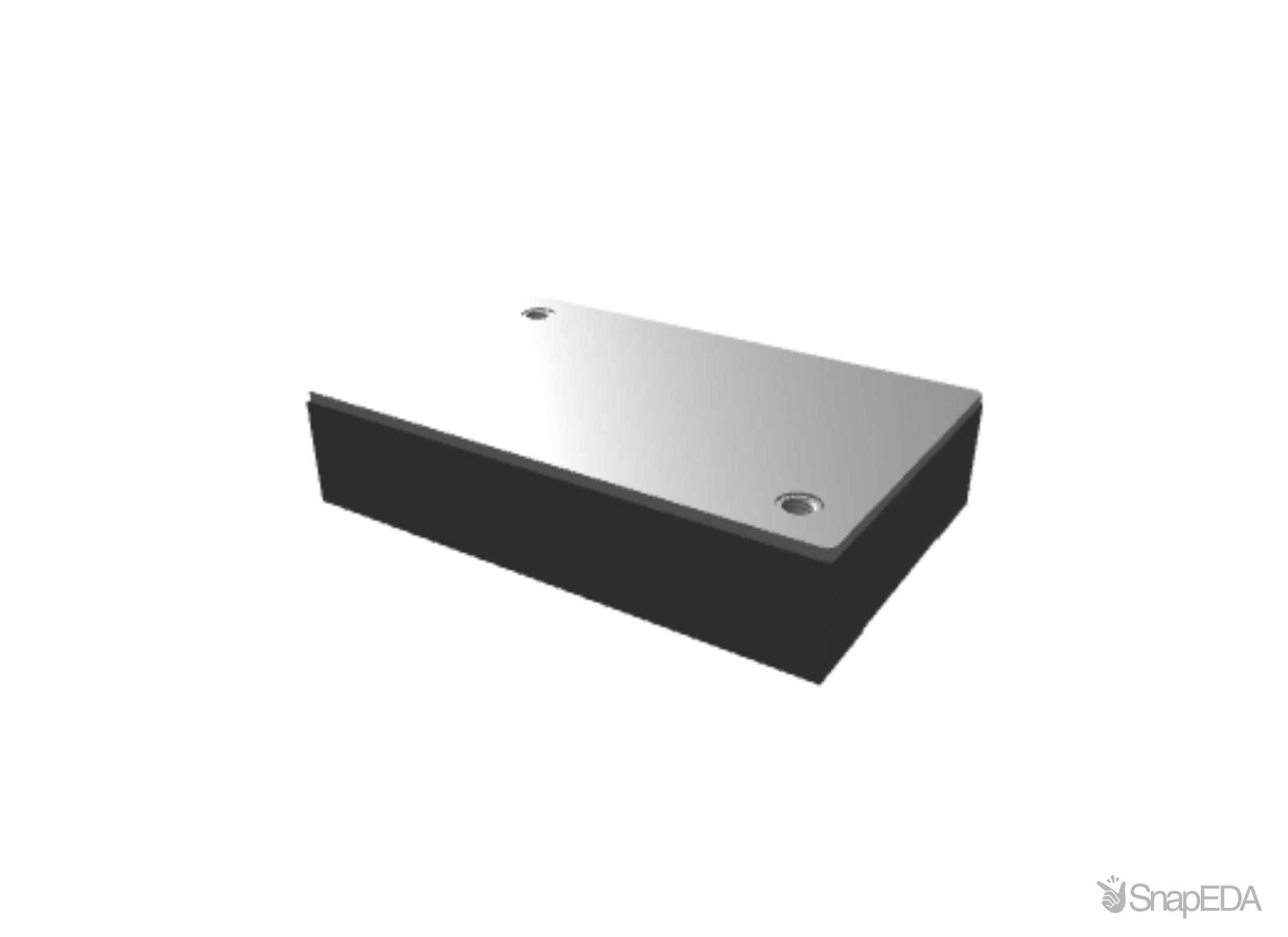

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PVQ100W-O72-S54-D
| Part Name | PVQ100W-O72-S54-D |
| Manufacturer | CUI Inc. |
| RoHS and REACH Link | https://www.cui.com/product/resource/material-compliance/pvq100w-d-series |
| Operating Temp MIN (°C) | -40 |
| Output Voltage (Vdc) (V) | 54 |
| Regulation | Yes |
| Protections | Over Current |
| Dimensions LxWxH (mm) | 57.9 x 36.8 x 12.8 |
| Operating Temp MAX (With Derating, °C) | 65 |
| Operating Temp MAX (°C) | 105 |
| Package Type | DIP |
| Isolation (Vdc) | 4200 |
| Safety Standards | 62368 |
| Safety Approvals | CE, UKCA, UL/cUL |
| Power (W) | 100 |
| Input Voltage (Vdc) (V) | 12 ~ 160 |
| Output Current (A) | 1.85 |
| Special Features | Remote On/Off Control |
| Operating Temp MIN (With Derating, °C) | -40 |
| RoHS | True |
| Input Ratio | 14:1 |
| Standard Footprint | 1/4 Brick |
| Series Power (W) | 100 |
| Dimensions LxWxH (in) | 2.28 x 1.45 x 0.5 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the PVQ100W-O72-S54-D
