PX0843/B

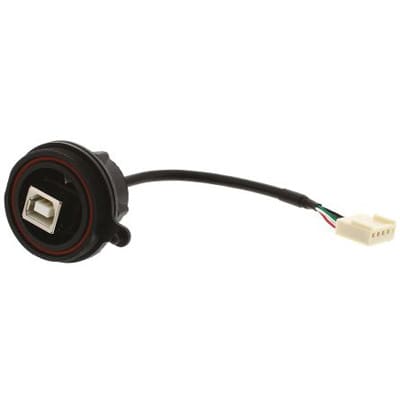

Double Ended Between-Series, USB Type B Receptacle to 5-Way Crimp, 0.49 In, PVC | Bulgin PX0843/B
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PX0843/B by Bulgin and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PX0843/B
| Part Name | PX0843/B |
| Manufacturer | Bulgin |
| Category | Wire & Cable |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Connector 2 Gender | Female |
| Usb Version | USB 2.0 |
| Mounting Type | Panel Mount |
| Ip Rating | IP68 |
| Connector 1 Gender | Female |
| Sheath Colour | Black |
| Length | 150 (mm) |
| Connector 2 | USB B |
| Connector 1 | 5 Pin Socket |
| Usb Cable Type | USB Cable |
