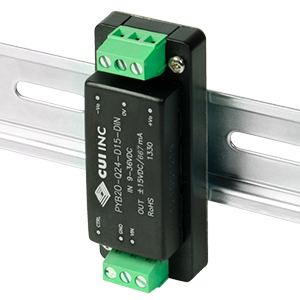

PYB20-Q24-S5-DIN
5 Vdc, 4 A, 20 W, 9~36 Vdc Input Range
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PYB20-Q24-S5-DIN by CUI and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PYB20-Q24-S5-DIN
| Part Name | PYB20-Q24-S5-DIN |
| Manufacturer | CUI Inc. |
| Safety Standards | 62368 |
| Number of Outputs | 1 |
| Operating Temp MAX (°C) | 55 |
| Input Ratio | 4:1 |
| RoHS and REACH Link | https://www.cui.com/product/resource/material-compliance/pyb20-din-series |
| Power (W) | 20 |
| Input Voltage (Vdc) (V) | 9 ~ 36 |
| Operating Temp MIN (°C) | -40 |
| Output Voltage (Vdc) (V) | 5 |
| Nom. Input Voltage (Vdc) (V) | 12, 15, 18, 20, 24, 28, 30, 32, 36, 9 |
| Regulation | Yes |
| Package Type | DIN Rail |
| Isolation (Vdc) | 1500 |
| Dimensions LxWxH (mm) | 76 x 31.5 x 25.8 |
| Output Current (A) | 4 |
| Special Features | Extended Temp Range, Output Trim, Remote On/Off Control |
| Operating Temp MAX (With Derating, °C) | 85 |
| Series Power (W) | 20 |
| Operating Temp MIN (With Derating, °C) | -40 |
| Dimensions LxWxH (in) | 2.99 x 1.24 x 1.02 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the PYB20-Q24-S5-DIN by CUI from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
N/A | Visit Site | |
| Mouser |
|
N/A | Visit Site |
No issues have been reported for the PYB20-Q24-S5-DIN
