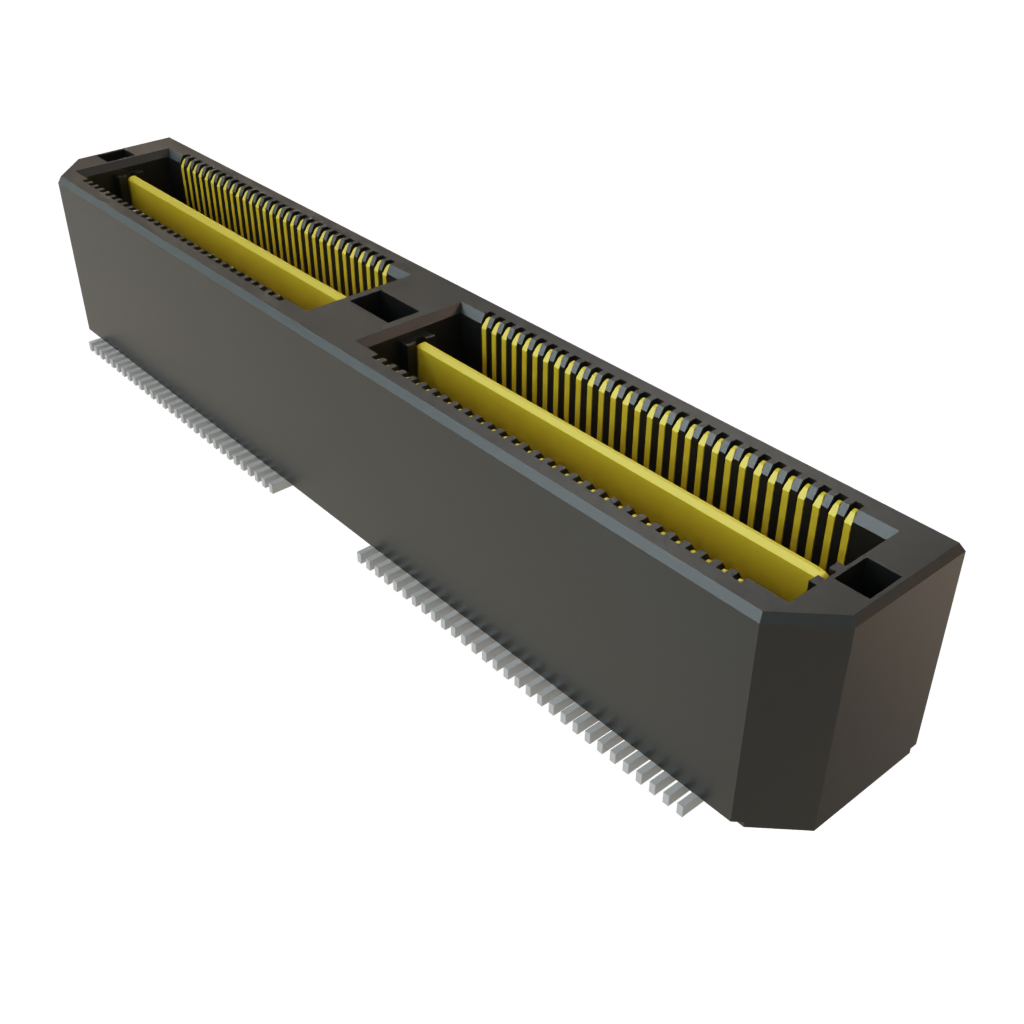

QTH-060-02-L-D-A
SnapVerified
120 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Availability: In Stock
Country of Origin: Malaysia
CAD Models: Symbol, Footprint, 3D Model
Get this part
Arrival in under 3 days
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the QTH-060-02-L-D-A by Samtec Inc. and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the QTH-060-02-L-D-A
| Part Name | QTH-060-02-L-D-A |
| Manufacturer | Samtec Inc. |
| HTS Number | 8536.69 |
| ECCN Category | EAR99 |
| Series | QTH |
| Country of Origin | Malaysia |
| Packaging | Tray |
| Life Cycle Status | Production |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 2.0 (A) |
| Shrouded Unshrouded | Shrouded |
| Mounting Type | Surface Mount |
| Voltage Rating (V) | 175.0 V |
| Series | QTH |
| Body Orientation | Straight |
| Pitch | 0.5 (mm) |
| Connector System | Board to Board |
| Number Of Rows | 2 |
| Contact Plating | Gold |
| Termination Method | Solder |
| Number Of Contacts | 120 |
| Contact Material | Phosphor Bronze |
Inventory for the QTH-060-02-L-D-A by Samtec Inc. from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
|
Visit Site | |
|
★ Featured
|
1,430
|
|
Visit Site | |
|
★ Featured
|
|
|
Visit Site | |
| Arrow Europe |
29
|
|
Visit Site | |
| Onlinecomponents |
27
|
|
Visit Site | |
| Verical |
64
|
|
Visit Site |
No issues have been reported for the QTH-060-02-L-D-A
