R-78AA3.3-1.0SMD

Name: R-78AA3.3-1.0SMD
Brand: Recom Power

Recom Switching Regulator, 4.75 - 18V Input, 3.3V Output, 1A | RECOM Power Inc. R-78AA3.3-1.0SMD

Availability: Out of Stock

Package Type: SMD-10

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the R-78AA3.3-1.0SMD by Recom Power and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

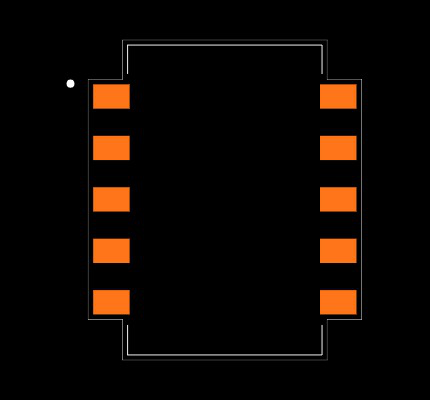

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

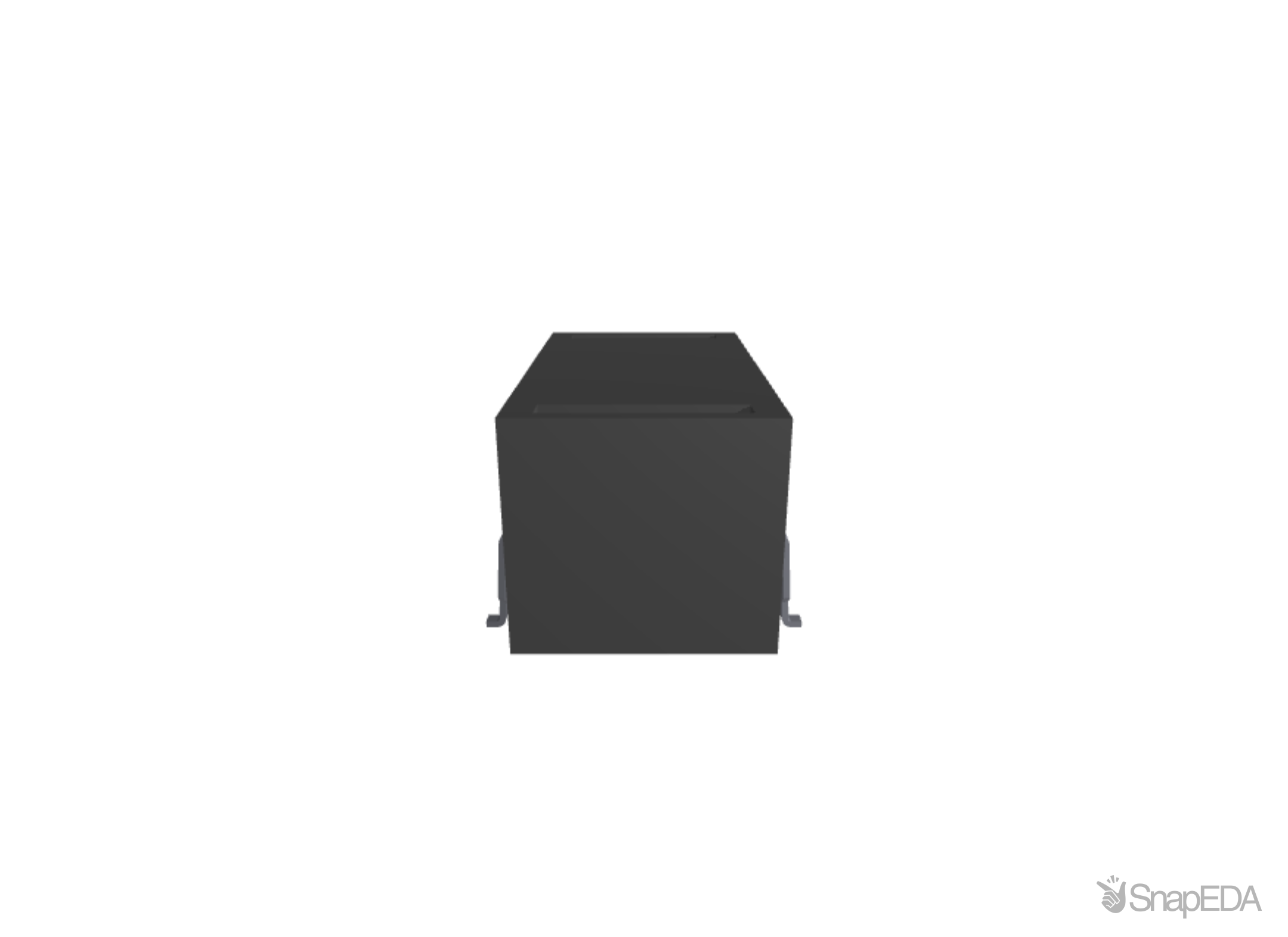

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the R-78AA3.3-1.0SMD

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the R-78AA3.3-1.0SMD

Part Name	R-78AA3.3-1.0SMD
Manufacturer	Recom Power
Category	Power Products
Number of Outputs	1.0
Isolation Voltage (V)	{'is_url': False, 'value': 0.0}
Output Current (A)	1.0
Case Package	SMD 10 Pin
Series	R-78AA-1.0
Short Circuit Protection	True
Packaging Type	Tube
Lead Free Status	True
Output Voltage (V)	[3.0, 5.5]
high_runner	TRUE
Product Link	https://recom-power.com/en/products/switching-regulators/rec-p-R-78AA3.3-1.0SMD.html
Input Voltage (V)	[4.75, 18.0]
RoHS	True
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
Maximum Temperature	+85 (°C)
Minimum Temperature	-40 (°C)
Width	9.6 (mm)
Protection Features	Short Circuit Protection
Mounting Type	Surface Mount
Maximum Input Current (A)	120 (mA)
Number Of Outputs	1
Current Limiting Method (A)	Short-Circuit Current Limit
Load Regulation	±1 (%)
Standards Met	EN 60950-1
Efficiency	90 (%)
Input Voltage (V)	4.75 → 18 (V dc)
Switching Frequency Range	335 → 435 (kHz)
Output Current (A)	1 (A)
Output Voltage Adjustment Range (V)	3 → 5.5 (V dc)
Line Regulation	±0.4 (%)
Package	SMD
Ripple And Noise	30 (mV Pk-Pk)
Depth	8.8 (mm)
Special Features	Thermal Shutdown and Short-Circuit Current Limit
Power Signal Conversion Type	DC-DC
Mtbf	21070000 (h)
Weight	1.7 (g)
Application	Industrial
Series	R-78AA-1.0
Length	15.3 (mm)
Output Voltage (V)	3.3 (V dc)
Power Rating	3.3 (W)

We could not find inventory or pricing across major distributors for the R-78AA3.3-1.0SMD by Recom Power.
