R-78HB6.5-0.5
Recom Switching Regulator, 9 - 72V Input, 6.5V Output, 0.5A | RECOM Power Inc. R-78HB6.5-0.5
Availability: Out of Stock
Package Type: SIP-3
CAD Models: Symbol, Footprint, 3D Model
More Resources
Use this component in your design
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the R-78HB6.5-0.5 by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

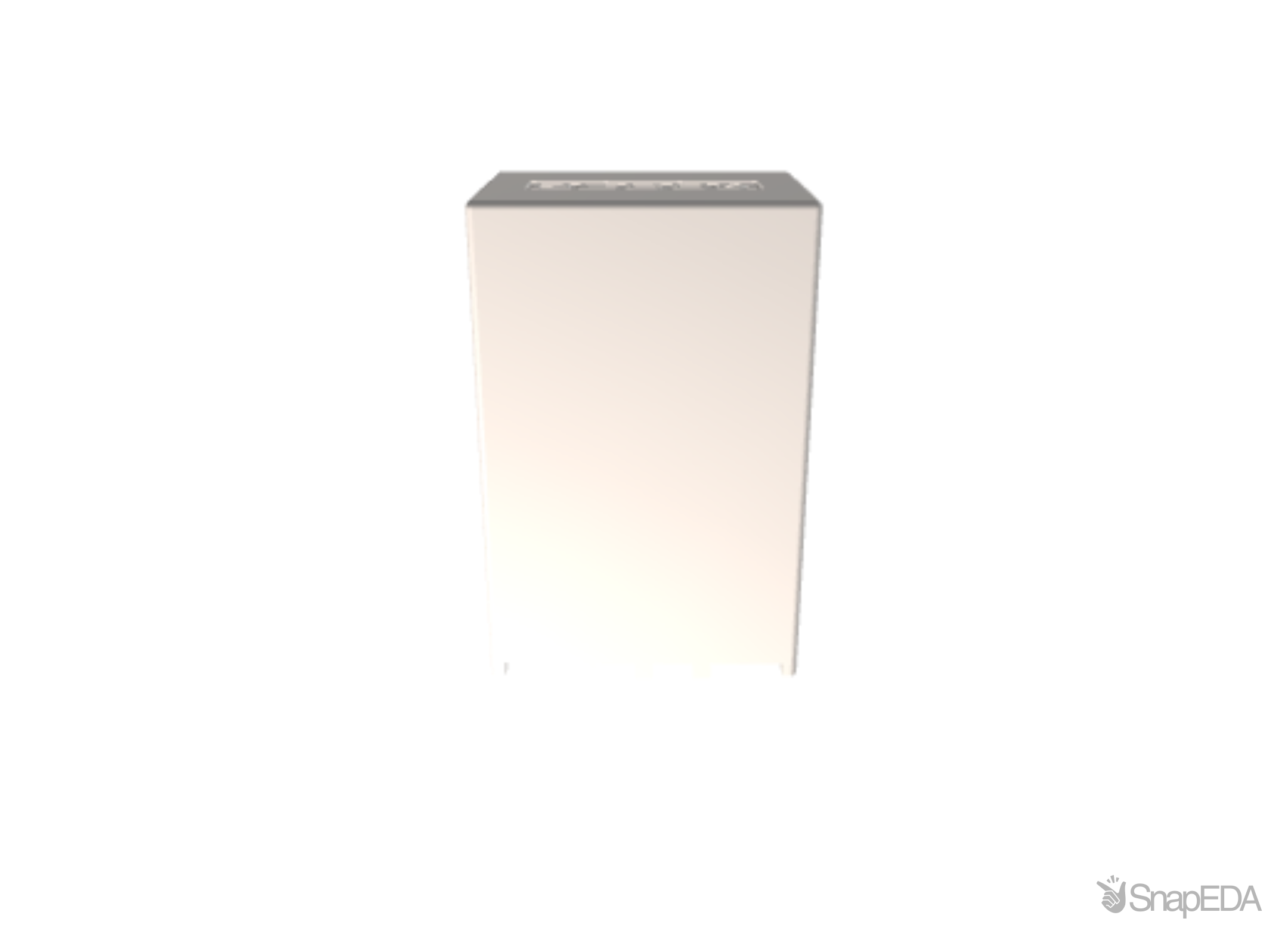

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the R-78HB6.5-0.5
| Part Name | R-78HB6.5-0.5 |
| Manufacturer | Recom Power |
| Category | Power Products |
| Number of Outputs | 1.0 |
| Isolation Voltage (V) | {'is_url': False, 'value': 0.0} |
| Output Current (A) | 0.5 |
| Case Package | SIP3 |
| Series | R-78HB |
| Short Circuit Protection | True |
| Packaging Type | Tube |
| Lead Free Status | True |
| Output Voltage (V) | [6.5, 6.5] |
| Product Link | https://recom-power.com/en/products/switching-regulators/rec-p-R-78HB6.5-0.5.html |
| Input Voltage (V) | [9.0, 72.0] |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Outputs | 1 |
| Maximum Temperature | +85 (°C) |
| Width | 8.5 (mm) |
| Standards Met | EN 55032 |
| Weight | 4 (g) |
| Package | SIP |
| Series | R-78HB-0.5 |
| Ripple And Noise | 20 (mV Pk-Pk) |
| Length | 11.5 (mm) |
| Input Voltage (V) | 9 → 72 (V dc) |
| Efficiency | 84 (%) |
| Depth | 17.5 (mm) |
| Load Regulation | ±0.6 (%) |
| Mounting Type | Through Hole |
| Minimum Temperature | -40 (°C) |
| Application | Industrial |
| Protection Features | Short Circuit Protection |
| Output Voltage (V) | 6.5 (V dc) |
| Output Current (A) | 500 (mA) |
| Line Regulation | ±1 (%) |
