R113426000
MCX F STR SMT C100 | RADIALL R113426000
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the R113426000 by Radiall and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

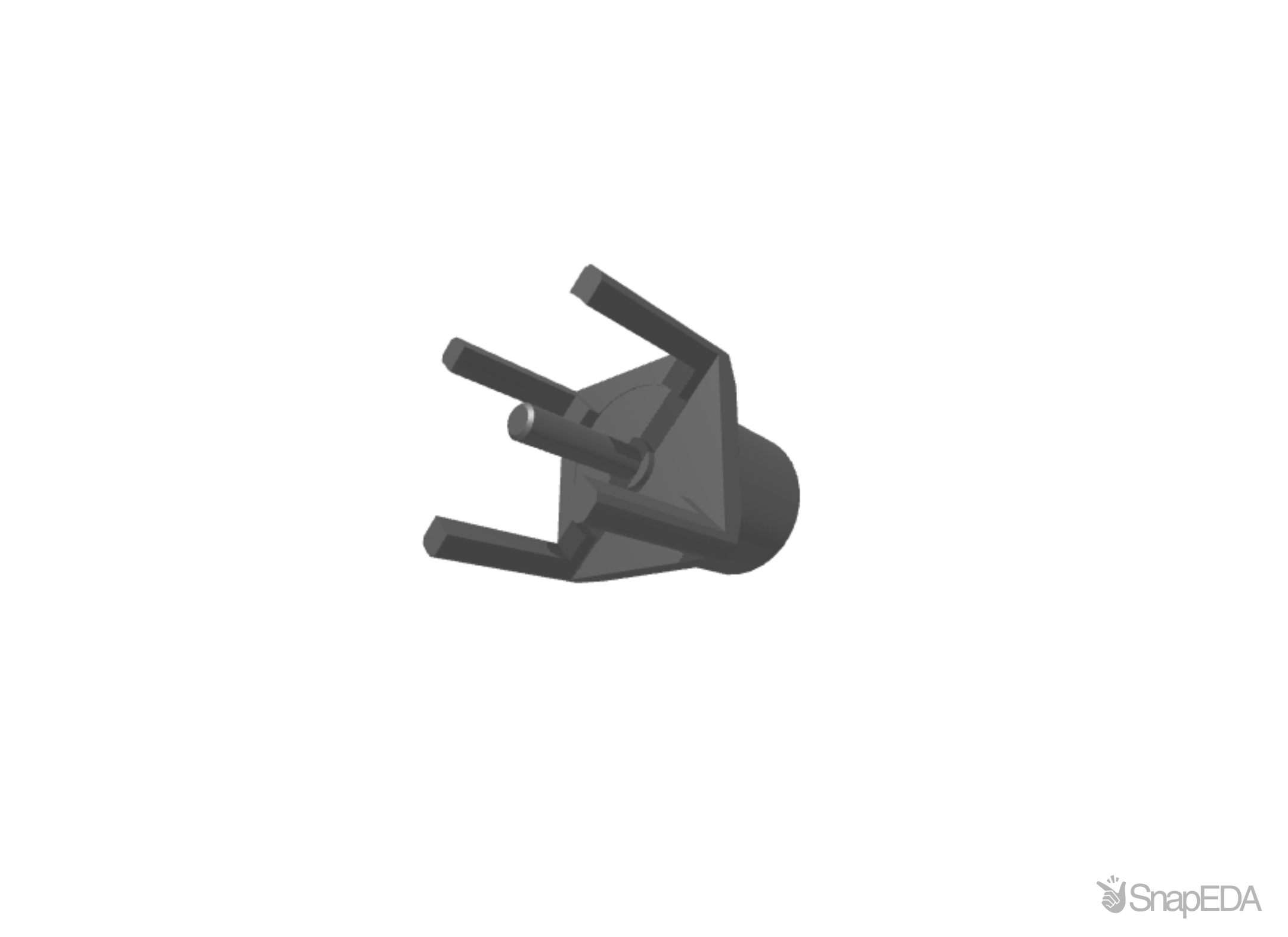

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the R113426000
| Part Name | R113426000 |
| Manufacturer | Radiall |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Body Plating | Gold over Nickel |
| Mounting Type | Through Hole |
| Gender | Female |
| Body Orientation | Straight |
| Coaxial Connector Type | MCX Connector |
| Minimum Operating Temperature | -55 (°C) |
| Termination Method | Solder |
| Operating Frequency | 0 to 6 (GHz) |
| Impedance | 50 (Ω) |
| Contact Plating | Gold over Nickel |
| Contact Material | Beryllium Copper |
| Maximum Operating Temperature | +155 (°C) |
| Mating Type | Slide On |
