R114082000
SMB F STR CR 2.6/50+75 C100 | RADIALL R114082000
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the R114082000 by Radiall and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

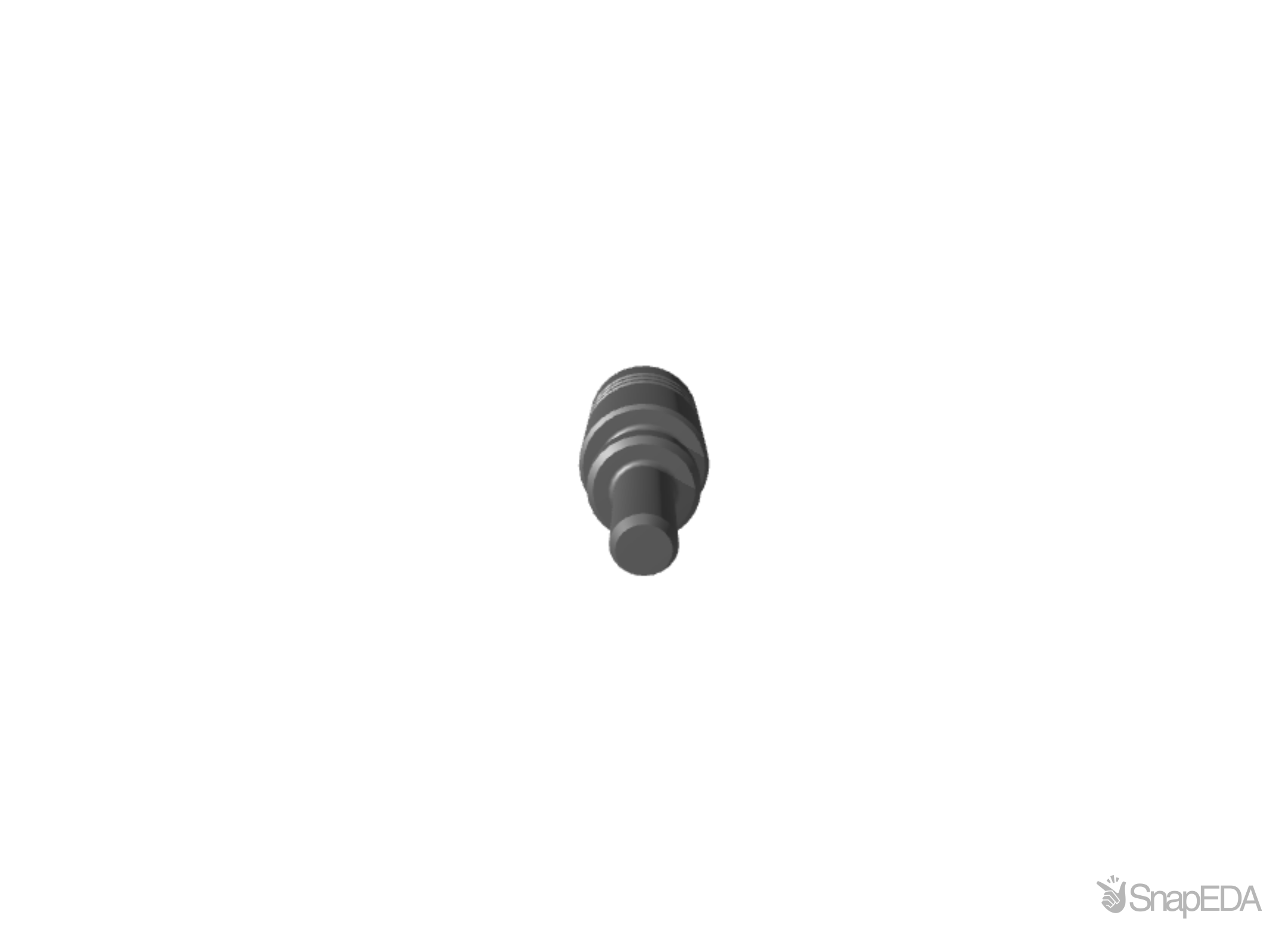

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the R114082000
| Part Name | R114082000 |
| Manufacturer | Radiall |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Body Plating | Gold |
| Mounting Type | Cable Mount |
| Gender | Male |
| Body Orientation | Straight |
| Cable Type | RG179, RG187, RG188, RG316 |
| Coaxial Connector Type | SMB Connector |
| Minimum Operating Temperature | -65 (°C) |
| Termination Method | Crimp |
| Operating Frequency | 0 to 4 (GHz) |
| Impedance | 50 (Ω) |
| Contact Plating | Gold over Nickel |
| Maximum Operating Temperature | +165 (°C) |
| Contact Material | Beryllium Copper |
