R12-100B
DC-DC Converter, 10-14Vin,55-135Vout 50mA | RECOM Power Inc. R12-100B
Availability: Out of Stock
Package Type: CUSTOM
CAD Models: Symbol, Footprint, 3D Model
More Resources
Use this component in your design
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the R12-100B by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

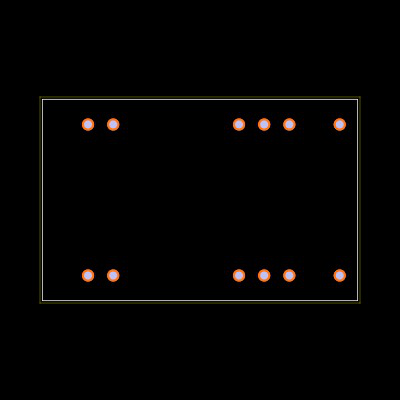

Footprint
No web preview
This Footprint is Available for

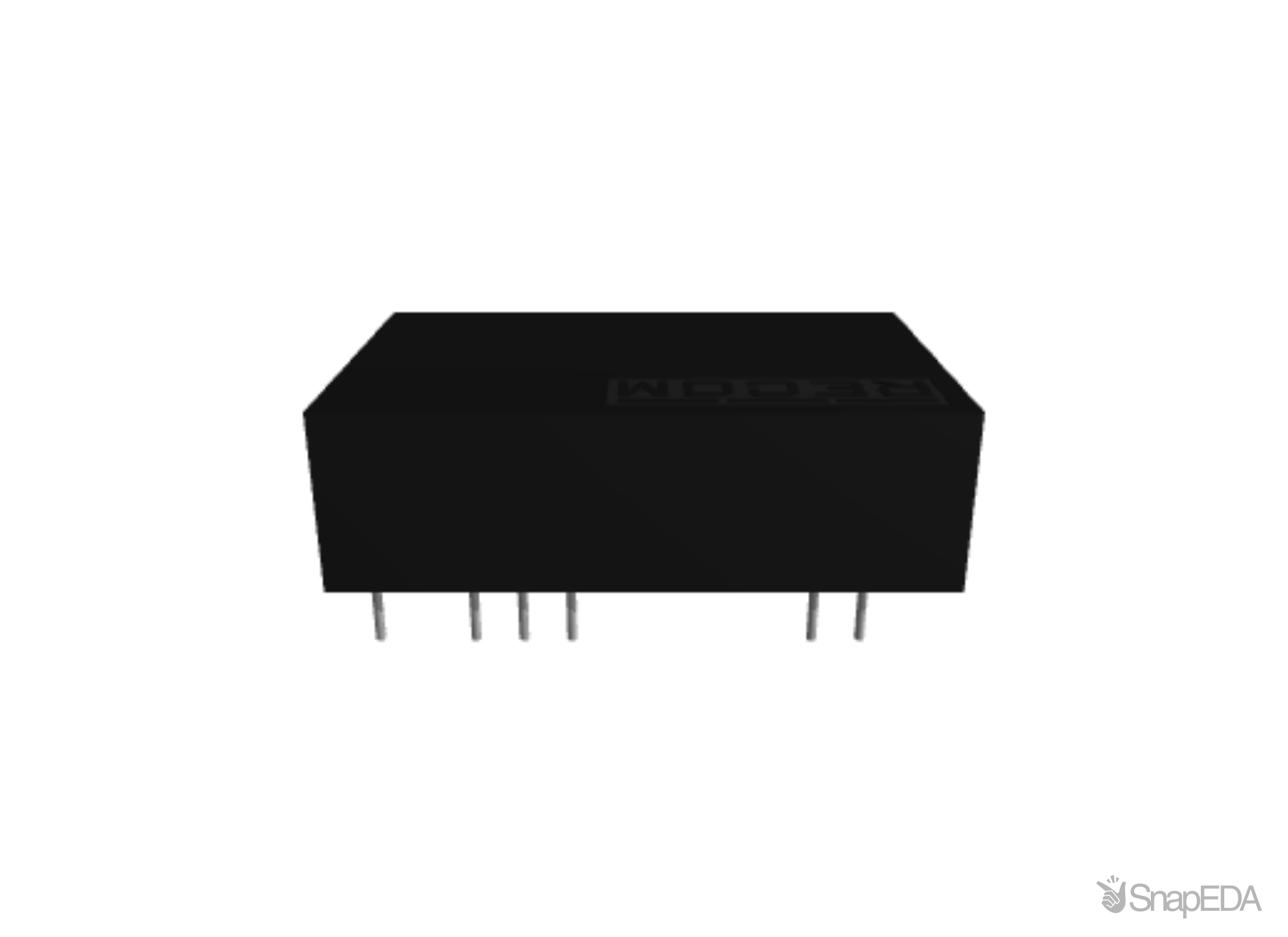

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the R12-100B
| Part Name | R12-100B |
| Manufacturer | Recom Power |
| Category | Power Products |
| Number of Outputs | 1.0 |
| Isolation Voltage (V) | 3000.0 |
| Output Current (A) | 0.05 |
| Case Package | DIP24 |
| Series | Rxx-B |
| Short Circuit Protection | True |
| Packaging Type | Tube |
| high_runner | TRUE |
| Input Voltage (V) | [10.0, 14.0] |
| Lead Free Status | True |
| Product Link | https://recom-power.com/en/products/dc-dc-converters/rec-p-R12-100B.html |
| Power Rating | 5.0 |
| Output Voltage (V) | [50.0, 135.0] |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Depth | 9.4 (mm) |
| Number Of Outputs | 1 |
| Maximum Temperature | +70 (°C) |
| Isolation Voltage (V) | 3 (kV dc) |
| Standards Met | REACH |
| Mounting Type | Through Hole |
| Package | DIP 24 |
| Series | R12 |
| Input Voltage Range (V) | 10 → 14 V dc |
| Isolated | Yes |
| Efficiency | 82 (%) |
| Length | 31.8 (mm) |
| Load Regulation | ±0.5 (%) |
| Minimum Temperature | -40 (°C) |
| Input Voltage Nominal (V) | 12 V dc |
| Power Rating | 5 (W) |
| Output Voltage (V) | 55 → 135 (V dc) |
| Output Current (A) | 50 (mA) |
No issues have been reported for the R12-100B
