R1D-2424/H-R
1W DC/DC-Converter 'ECONOLINE' SMD 3kV unreg
Availability: Out of Stock
Package Type: SMD-10
CAD Models: Symbol, Footprint, 3D Model
More Resources
Use this component in your design
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the R1D-2424/H-R by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

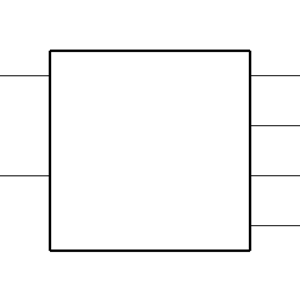

Symbol
No web preview
This Symbol is Available for

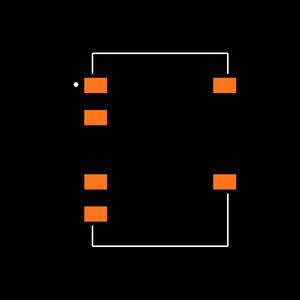

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the R1D-2424/H-R
| Part Name | R1D-2424/H-R |
| Manufacturer | Recom Power |
| Category | Isolated DC/DC Converters |
| Number of Outputs | 2.0 |
| Isolation Voltage (V) | 3000.0 |
| Case Package | SMD 6 Pin |
| Series | R1D |
| Short Circuit Protection | {'is_url': False, 'value': False} |
| Packaging Type | Tape & Reel |
| Lead Free Status | True |
| Output Voltage (V) | [24.0, 24.0] |
| Product Link | https://recom-power.com/en/products/dc-dc-converters/rec-p-R1D-2424!sH-R.html |
| Power Rating | 1.0 |
| Input Voltage (V) | [21.6, 26.4] |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the R1D-2424/H-R by Recom Power from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Richardson RFPD |
|
500 x $7.83
|
Visit Site | |
| Sager |
|
|
Visit Site |
No issues have been reported for the R1D-2424/H-R
