R1S-1212
Recom Iso DC-DC Converter,Vin 10.8 to 13.2V dc,Vout 12V dc,I/O isolation 1kV | RECOM Power Inc. R1S-1212
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
More Resources
Use this component in your design
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the R1S-1212 by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

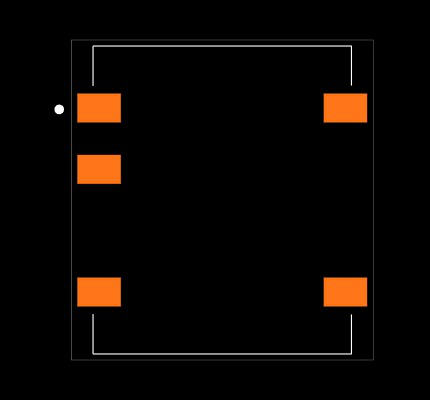

Footprint
No web preview
This Footprint is Available for

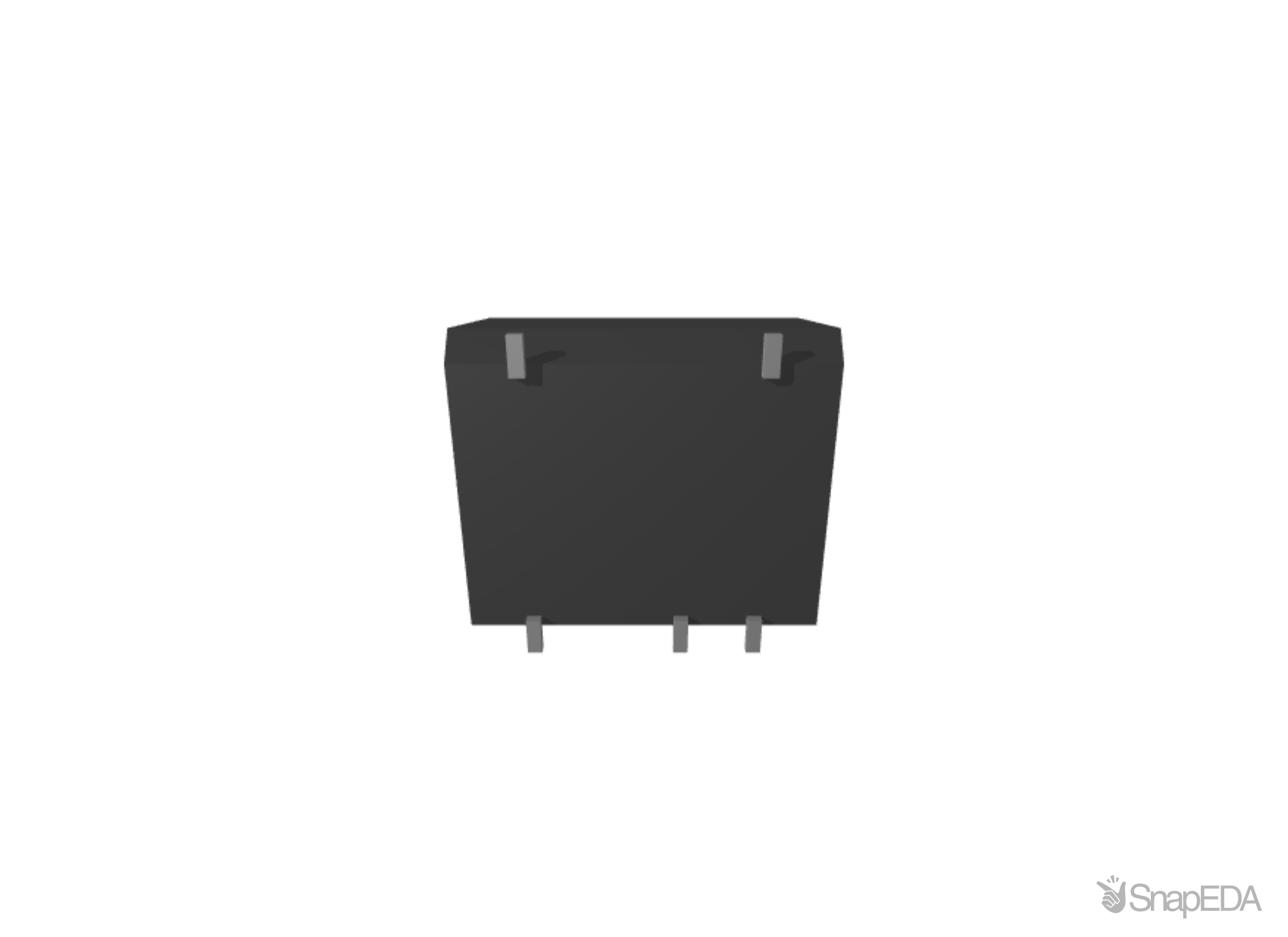

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the R1S-1212
| Part Name | R1S-1212 |
| Manufacturer | Recom Power |
| Category | Power Products |
| Number of Outputs | 1.0 |
| Isolation Voltage (V) | 1000.0 |
| Output Current (A) | 0.084 |
| Case Package | SMD 5 Pin |
| Series | R1S |
| Short Circuit Protection | {'is_url': False, 'value': False} |
| Packaging Type | Tube |
| high_runner | TRUE |
| Input Voltage (V) | [10.8, 13.2] |
| Lead Free Status | True |
| Product Link | https://recom-power.com/en/products/dc-dc-converters/rec-p-R1S-1212.html |
| Power Rating | 1.0 |
| Output Voltage (V) | [12.0, 12.0] |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Depth | 6.7 (mm) |
| Number Of Outputs | 1 |
| Maximum Temperature | +100 (°C) |
| Isolation Voltage (V) | 1 (kV dc) |
| Output Current (A) | 84 (mA) |
| Mounting Type | Surface Mount |
| Package | DIP 8 |
| Series | R1S |
| Input Voltage Range (V) | 10.8 → 13.2 V dc |
| Isolated | Yes |
| Length | 12.75 (mm) |
| Load Regulation | ±6 (%) |
| Minimum Temperature | -40 (°C) |
| Input Voltage Nominal (V) | 12 V dc |
| Power Rating | 1 (W) |
| Output Voltage (V) | 12 (V dc) |
Inventory for the R1S-1212 by Recom Power from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Chip One Stop |
27
|
|
Visit Site | |
| Conrad |
1
|
|
Visit Site | |
| Newark |
|
|
Visit Site | |
| RS UK |
|
|
Visit Site | |
| Richardson RFPD |
|
40 x $5.54
|
Visit Site | |
| Rutronik |
40
|
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| Schukat Electronic |
40
|
|
Visit Site | |
| TME |
1
|
|
Visit Site |
No issues have been reported for the R1S-1212
