R24P21503D
2W DC/DC-Converter 'ECONOLINE' SIP7 6.4kV unreg
Availability: In Stock
Package Type: SIP-7
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the R24P21503D by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

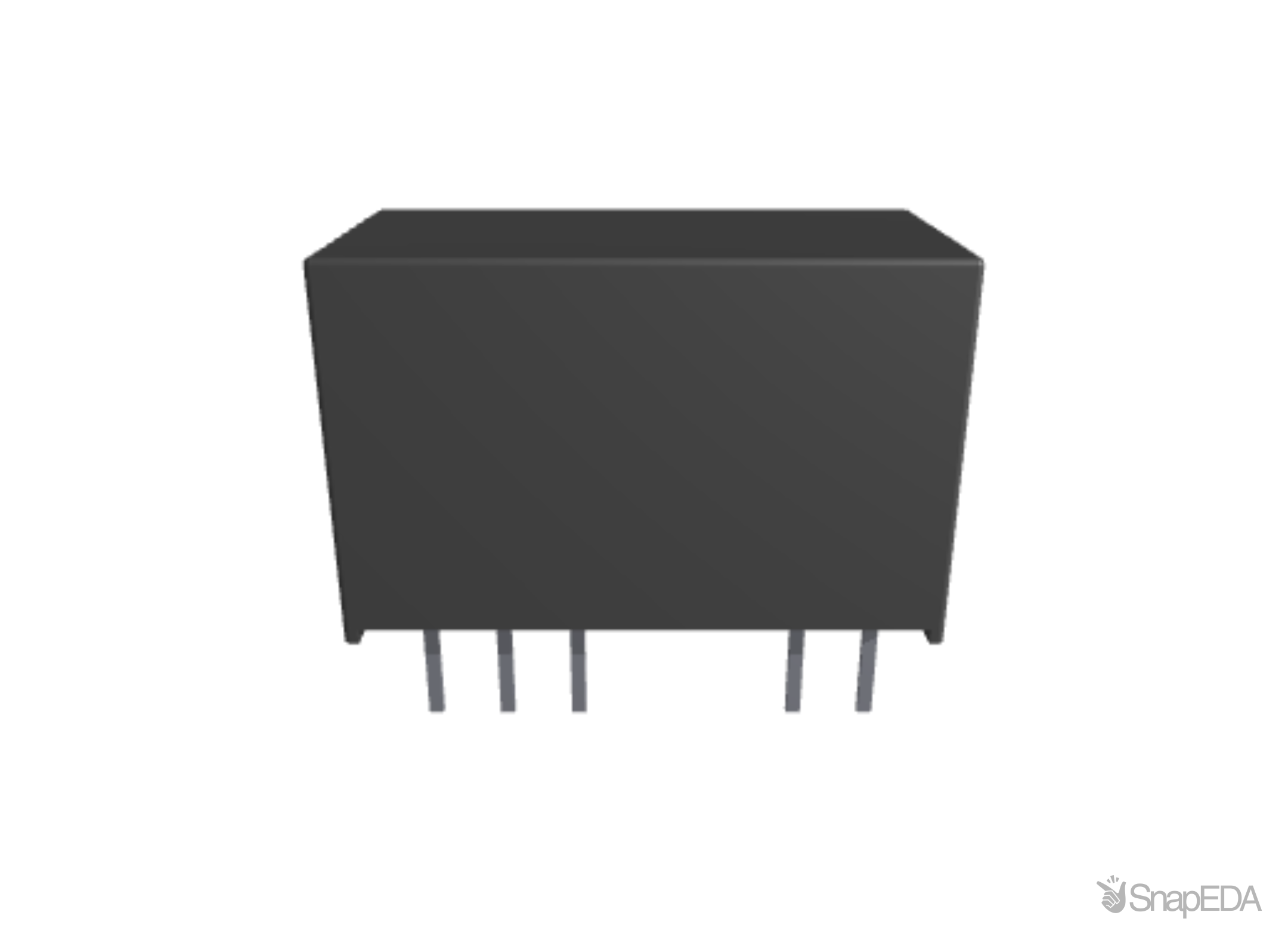

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the R24P21503D
| Part Name | R24P21503D |
| Manufacturer | Recom Power |
| Category | Isolated DC/DC Converters |
| Number of Outputs | 2.0 |
| Isolation Voltage (V) | 6400.0 |
| Case Package | SIP7 |
| Series | RxxP21503 |
| Short Circuit Protection | {u'is_url': False, u'value': False} |
| Packaging Type | Tube |
| high_runner | TRUE |
| Input Voltage (V) | [21.6, 26.4] |
| Lead Free Status | True |
| Product Link | https://recom-power.com/en/products/dc-dc-converters/rec-p-R24P21503D.html |
| Power Rating | 2.0 |
| Output Voltage (V) | [3.0, 15.0] |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Load Regulation | 10 (+15 V dc) (%) |
| Number Of Outputs | 2 |
| Maximum Temperature | +85 (°C) |
| Standards Met | CSA C22.2 No.60950-1-03, EN 60950-1, IEC/EN 606011, MIL-HDBK 217 F, UL 60950-1, UL Approved |
| Mounting Type | Through Hole |
| Package | SIP |
| Series | RP |
| Input Voltage Range (V) | 21.6 → 26.4 V dc |
| Isolated | Yes |
| Width | 7.05 (mm) |
| Depth | 10.2 (mm) |
| Isolation Voltage (V) | 5.2 (kV dc) |
| Length | 19.65 (mm) |
| Minimum Temperature | -40 (°C) |
| Input Voltage Nominal (V) | 24 V dc |
| Power Rating | 1 (W) |
| Output Voltage (V) | -3 V dc, 15 (V dc) |
| Output Current (A) | 66 mA, 303 (mA) |
