R2D-0515
Recom Iso DC-DC Converter,Vin 4.5to5.5VDC,Vout +/-15VDC,I/O isolation 1kV | RECOM Power Inc. R2D-0515
Availability: Out of Stock
Package Type: SMD-10
CAD Models: Symbol, Footprint, 3D Model
More Resources
Use this component in your design
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the R2D-0515 by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

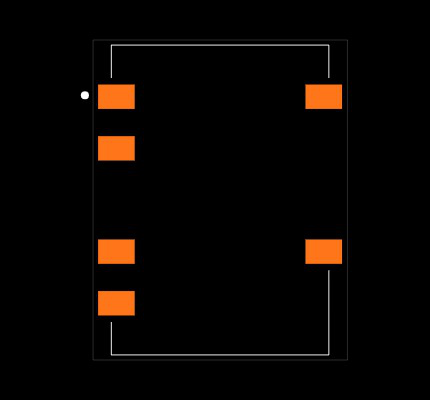

Footprint
No web preview
This Footprint is Available for

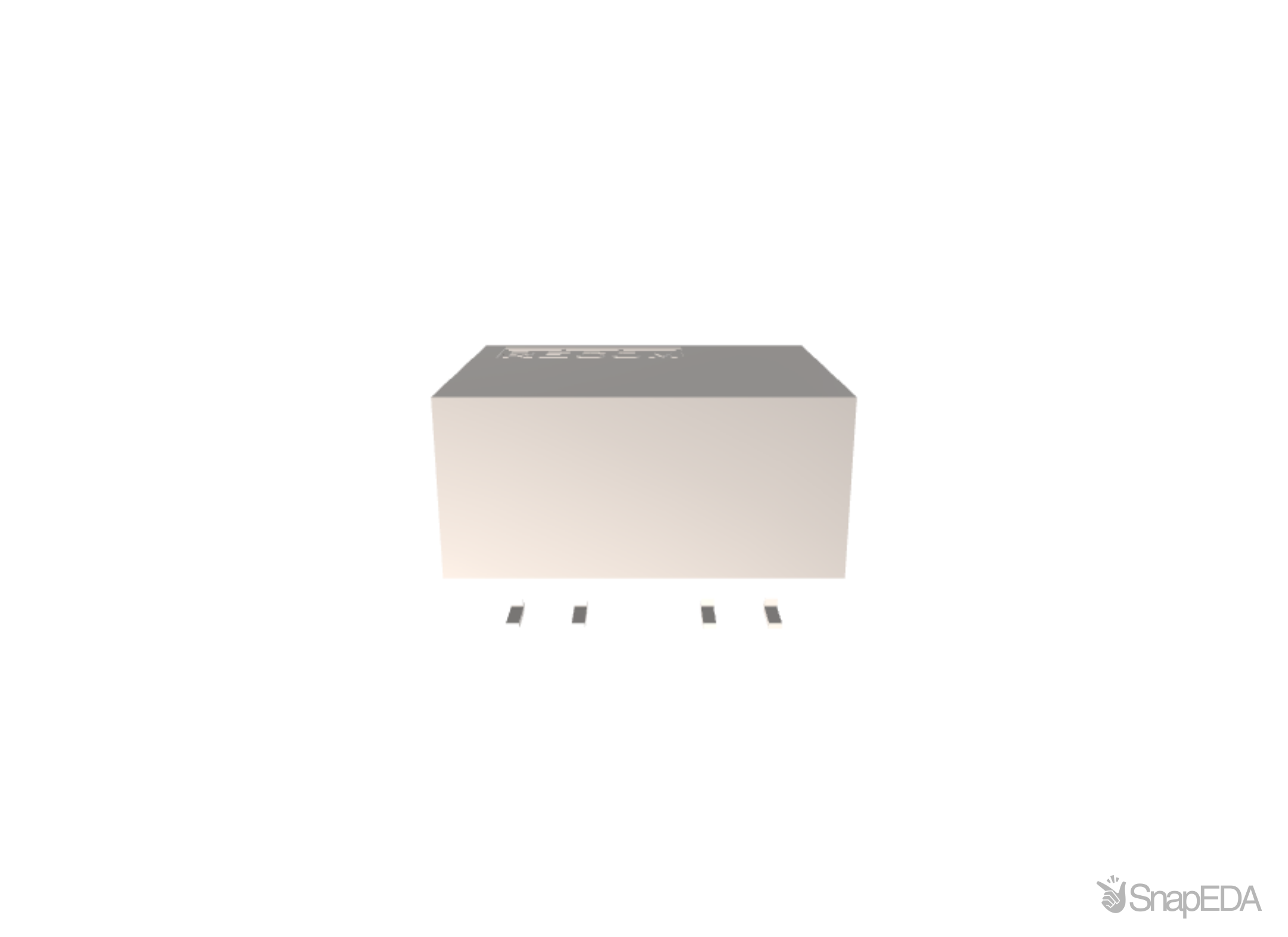

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the R2D-0515
| Part Name | R2D-0515 |
| Manufacturer | Recom Power |
| Category | Power Products |
| Number of Outputs | 2.0 |
| Isolation Voltage (V) | 1000.0 |
| Case Package | SMD 6 Pin |
| Series | R2D |
| Short Circuit Protection | {'is_url': False, 'value': False} |
| Packaging Type | Tube |
| Lead Free Status | True |
| Output Voltage (V) | [15.0, 15.0] |
| Power Rating | 2.0 |
| Input Voltage (V) | [4.5, 5.5] |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Depth | 8.7 (mm) |
| Number Of Outputs | 2 |
| Maximum Temperature | +100 (°C) |
| Isolation Voltage (V) | 1 (kV dc) |
| Output Current (A) | ±66 (mA) |
| Mounting Type | Surface Mount |
| Package | SMD |
| Series | R2D |
| Input Voltage Range (V) | 4.5 → 5.5 V dc |
| Isolated | Yes |
| Length | 15.24 (mm) |
| Load Regulation | ±10 (%) |
| Minimum Temperature | -40 (°C) |
| Input Voltage Nominal (V) | 5 V dc |
| Power Rating | 2 (W) |
| Output Voltage (V) | ±15 (V dc) |
Inventory for the R2D-0515 by Recom Power from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| RS UK |
|
|
Visit Site | |
| Richardson RFPD |
|
33 x $9.07
|
Visit Site | |
| Rutronik |
|
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| TME |
|
|
Visit Site |
No issues have been reported for the R2D-0515
If you experienced any issues with the symbol or footprint, please report it.
