R2S-0524
DC-DC Converter, Isolated Vin 4.5 to 5.5V dc,Vout 24V dc,I/O isolation 1kV | RECOM Power Inc. R2S-0524
Availability: In Stock
Package Type: SMD-8
CAD Models: Symbol, Footprint, 3D Model
More Resources
Use this component in your design
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the R2S-0524 by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

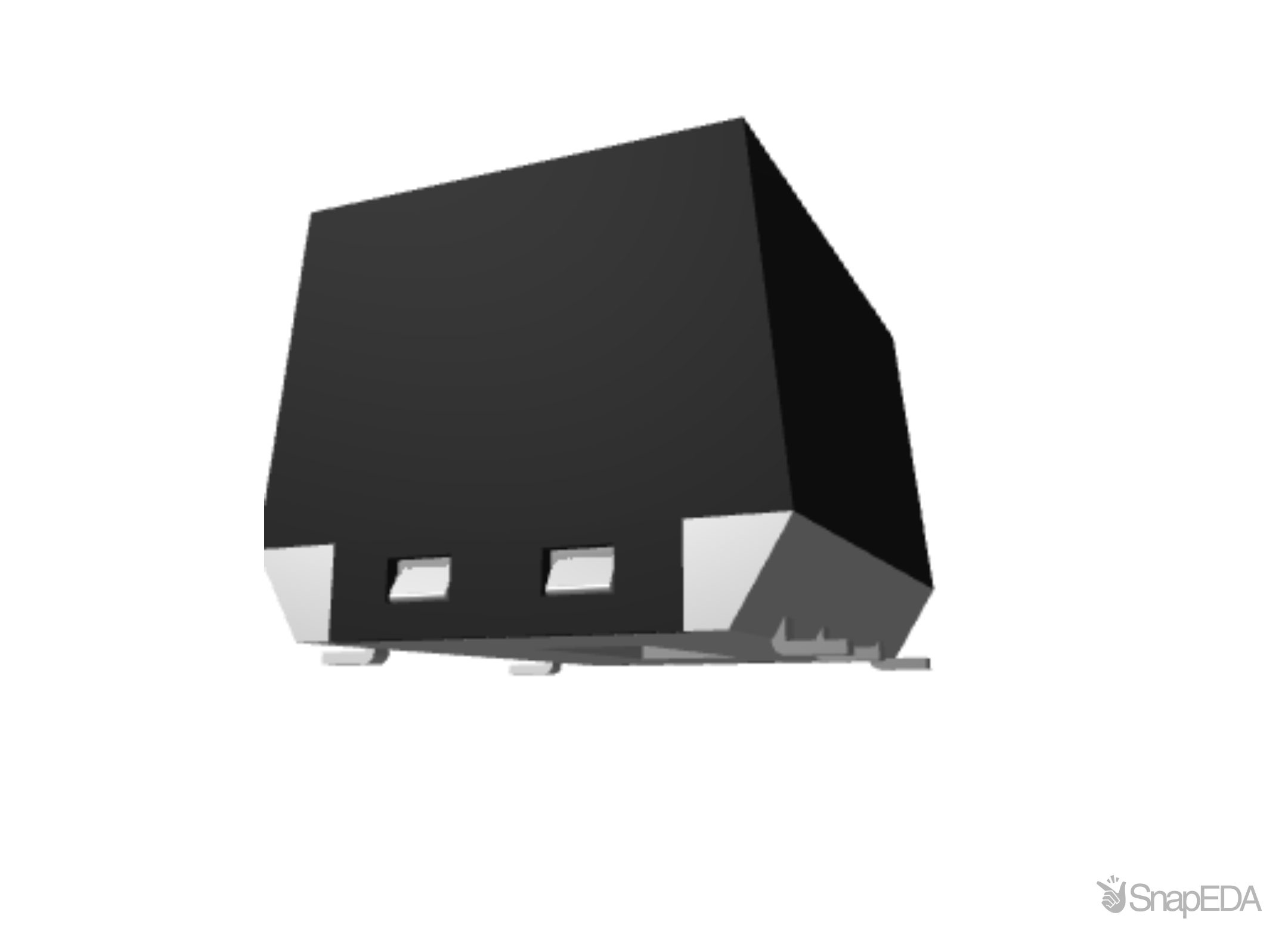

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the R2S-0524
| Part Name | R2S-0524 |
| Manufacturer | Recom Power |
| Category | Power Products |
| Number of Outputs | 1.0 |
| Isolation Voltage (V) | 1000.0 |
| Output Current (A) | 0.083 |
| Case Package | SMD 5 Pin |
| Series | R2S |
| Short Circuit Protection | {'is_url': False, 'value': False} |
| Packaging Type | Tube |
| Lead Free Status | True |
| Output Voltage (V) | [24.0, 24.0] |
| Product Link | https://recom-power.com/en/products/dc-dc-converters/rec-p-R2S-0524.html |
| Power Rating | 2.0 |
| Input Voltage (V) | [4.5, 5.5] |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Depth | 8.7 (mm) |
| Number Of Outputs | 1 |
| Maximum Temperature | +100 (°C) |
| Isolation Voltage (V) | 1 (kV dc) |
| Output Current (A) | 83 (mA) |
| Mounting Type | Surface Mount |
| Package | SMD |
| Series | R2S |
| Input Voltage Range (V) | 4.5 → 5.5 V dc |
| Isolated | Yes |
| Length | 12.75 (mm) |
| Load Regulation | ±10 (%) |
| Minimum Temperature | -40 (°C) |
| Input Voltage Nominal (V) | 5 V dc |
| Power Rating | 2 (W) |
| Output Voltage (V) | 24 (V dc) |
Inventory for the R2S-0524 by Recom Power from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Chip One Stop |
48
|
1 x $7.83
|
Visit Site | |
| Conrad |
40
|
|
Visit Site | |
| Newark |
|
|
Visit Site | |
| RS UK |
56
|
|
Visit Site | |
| Richardson RFPD |
|
39 x $8.86
|
Visit Site | |
| Rutronik |
|
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| Schukat Electronic |
40
|
|
Visit Site | |
| TME |
|
|
Visit Site |
No issues have been reported for the R2S-0524
