R420-1.8/PL-R

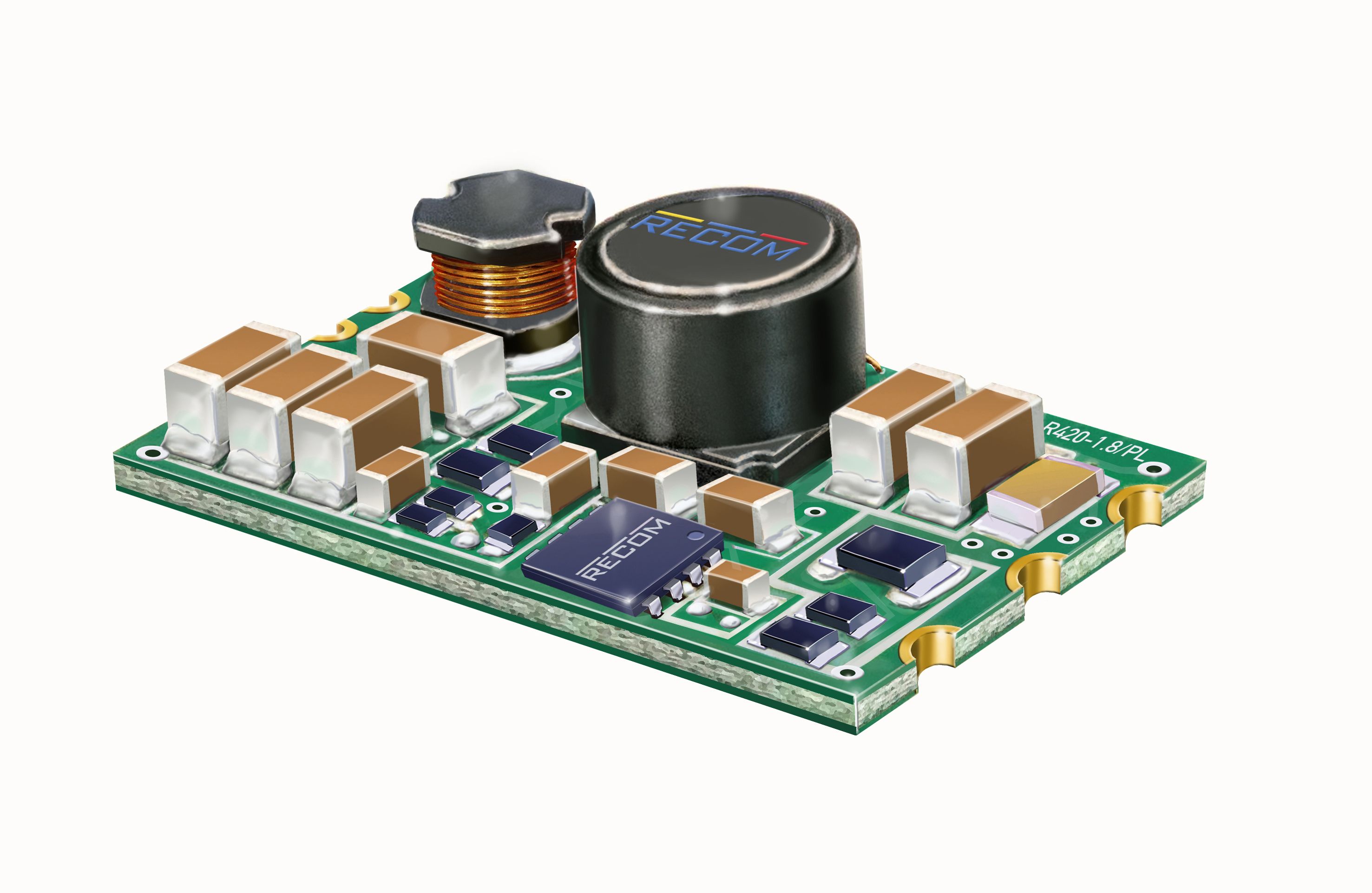

10mA DC/DC-Converter 'INNOLINE' SMD OF reg
Availability: Out of Stock
Package Type: SMD-6
CAD Models: Symbol, Footprint, 3D Model
More Resources
Use this component in your design
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the R420-1.8/PL-R by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

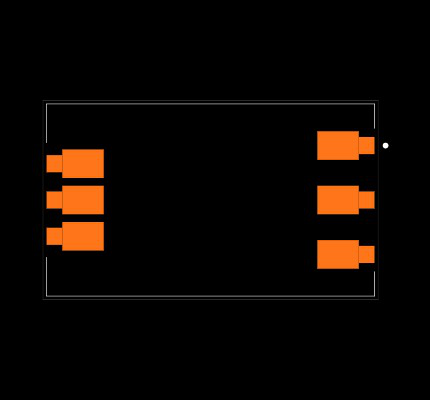

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the R420-1.8/PL-R
| Part Name | R420-1.8/PL-R |
| Manufacturer | Recom Power |
| Category | Switching Regulators |
| Number of Outputs | 1.0 |
| Isolation Voltage (V) | {'is_url': False, 'value': 0.0} |
| Output Current (A) | 0.01 |
| Case Package | open Frame |
| Series | R420/PL |
| Short Circuit Protection | True |
| Packaging Type | Tape & Reel |
| Lead Free Status | True |
| Output Voltage (V) | [1.8, 5.0] |
| Product Link | https://recom-power.com/en/products/switching-regulators/rec-p-R420-1.8!sPL-R.html |
| Input Voltage (V) | [10.0, 36.0] |
| RoHS | True |
| Life Cycle Status | Obsolete |
