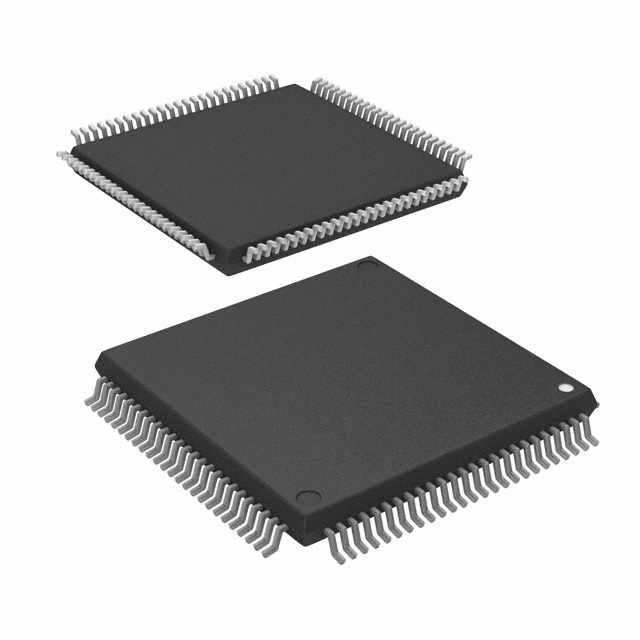

R5F562TAADFP#V1
RX series Microcontroller IC 32-Bit Single-Core 100MHz 256KB (256K x 8) FLASH 100-LFQFP (14x14)
Availability: In Stock
Package Type: LQFP-100
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the R5F562TAADFP#V1 by Renesas and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

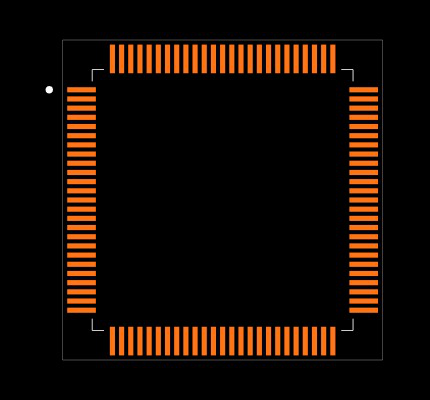

Footprint
No web preview
This Footprint is Available for

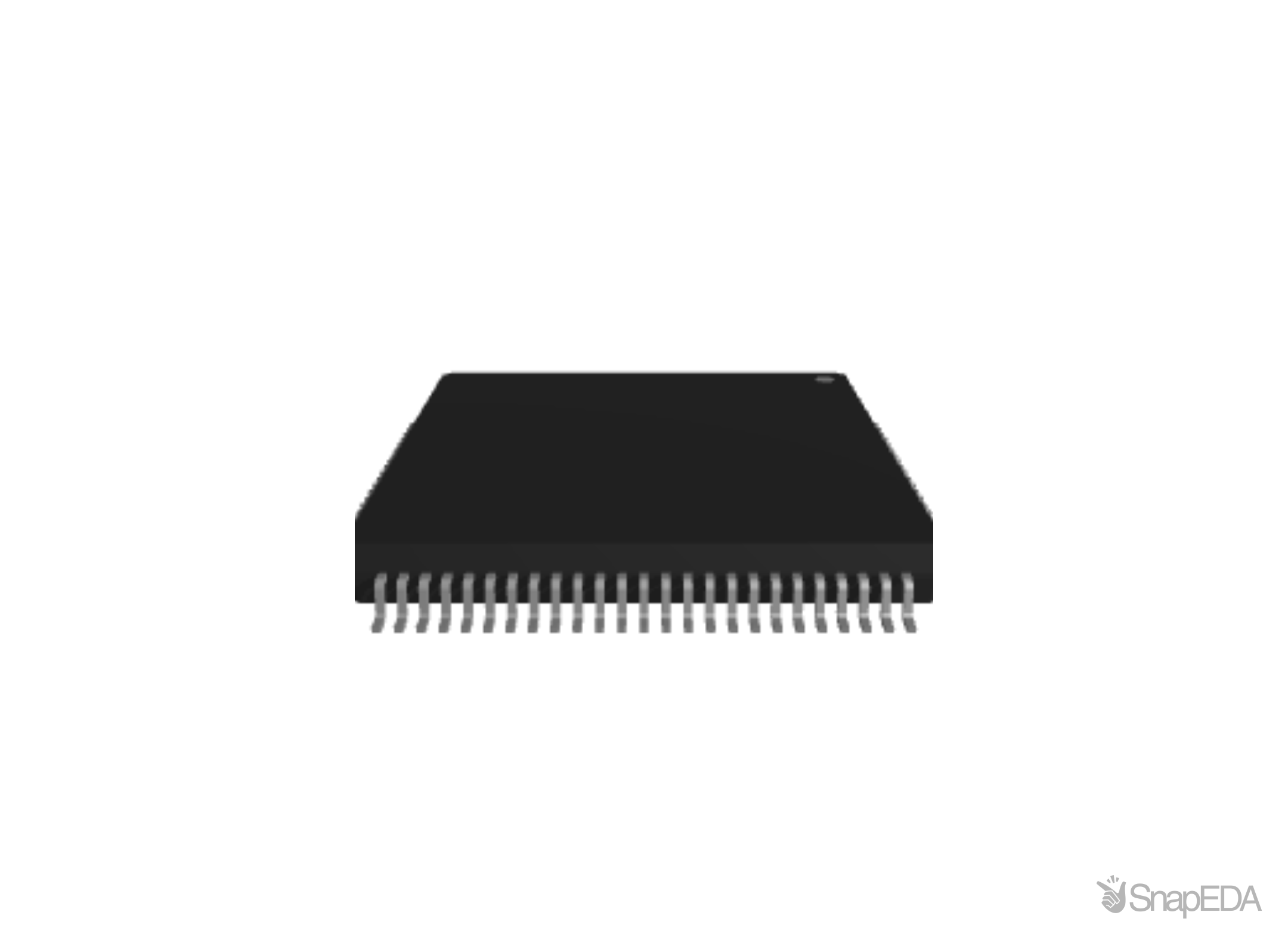

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the R5F562TAADFP#V1
| Part Name | R5F562TAADFP#V1 |
| Manufacturer | Renesas |
| RoHS | True |
| Life Cycle Status | Not Recommended for New Designs |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 14.1 x 14.1 x 1.4 (mm) |
| Number Of Ethernet Channels | 0 |
| Width | 14.1 (mm) |
| Number Of Pci Channels | 0 |
| Number Of Can Channels | 1 |
| Program Memory Size | 256 kB |
| Number Of Spi Channels | 1 |
| Data Bus Width | 32 (bit) |
| Instruction Set Architecture | CISC Harvard |
| Program Memory Type | Flash |
| Package Type | LQFP |
| Adcs | 20 x 10/12 bit |
| Number Of Pwm Units | 4 x 16 bit |
| Number Of Adc Units | 2 |
| Maximum Operating Temperature | +85 °C |
| Maximum Frequency | 100 (MHz) |
| Family Name | RX622T |
| Device Core | RX |
| Length | 14.1 (mm) |
| Ram Size | 16 kB |
| Pin Count | 100 |
| Mounting Type | Surface Mount |
| Number Of I2C Channels | 1 |
| Height | 1.4 (mm) |
| Typical Operating Supply Voltage (V) | 4 → 5.5 V |
| Maximum Number Of Ethernet Channels | 0 |
| Minimum Operating Temperature | -40 °C |
| Number Of Uart Channels | 3 |
Inventory for the R5F562TAADFP#V1 by Renesas from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
59
|
|
Visit Site | |
|
★ Featured
|
17,105
|
|
Visit Site | |
|
★ Featured
|
3,076
|
32 x $9.42
|
Visit Site | |
| Farnell UK |
87
|
|
Visit Site | |
| Newark |
87
|
|
Visit Site | |
| RS UK |
191
|
|
Visit Site | |
| element14 Singapore |
87
|
|
Visit Site |
No issues have been reported for the R5F562TAADFP#V1
