RAC01-05SC
1W AC/DC-Converter 'POWERLINE' 3kV reg
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
More Resources
Use this component in your design
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RAC01-05SC by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

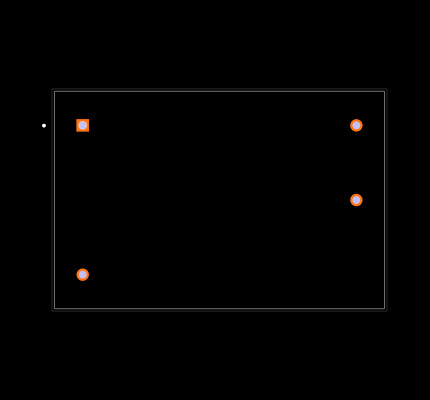

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RAC01-05SC
| Part Name | RAC01-05SC |
| Manufacturer | Recom Power |
| Category | AC/DC Power Supplies |
| Number of Outputs | 1.0 |
| Isolation Voltage (V) | 3000.0 |
| Output Current (A) | 0.2 |
| Case Package | Standard |
| Series | RAC01-C |
| Short Circuit Protection | True |
| Packaging Type | Tube |
| high_runner | TRUE |
| Input Voltage (V) | [80.0, 264.0] |
| Lead Free Status | True |
| Product Link | https://recom-power.com/en/products/ac-dc-power-supplies/rec-p-RAC01-05SC.html |
| Power Rating | 1.0 |
| Output Voltage (V) | [5.0, 5.0] |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Outputs | 1 |
| Maximum Temperature | +85 (°C) |
| Mounting Type | PCB Mount |
| Weight | 25 (g) |
| Width | 22.2 (mm) |
| Series | RAC01-C |
| Length | 33.7 (mm) |
| Input Voltage (V) | 80 → 277 (V ac) |
| Efficiency | 68 (%) |
| Depth | 17.75 (mm) |
| Output Voltage (V) | 5 (V dc) |
| Package Type | Encapsulated |
| Minimum Temperature | -25 (°C) |
| Power Rating | 1 (W) |
| Output Current (A) | 200 (mA) |
Inventory for the RAC01-05SC by Recom Power from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Chip One Stop |
853
|
|
Visit Site | |
| Farnell UK |
|
1 x $15.92
|
Visit Site | |
| RS UK |
29
|
|
Visit Site | |
| Schukat Electronic |
10
|
|
Visit Site | |
| TME |
|
|
Visit Site | |
| element14 Singapore |
|
|
Visit Site |
No issues have been reported for the RAC01-05SC
If you experienced any issues with the symbol or footprint, please report it.
