RAC04-24SA
Power Supply,AC-DC,24V,0.167A,90-264V In,Enclosed,PCB Thru-Hole,4W,RAC04 Series | RECOM Power Inc. RAC04-24SA
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
More Resources
Use this component in your design
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RAC04-24SA by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

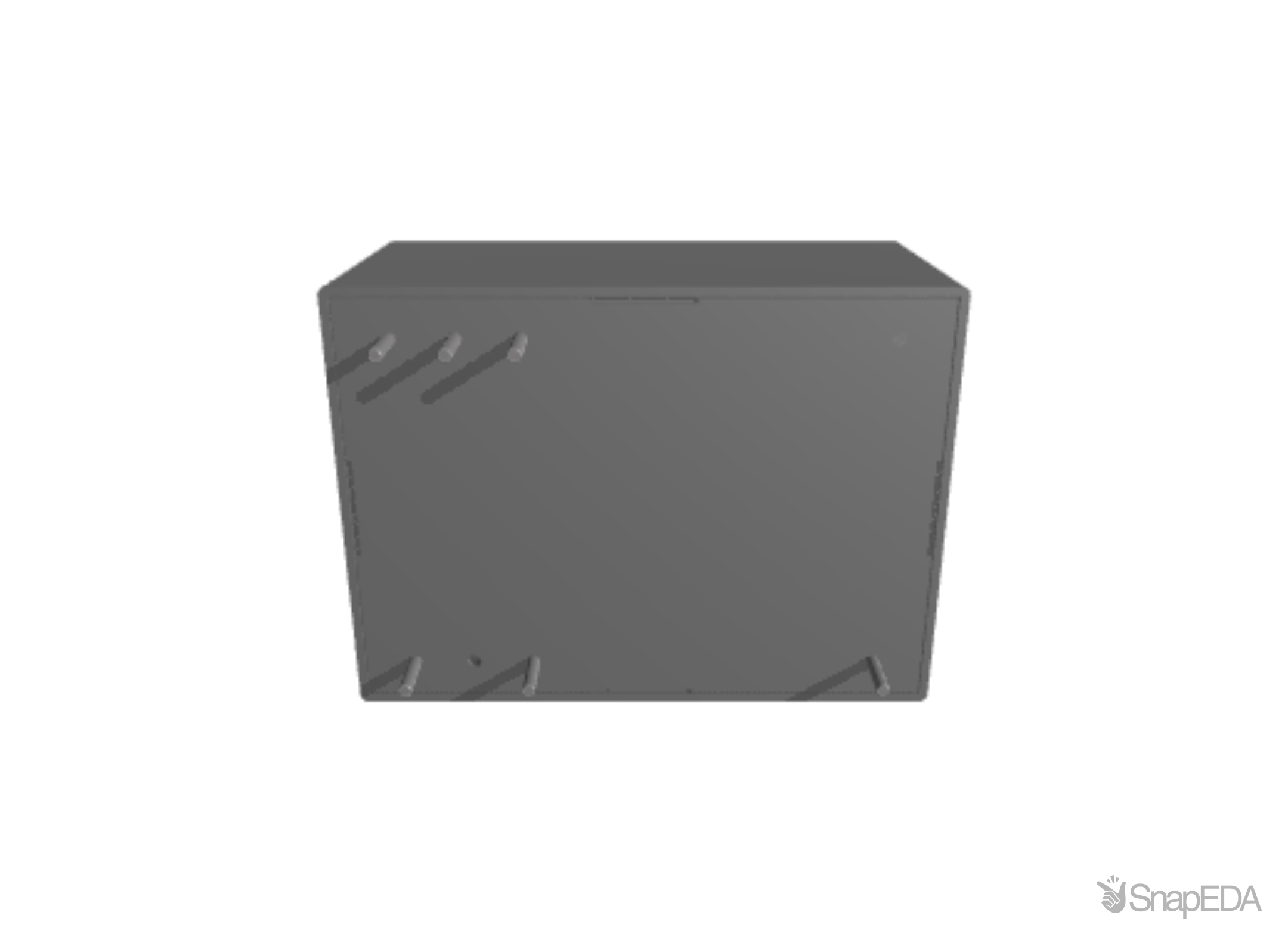

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RAC04-24SA
| Part Name | RAC04-24SA |
| Manufacturer | Recom Power |
| Category | Power Products |
| Number of Outputs | 1.0 |
| Isolation Voltage (V) | 3000.0 |
| Output Current (A) | 0.167 |
| Case Package | Standard |
| Series | RAC04-A |
| Short Circuit Protection | True |
| Packaging Type | Cardboard Box |
| Lead Free Status | True |
| Output Voltage (V) | [24.0, 24.0] |
| Product Link | https://recom-power.com/en/products/ac-dc-power-supplies/rec-p-RAC04-24SA.html |
| Power Rating | 4.0 |
| Input Voltage (V) | [90.0, 264.0] |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the RAC04-24SA
If you experienced any issues with the symbol or footprint, please report it.
