RAC04-24SK/277
Enclosed AC DC Converters 1 Uitgang 24V - - - 167mA 80 ~ 305 VAC, 110 ~ 390 VDC Input
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
More Resources
Use this component in your design
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RAC04-24SK/277 by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

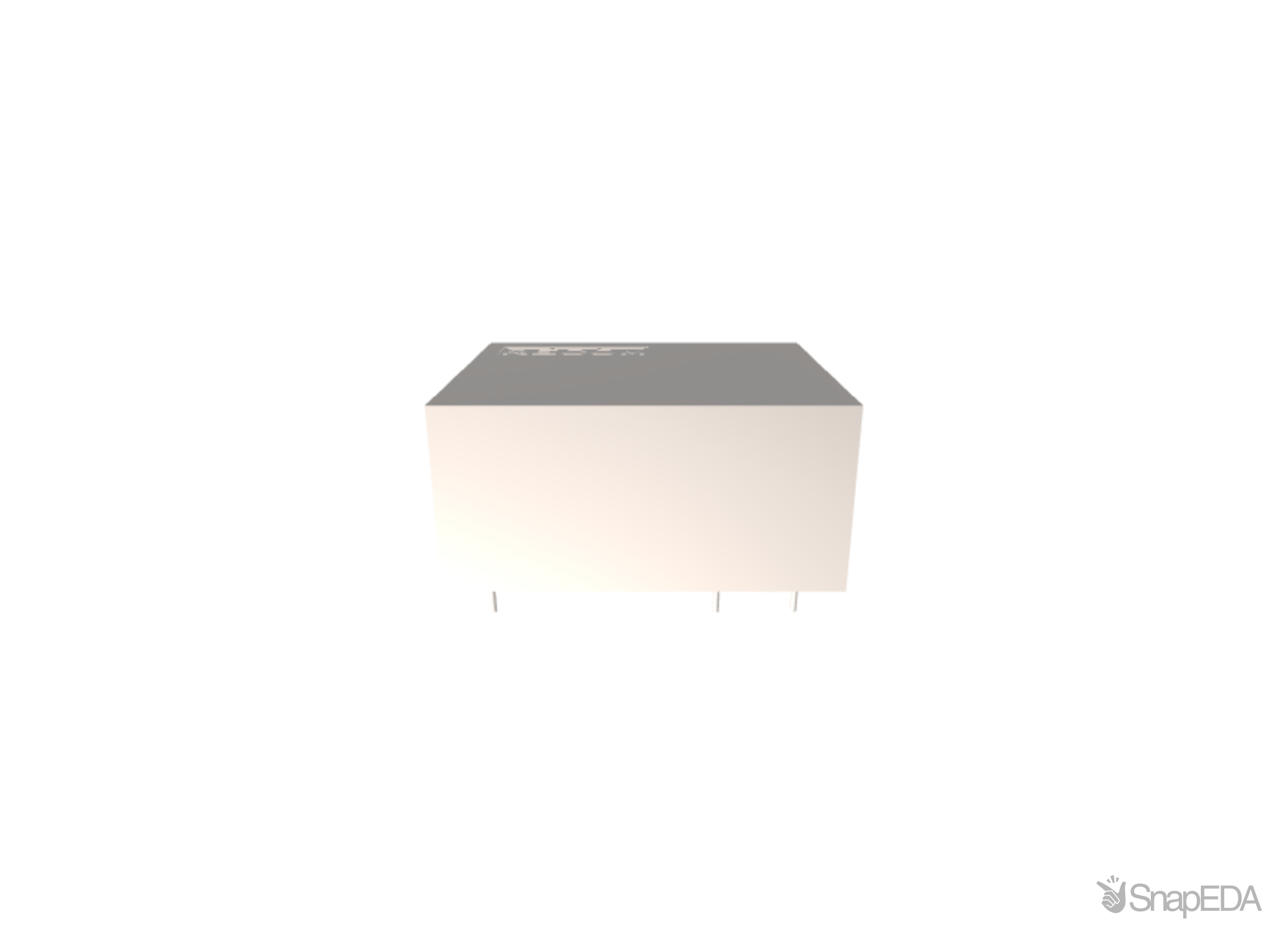

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RAC04-24SK/277
| Part Name | RAC04-24SK/277 |
| Manufacturer | Recom Power |
| Category | AC/DC Power Supplies |
| Case Package | Standard |
| Series | RAC04-K/277 |
| high_runner | TRUE |
| Product Link | https://recom-power.com/en/products/ac-dc-power-supplies/rec-p-RAC04-24SK!s277.html |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Outputs | 1 |
| Maximum Temperature | +90 (°C) |
| Mounting Type | PCB Mount |
| Weight | 30 (g) |
| Width | 27.2 (mm) |
| Series | RAC04‿SK/277 |
| Length | 36.7 (mm) |
| Input Voltage (V) | 80 → 305 (V ac) |
| Efficiency | 0.8 |
| Depth | 17.4 (mm) |
| Output Voltage (V) | 24 (V dc) |
| Package Type | Encapsulated |
| Minimum Temperature | -40 (°C) |
| Power Rating | 4 (W) |
| Output Current (A) | 167 (mA) |
No issues have been reported for the RAC04-24SK/277
If you experienced any issues with the symbol or footprint, please report it.
