RAC10-24SK/277
AC-DC, Converter, 2"x1" 4kV reg, Single Out, 10W, 24V Out, RAC10-K/277 Serie | RECOM Power Inc. RAC10-24SK/277
Availability: Out of Stock
Package Type: DIP-4
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RAC10-24SK/277 by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

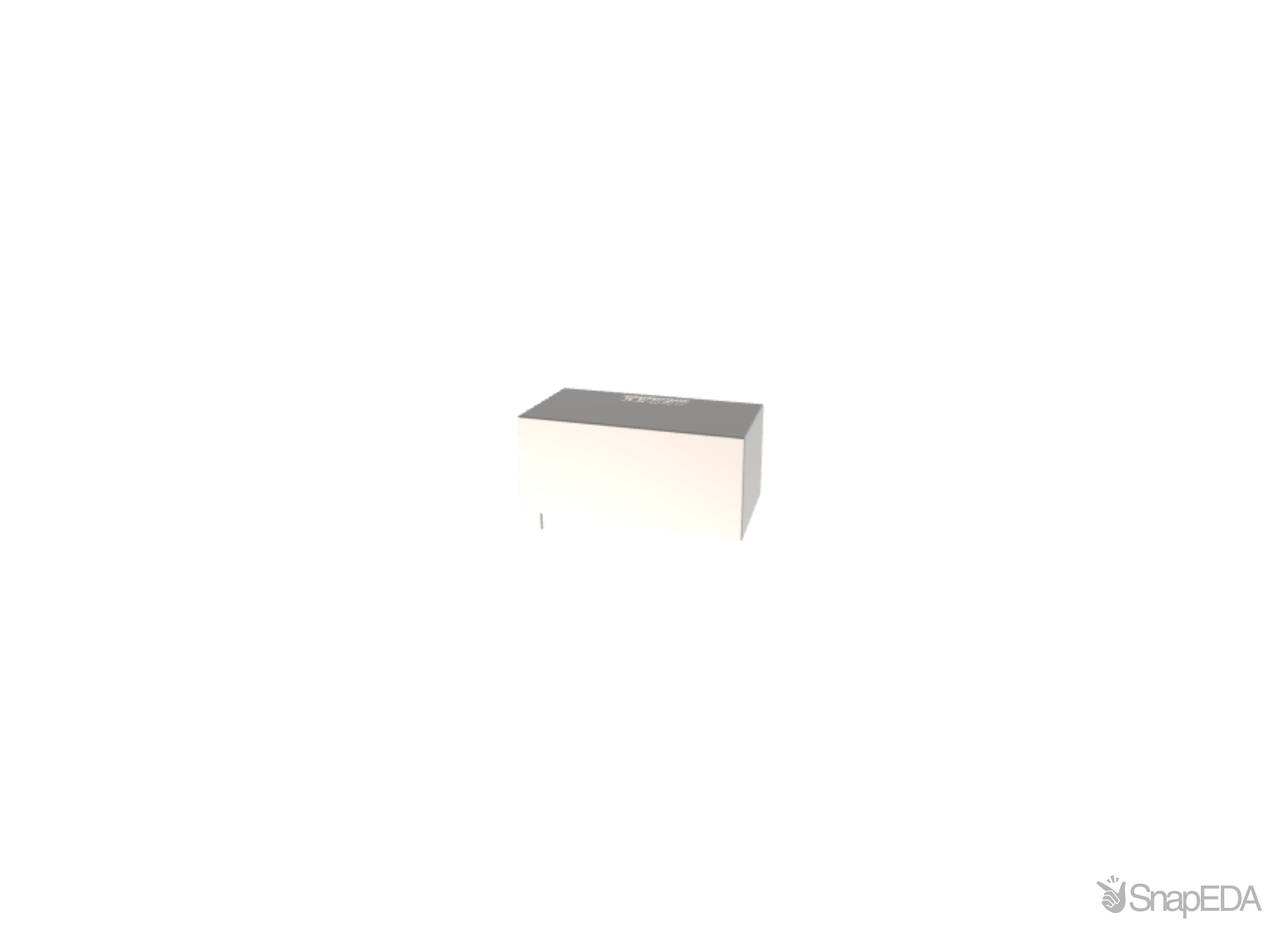

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RAC10-24SK/277
| Part Name | RAC10-24SK/277 |
| Manufacturer | Recom Power |
| Category | Electronic Components |
| Number of Outputs | 1.0 |
| Isolation Voltage (V) | 4000.0 |
| Output Current (A) | 0.42 |
| Case Package | 2"x1" |
| Series | RAC10-K/277 |
| Short Circuit Protection | True |
| Packaging Type | Tube |
| Lead Free Status | True |
| Input Voltage (V) | [85.0, 305.0] |
| high_runner | TRUE |
| Product Link | https://recom-power.com/en/products/ac-dc-power-supplies/rec-p-RAC10-24SK!s277.html |
| Power Rating | 10.0 |
| Output Voltage (V) | [24.0, 24.0] |
| RoHS | True |
