RACD06-350
Power Supply,AC-DC,24V,0.35A,90-264V In,Enclosed,LED Driver,8.4W,RACD06 Series | RECOM Power Inc. RACD06-350
Availability: In Stock
More Resources
Use this component in your design
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RACD06-350 by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

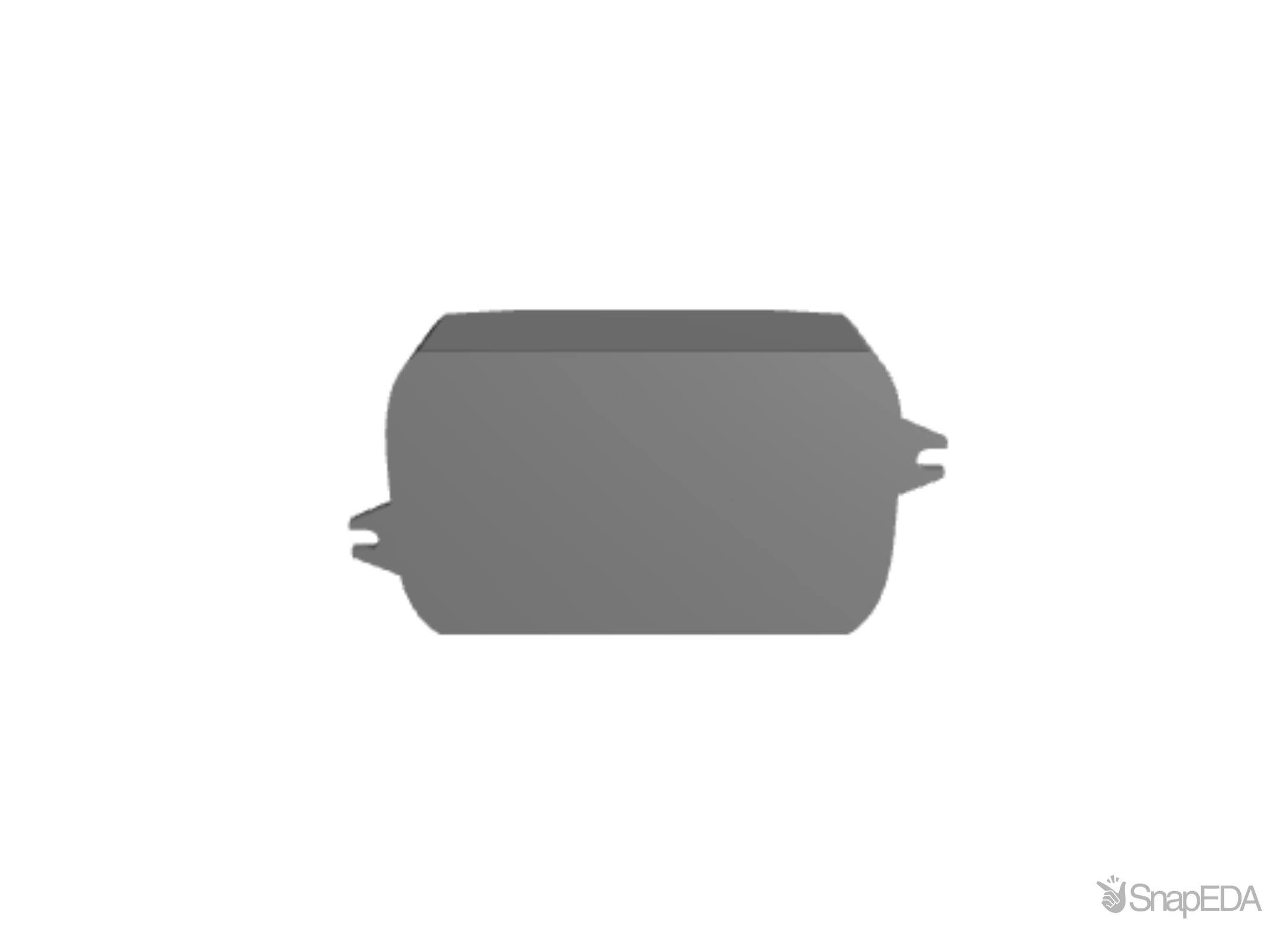

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RACD06-350
| Part Name | RACD06-350 |
| Manufacturer | Recom Power |
| Category | Power Products |
| Number of Outputs | 1.0 |
| Isolation Voltage (V) | 3750.0 |
| Output Current (A) | 0.35 |
| Case Package | Standard |
| Series | RACD06 |
| Short Circuit Protection | True |
| Packaging Type | Cardboard Box |
| Lead Free Status | True |
| Output Voltage (V) | [2.5, 24.0] |
| high_runner | TRUE |
| Product Link | https://recom-power.com/en/products/led-driver/led-driver-ac-dc/rec-p-RACD06-350.html |
| Power Rating | 6.0 |
| Input Voltage (V) | [90.0, 264.0] |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Outputs | 1 |
| Led Driver Type | LED Driver |
| Current Rating (A) | 0 → 350 (mA) |
| Standards Met | CB, CE, EN 55015, EN 61000-3-2 Class C, EN 61000-3-3, EN 61000-4-11 Criteria B, EN 61000-4-11 Criteria C, EN 61000-4-2 Criteria B, EN 61000-4-3 Criteria A, EN 61000-4-4 Criteria B, EN 61000-4-5 Criteria C, EN 61000-4-6 Criteria A, EN 61347-1, EN 61347-2-13, EN 61493, EN 61547, ENEC, ERP Compliant, IEC 61347-1, IEC 61347-2-13, IEC/EN 62384 |
| Output Current (A) | 350 (mA) |
| Ip Rating | IP20 |
| Series | RACD06-LP |
| Voltage Rating (V) | 264 (V ac) |
| Primary Type | AC-DC |
| Ac Or Dc Input Voltage (V) | ac |
| Maximum Output Power | 6 (W) |
| Dimmable | No |
| Output Voltage (V) | 2 → 18 (V dc) |
| Operation | Constant Current |
| Configuration | Enclosed |
| Input Voltage (V) | 198 → 264 V ac |
