RACM100-48S

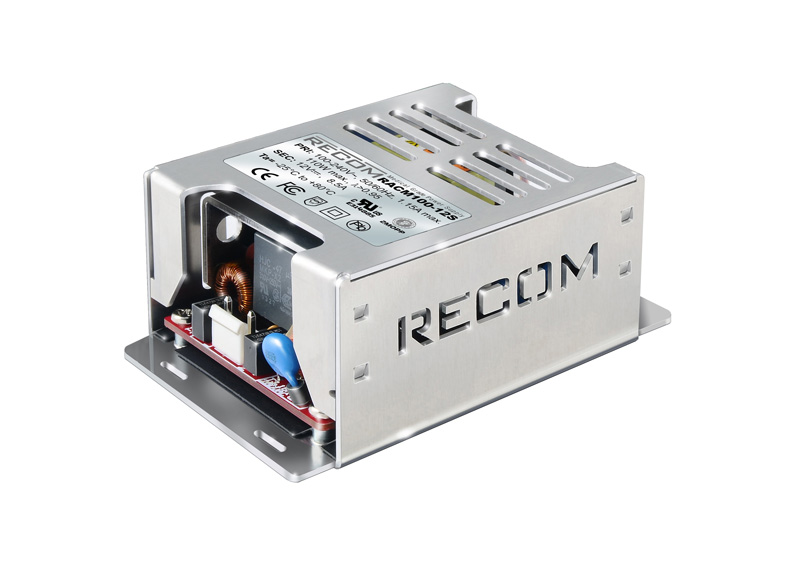

100W AC/DC-Converter 'MEDLINE' 4kV reg
Availability: In Stock
More Resources
Use this component in your design
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RACM100-48S by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RACM100-48S
| Part Name | RACM100-48S |
| Manufacturer | Recom Power |
| Category | AC/DC Power Supplies |
| Number of Outputs | 1.0 |
| Isolation Voltage (V) | 4000.0 |
| Output Current (A) | 2.09 |
| Case Package | enclosed 3"x2" |
| Series | RACM100 |
| Short Circuit Protection | True |
| Packaging Type | Cardboard Box |
| Lead Free Status | True |
| Output Voltage (V) | [43.2, 52.8] |
| Product Link | https://recom-power.com/en/products/ac-dc-power-supplies/rec-p-RACM100-48S.html |
| Power Rating | 100.0 |
| Input Voltage (V) | [85.0, 264.0] |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Outputs | 1 |
| Maximum Temperature | +85 (°C) |
| Mounting Type | Chassis Mount |
| Weight | 210 (g) |
| Series | RACM100 |
| Depth | 39.2 (mm) |
| Width | 62 (mm) |
| Length | 91.4 (mm) |
| Input Voltage (V) | 85 → 264 (V ac) |
| Package Type | Enclosed |
| Output Voltage (V) | 48 (V dc) |
| Minimum Temperature | -25 (°C) |
| Power Rating | 100 (W) |
| Output Current (A) | 2.09 (A) |
| Medical Approved | Yes |
