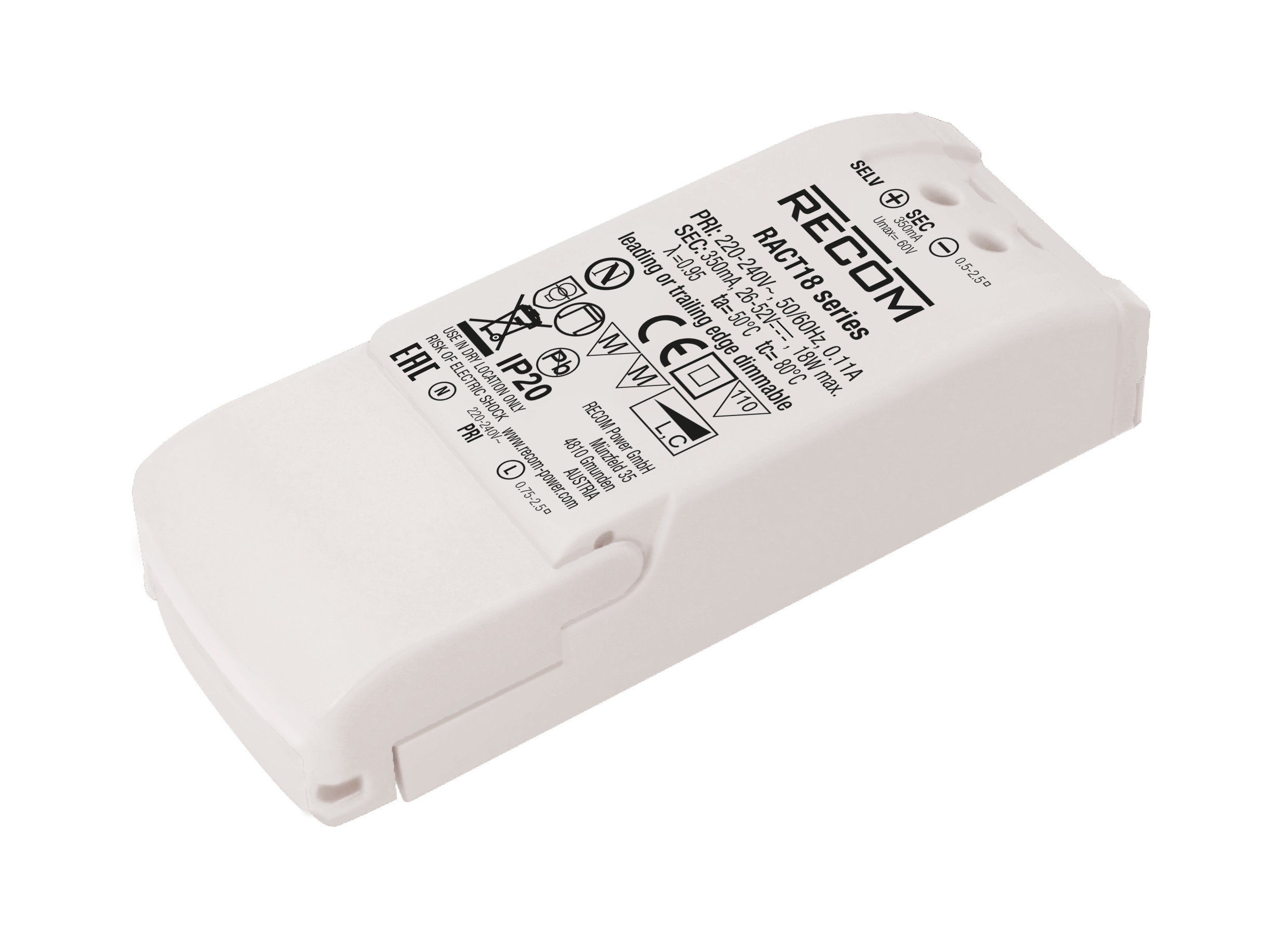

RACT18-350
18W AC/DC LED Power Supply 'LIGHTLINE' white cover
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RACT18-350 by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RACT18-350
| Part Name | RACT18-350 |
| Manufacturer | Recom Power |
| Category | AC/DC LED Drivers |
| Number of Outputs | 1.0 |
| Isolation Voltage (V) | 3750.0 |
| Output Current (A) | 0.35 |
| Case Package | Standard |
| Series | RACT18 |
| Short Circuit Protection | True |
| Packaging Type | Cardboard Box |
| Lead Free Status | True |
| Input Voltage (V) | [198.0, 264.0] |
| Product Link | https://recom-power.com/en/products/led-driver/led-driver-ac-dc/rec-p-RACT18-350.html |
| Power Rating | 18.0 |
| Output Voltage (V) | [26.0, 52.0] |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Outputs | 1 |
| Led Driver Type | LED Driver |
| Dimming Operation | Triac |
| Current Rating (A) | 0 → 350 (mA) |
| Output Current (A) | 350 (mA) |
| Ip Rating | IP20 |
| Series | RACT18 |
| Voltage Rating (V) | 264 (V ac) |
| Primary Type | AC-DC |
| Ac Or Dc Input Voltage (V) | ac |
| Power Dissipation | 1 (W) |
| Maximum Output Power | 18 (W) |
| Dimmable | Yes |
| Output Voltage (V) | 26 → 52 (V dc) |
| Operation | Constant Current |
| Configuration | Enclosed |
| Input Voltage (V) | 198 → 264 V ac |
Inventory for the RACT18-350 by Recom Power from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
8
|
|
Visit Site | |
| Buerklin |
|
|
Visit Site | |
| RS UK |
27
|
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| Schukat Electronic |
16
|
|
Visit Site |
No issues have been reported for the RACT18-350
