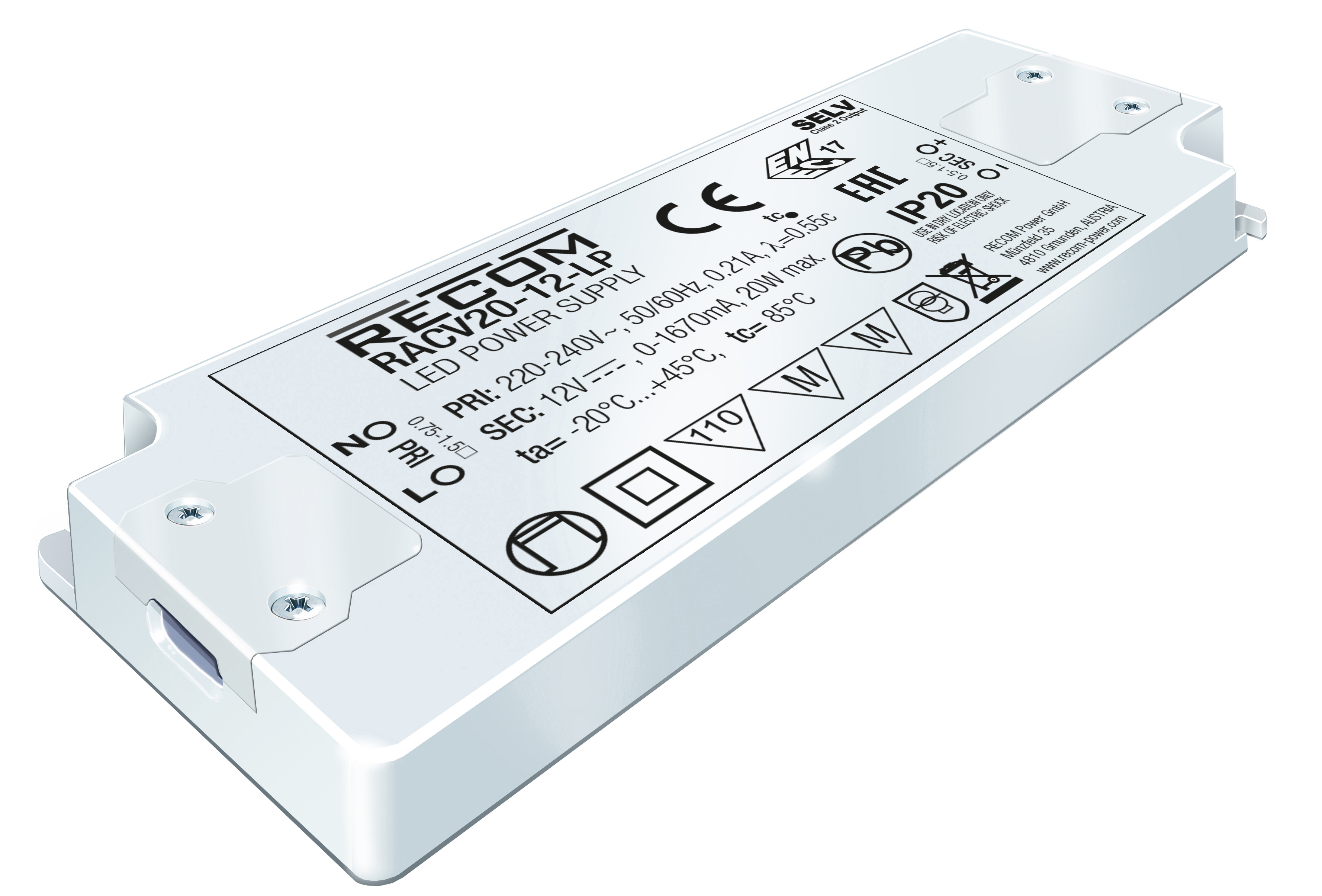

RACV20-24-LP
20W AC/DC LED Power Supply 'LIGHTLINE' 3.75kV reg
Availability: In Stock
More Resources
Use this component in your design
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RACV20-24-LP by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

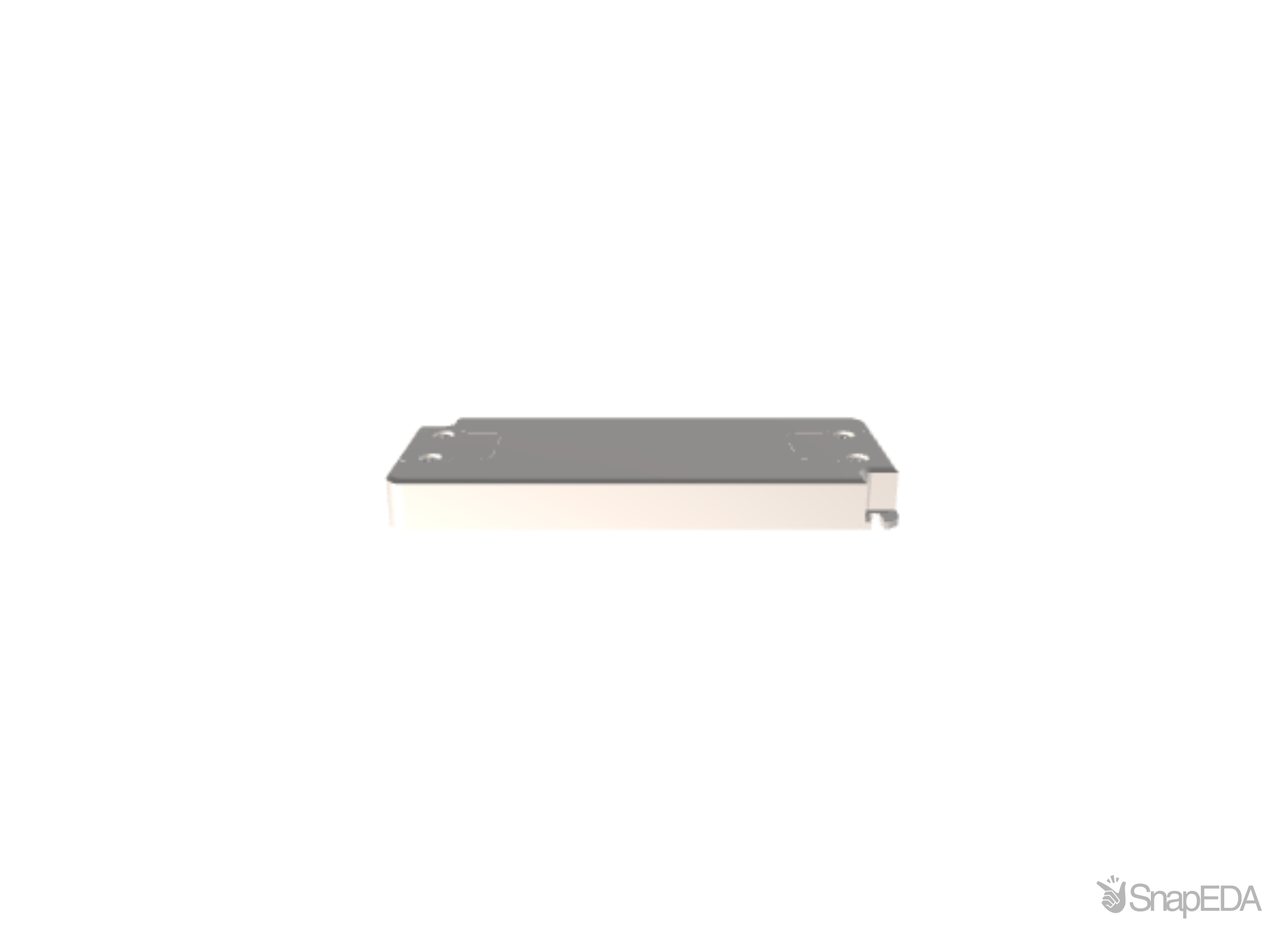

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RACV20-24-LP
| Part Name | RACV20-24-LP |
| Manufacturer | Recom Power |
| Category | AC/DC LED Drivers |
| Number of Outputs | 1.0 |
| Isolation Voltage (V) | 3750.0 |
| Case Package | Standard |
| Series | RACV20-LP |
| Short Circuit Protection | True |
| Packaging Type | Cardboard Box |
| Lead Free Status | True |
| Output Voltage (V) | [24.0, 24.0] |
| Product Link | https://recom-power.com/en/products/led-driver/led-driver-ac-dc/rec-p-RACV20-24-LP.html |
| Power Rating | 20.0 |
| Input Voltage (V) | [198.0, 264.0] |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
