RASM722
Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Surface Mount, Right Angle
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RASM722 by SWITCHCRAFT and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

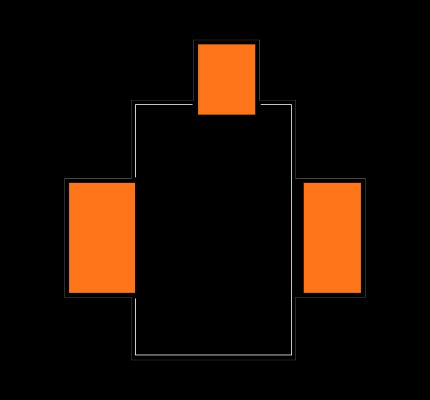

Footprint
No web preview
This Footprint is Available for

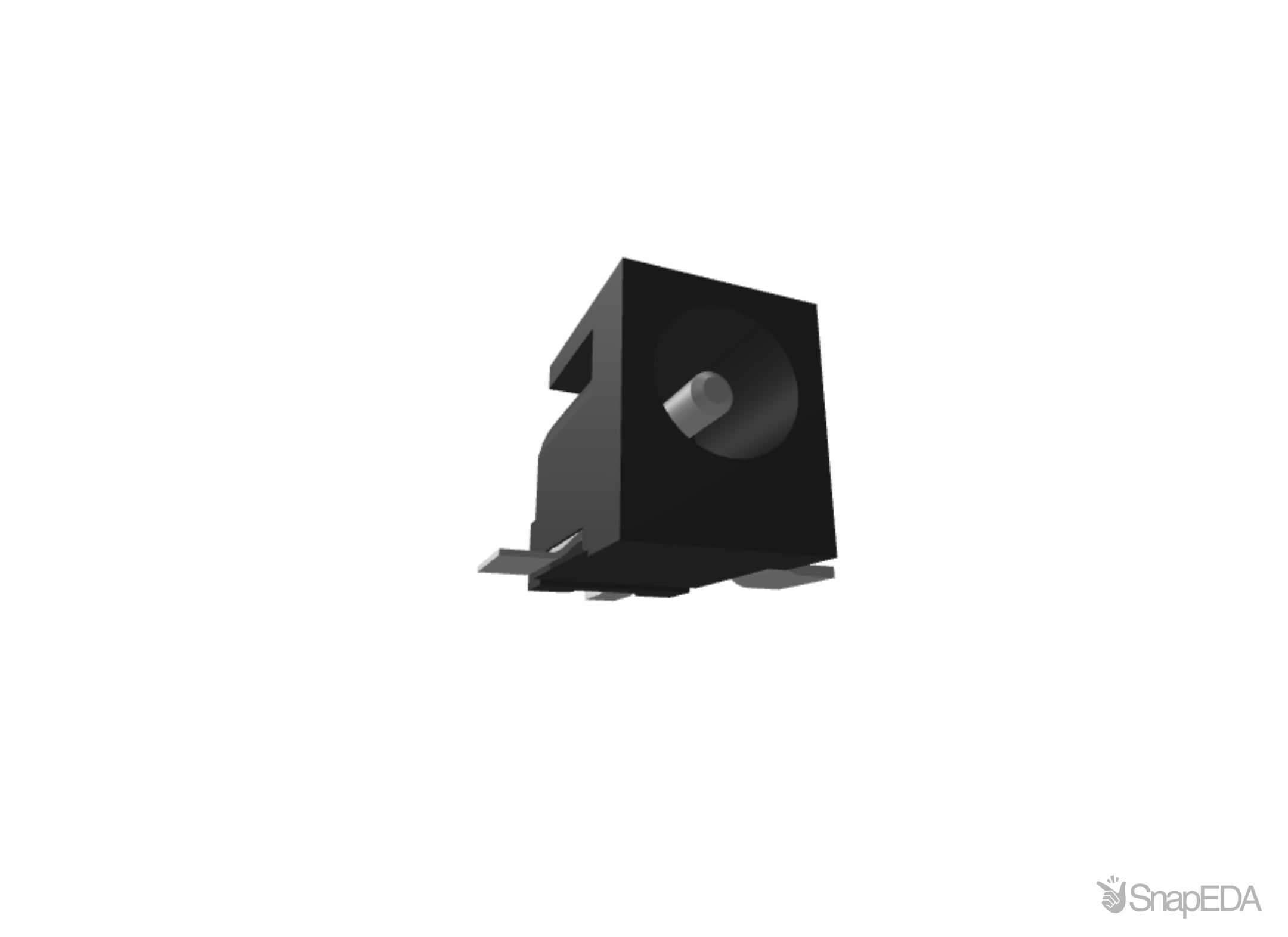

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RASM722
| Part Name | RASM722 |
| Manufacturer | Switchcraft |
| RoHS | No |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 5.0 (A) |
| Mounting Type | PCB Mount |
| Series | DC |
| Body Orientation | Right Angle |
| Width | 10.8 (mm) |
| Contact Plating | Nickel |
| Pin Diameter | 2.1 (mm) |
| Dc Power Connector Type | DC Socket |
| Contact Material | Copper Alloy |
Inventory for the RASM722 by SWITCHCRAFT from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
2,500 x $0.64
|
Visit Site | |
| Mouser |
|
N/A | Visit Site | |
| RS Americas |
|
1 x $1.98
|
Visit Site |
No issues have been reported for the RASM722
If you experienced any issues with the symbol or footprint, please report it.
