RB161MM-20TR
Diode Schottky 25 V 1A Surface Mount PMDU
Availability: In Stock
Package Type: SOD-123
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RB161MM-20TR by Rohm and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

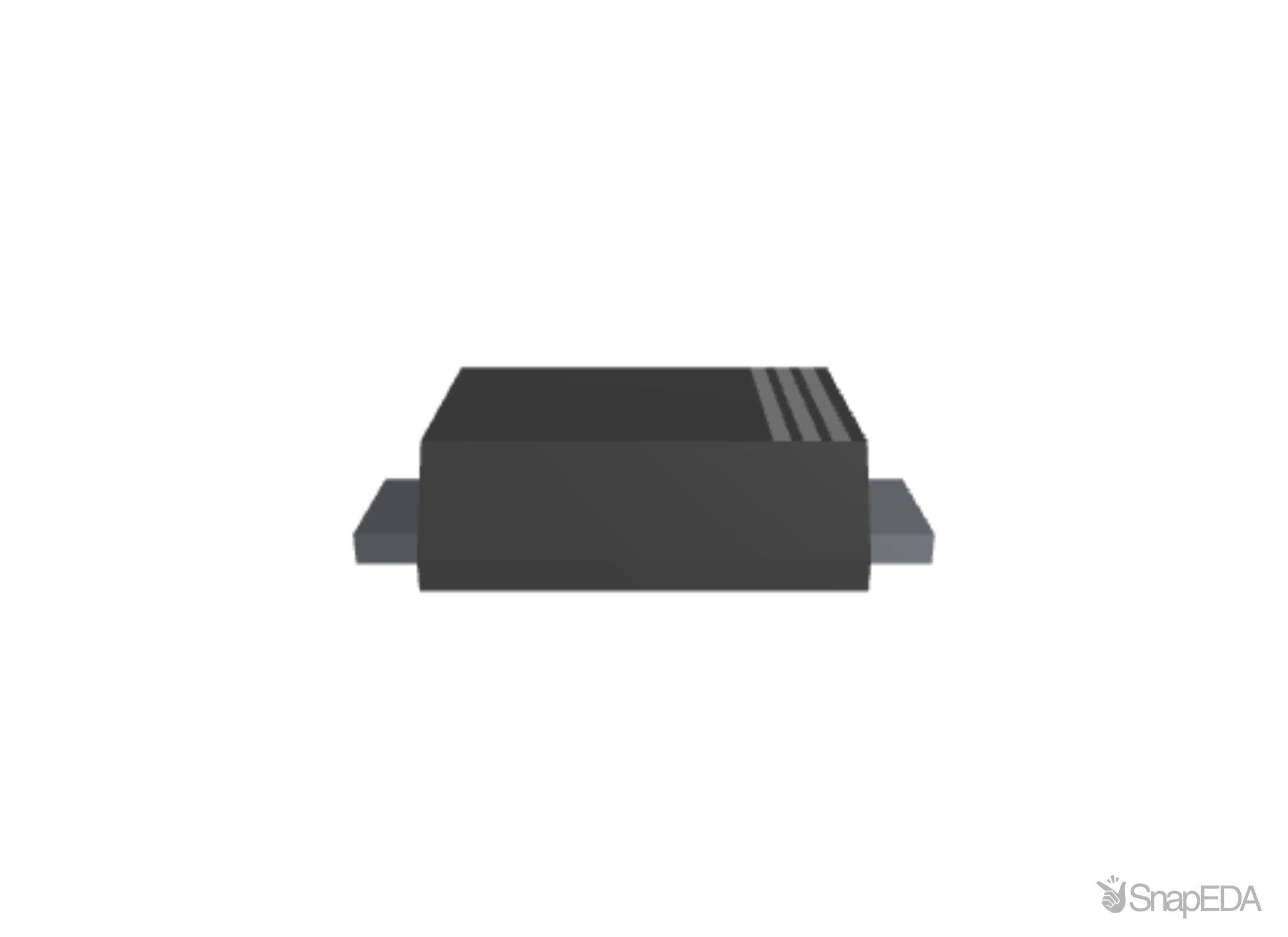

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RB161MM-20TR
| Part Name | RB161MM-20TR |
| Manufacturer | Rohm |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | Surface Mount |
| Maximum Continuous Forward Current (A) | 1 (A) |
| Maximum Forward Voltage Drop (V) | 350 (mV) |
| Diode Technology | Schottky |
| Package Type | SOD-123FL |
| Peak Reverse Repetitive Voltage (V) | 25 (V) |
| Diode Type | Schottky |
| Diode Configuration | Single |
| Pin Count | 2 |
| Peak Non Repetitive Forward Surge Current (A) | 30 (A) |
| Number Of Elements Per Chip | 1 |
Inventory for the RB161MM-20TR by Rohm from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet Asia |
15,000
|
|
Visit Site | |
| Chip One Stop |
17,400
|
|
Visit Site | |
| CoreStaff |
13,831
|
|
Visit Site | |
| Farnell UK |
2,785
|
|
Visit Site | |
| Newark |
2,785
|
|
Visit Site | |
| RS UK |
3,510
|
|
Visit Site | |
| Rutronik |
21,000
|
|
Visit Site | |
| TME |
|
|
Visit Site | |
| element14 Singapore |
2,785
|
|
Visit Site |
No issues have been reported for the RB161MM-20TR
If you experienced any issues with the symbol or footprint, please report it.
