RB751V40,115
Diode Schottky 40 V 120mA (DC) Surface Mount SOD-323
Availability: In Stock
Package Type: SOD323-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RB751V40,115 by Nexperia and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

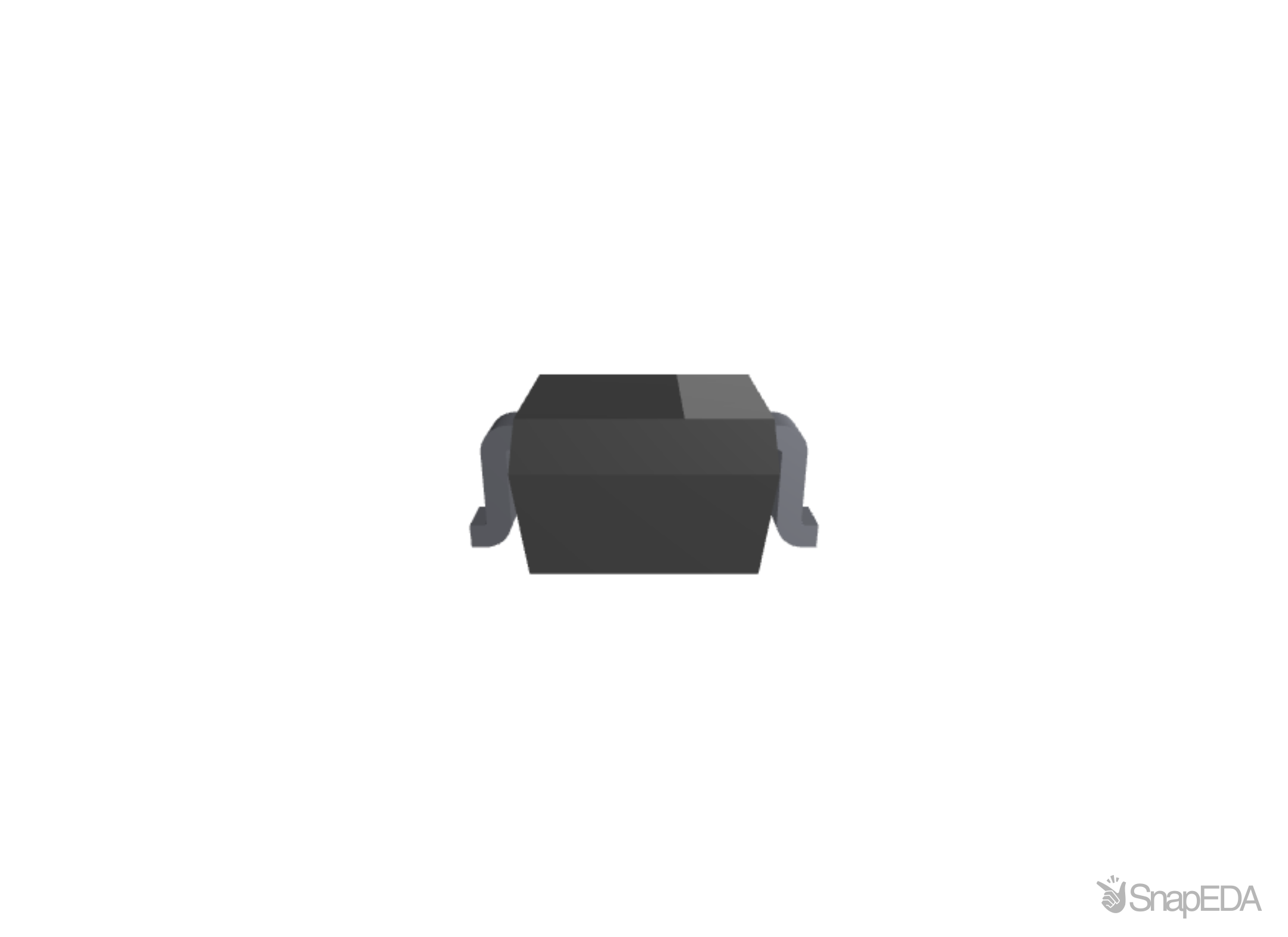

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RB751V40,115
| Part Name | RB751V40,115 |
| Manufacturer | Nexperia USA |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Mounting Type | Surface Mount |
| Rectifier Type | Schottky Rectifier |
| Maximum Forward Voltage Drop (V) | 370 (mV) |
| Maximum Continuous Forward Current (A) | 120 (mA) |
| Diode Technology | Schottky |
| Package Type | SOD-323 |
| Peak Reverse Repetitive Voltage (V) | 40 (V) |
| Diode Type | Schottky |
| Diode Configuration | Single |
| Pin Count | 2 |
| Peak Non Repetitive Forward Surge Current (A) | 200 (mA) |
| Number Of Elements Per Chip | 1 |
Inventory for the RB751V40,115 by Nexperia from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
82,766
|
|
Visit Site | |
|
★ Featured
|
30,336
|
14,290 x $0.02
|
Visit Site | |
| Arrow Electronics |
34,012
|
6,803 x $0.02
|
Visit Site | |
| Verical |
6,321
|
|
Visit Site |
No issues have been reported for the RB751V40,115
