RBB10-2.0
2A DC/DC-Converter 'INNOLINE' SMD reg
Availability: Out of Stock
Package Type: BLGA-25
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RBB10-2.0 by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

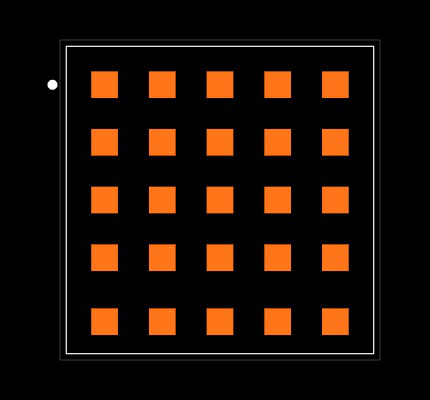

Footprint
No web preview
This Footprint is Available for

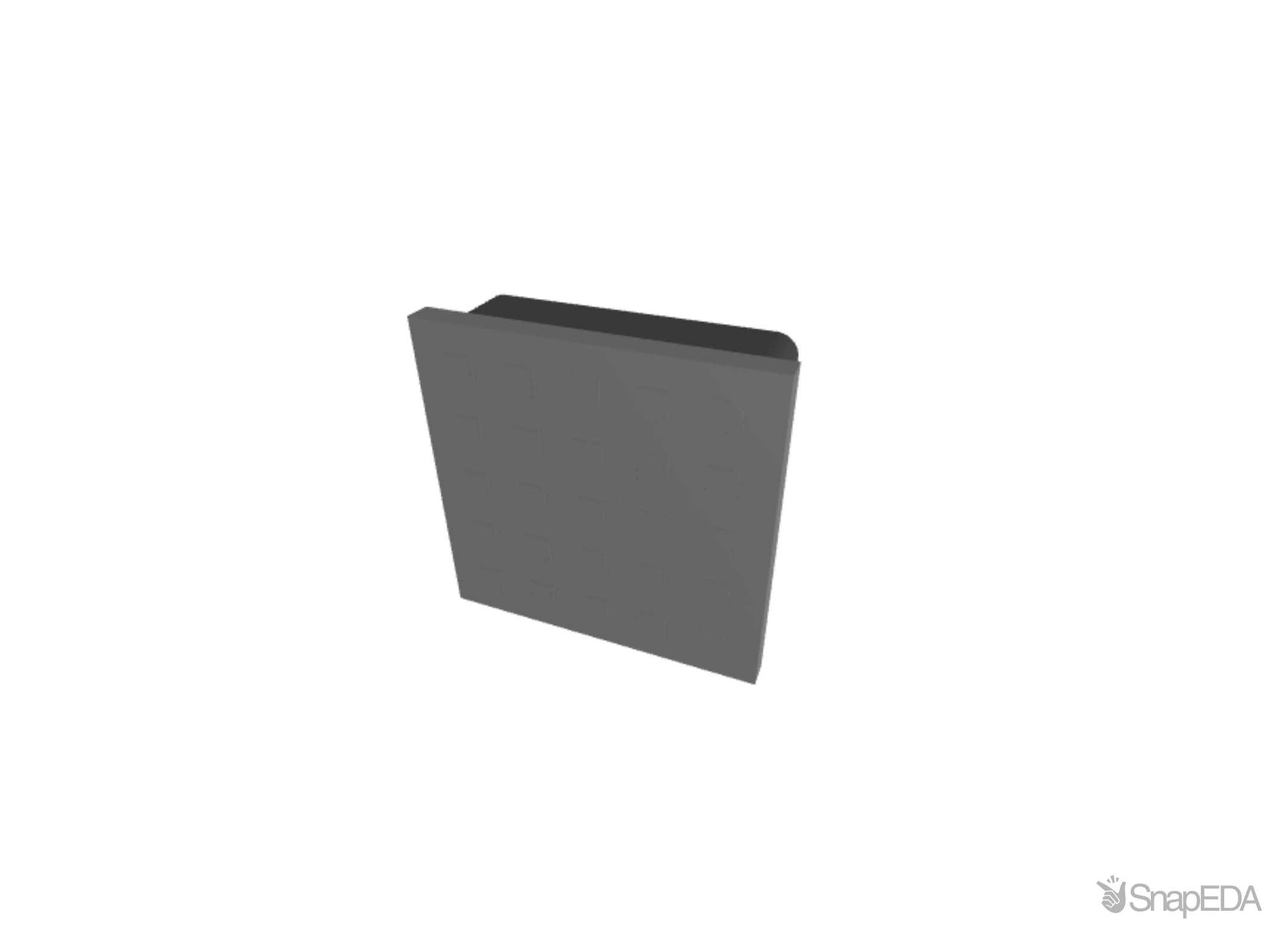

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RBB10-2.0
| Part Name | RBB10-2.0 |
| Manufacturer | Recom Power |
| Category | Switching Regulators |
| Number of Outputs | 1.0 |
| Isolation Voltage (V) | {'is_url': False, 'value': 0.0} |
| Output Current (A) | 2.0 |
| Case Package | 25 pad LGA |
| Series | RBB10-2.0 |
| Short Circuit Protection | True |
| Packaging Type | Tape & Reel |
| high_runner | TRUE |
| Input Voltage (V) | [2.3, 5.5] |
| Lead Free Status | True |
| Product Link | https://recom-power.com/en/products/switching-regulators/rec-p-RBB10-2.0.html |
| Output Voltage (V) | [1.0, 5.5] |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Depth | 3.75 (mm) |
| Number Of Outputs | 1 |
| Maximum Temperature | +100 (°C) |
| Output Current (A) | 4 (mA) |
| Mounting Type | Surface Mount |
| Width | 12.19 (mm) |
| Series | RBB10-2.0 |
| Input Voltage Range (V) | 2.3 → 5.5 V dc |
| Isolated | No |
| Efficiency | 96 (%) |
| Length | 12.19 (mm) |
| Load Regulation | 0.005 |
| Minimum Temperature | -40 (°C) |
| Input Voltage Nominal (V) | 5 V dc |
| Power Rating | 10 (W) |
| Output Voltage (V) | 5 (V dc) |
