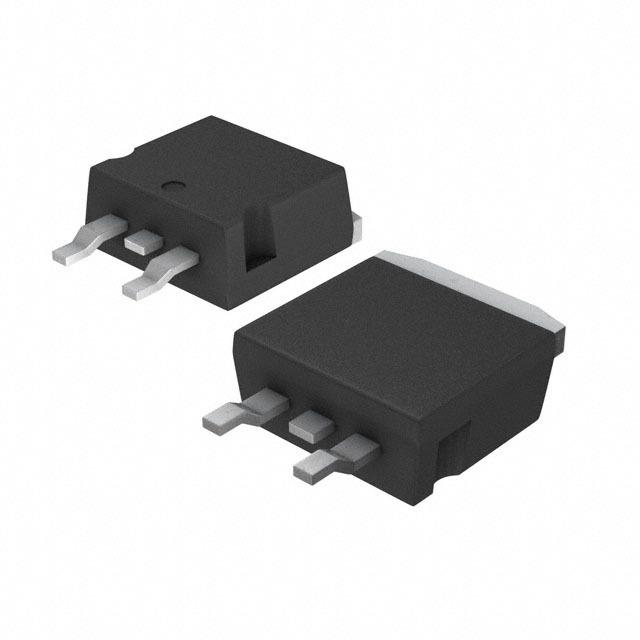

RBO40-40G
40V Clamp 20A, 37.5A Ipp Tvs Diode Surface Mount D2PAK
Availability: In Stock
Package Type: D2PAK-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RBO40-40G by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

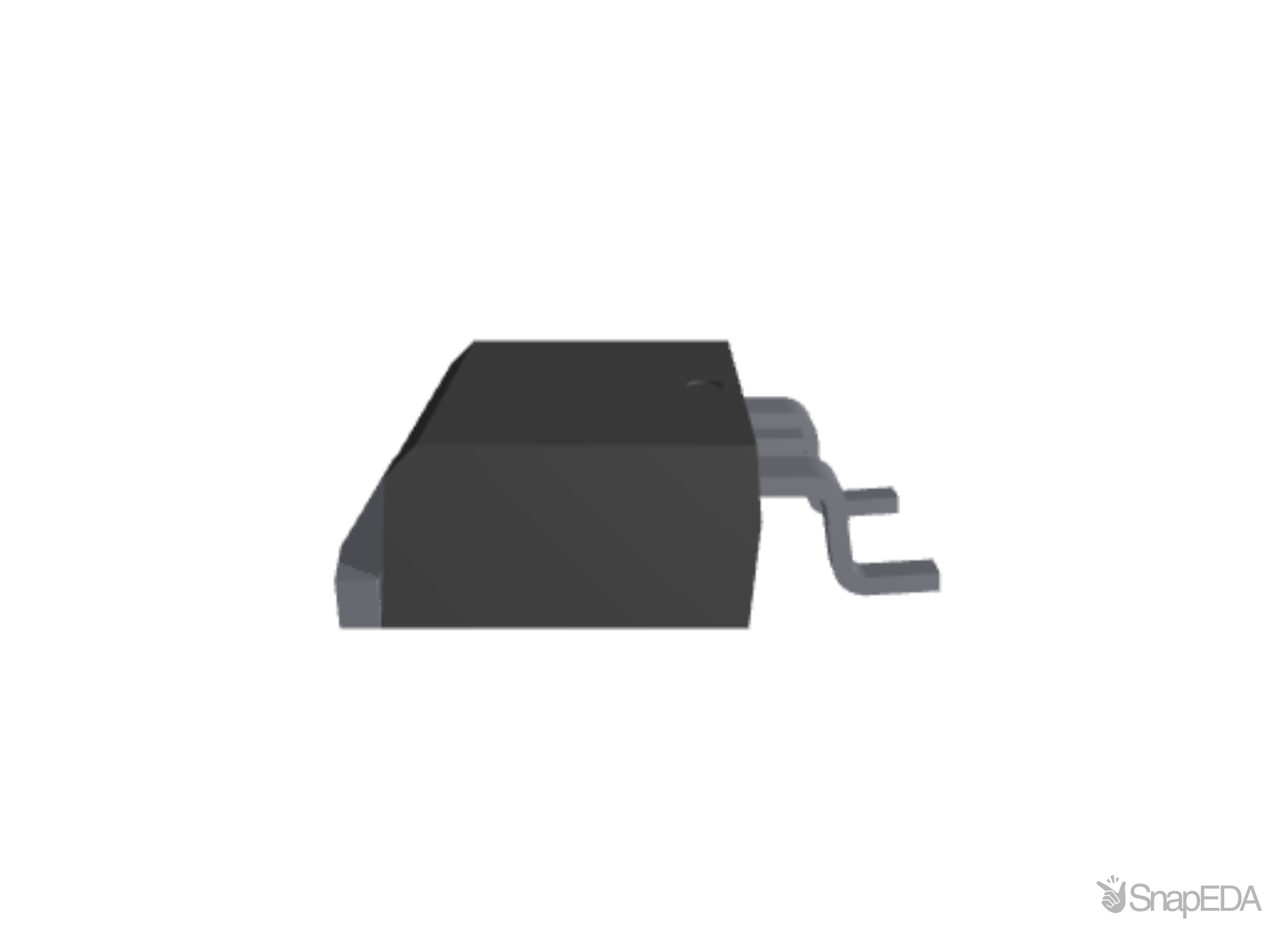

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RBO40-40G
| Part Name | RBO40-40G |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Automotive Standard | AEC-Q100 |
| Maximum Peak Pulse Current (A) | 37.5 (A) |
| Dimensions | 10.28 x 9.35 x 4.6 (mm) |
| Minimum Breakdown Voltage (V) | 24 (V) |
| Height | 4.6 (mm) |
| Width | 9.35 (mm) |
| Length | 10.28 (mm) |
| Package Type | D2PAK (TO-263) |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Maximum Clamping Voltage (V) | 40 (V) |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 3 |
