RC2512JK-071R5L
RESISTOR, PRC221 2512 1R5; Power Rating:1W; Resistance:1.5ohm; Resistance Tolerance:± 5%; Series:PRC221; Operating Temperature Range:-55°C to +155°C; Resistor Element Type:Thick Film; Voltage Rating:200V dc; Temperature Coefficient:± 300ppm/°C; Case Style:2512; External Length / Height:6.4mm; Temperature Coeff. -:300ppm/°C; Tempperature Coeff. +:300ppm/°C; Tolerance, +:5%; Tolerance, -:5%; Voltage Rating DC:200V; External Depth:0.55mm; External Width:3.1mm; Full Power Rating Temperature:70°C; Max Operating Temperature:125°C; Min Temperature Operating:-55°C; Reel Quantity:4000; Termination Type:SMD; Voltage Rating AC:200V; Climatic Category:55/125/56; Resistor Case Style:2512
Availability: In Stock
Package Type: 6331
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RC2512JK-071R5L by Yageo and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

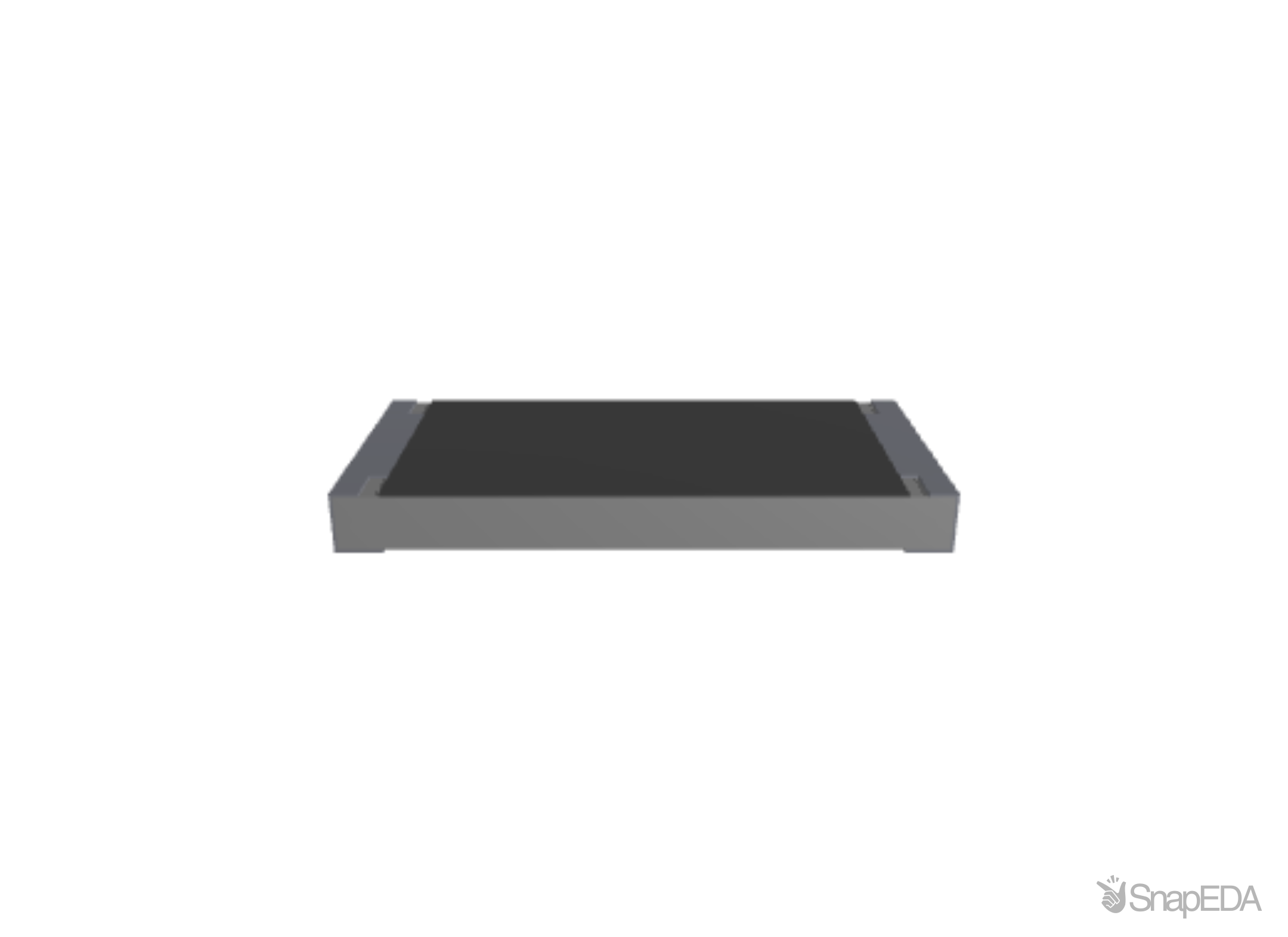

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RC2512JK-071R5L
| Part Name | RC2512JK-071R5L |
| Manufacturer | Yageo |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
