RCD-48-0.70/W

Name: RCD-48-0.70/W
Brand: Recom Power

DC-DC Converter, Constant Current Dimmable LED Driver 39.2W 2 to 56V 0 to.7A | RECOM Power Inc. RCD-48-0.70/W

Availability: Out of Stock

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the RCD-48-0.70/W by Recom Power and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

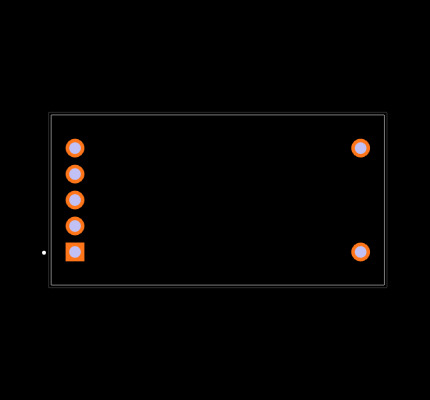

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the RCD-48-0.70/W

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the RCD-48-0.70/W

Part Name	RCD-48-0.70/W
Manufacturer	Recom Power
Category	Power Products
Number of Outputs	1.0
Isolation Voltage (V)	{'is_url': False, 'value': 0.0}
Output Current (A)	0.7
Case Package	Standard
Series	RCD-48
Short Circuit Protection	True
Packaging Type	Airbag
Lead Free Status	True
Input Voltage (V)	[9.0, 60.0]
high_runner	TRUE
Output Voltage (V)	[2.0, 56.0]
RoHS	True
Life Cycle Status	End of Life
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
Number Of Outputs	1
Led Driver Type	LED Driver
Current Rating (A)	0 → 700 (mA)
Output Current (A)	700 (mA)
Ip Rating	IP67
Series	RCD-48
Voltage Rating (V)	60 (V dc)
Dimming Operation	0 to 5 V dc, PWM
Maximum Output Power	39.2 (W)
Ac Or Dc Input Voltage (V)	dc
Primary Type	DC-DC
Input Voltage (V)	9 → 60 V dc
Distrelec Product Id	11034577
Dimmable	Yes
Configuration	Enclosed
Output Voltage (V)	2 → 56 (V dc)
Operation	Constant Current

We could not find inventory or pricing across major distributors for the RCD-48-0.70/W by Recom Power.
