RCP0603W25R0GEB
Thick Film Surface Mnt Resistor 0603 Case 25Ohm +/-2% 1.5W +/-100ppm/degC | Vishay Dale RCP0603W25R0GEB
Availability: Out of Stock
Package Type: 1608
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RCP0603W25R0GEB by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

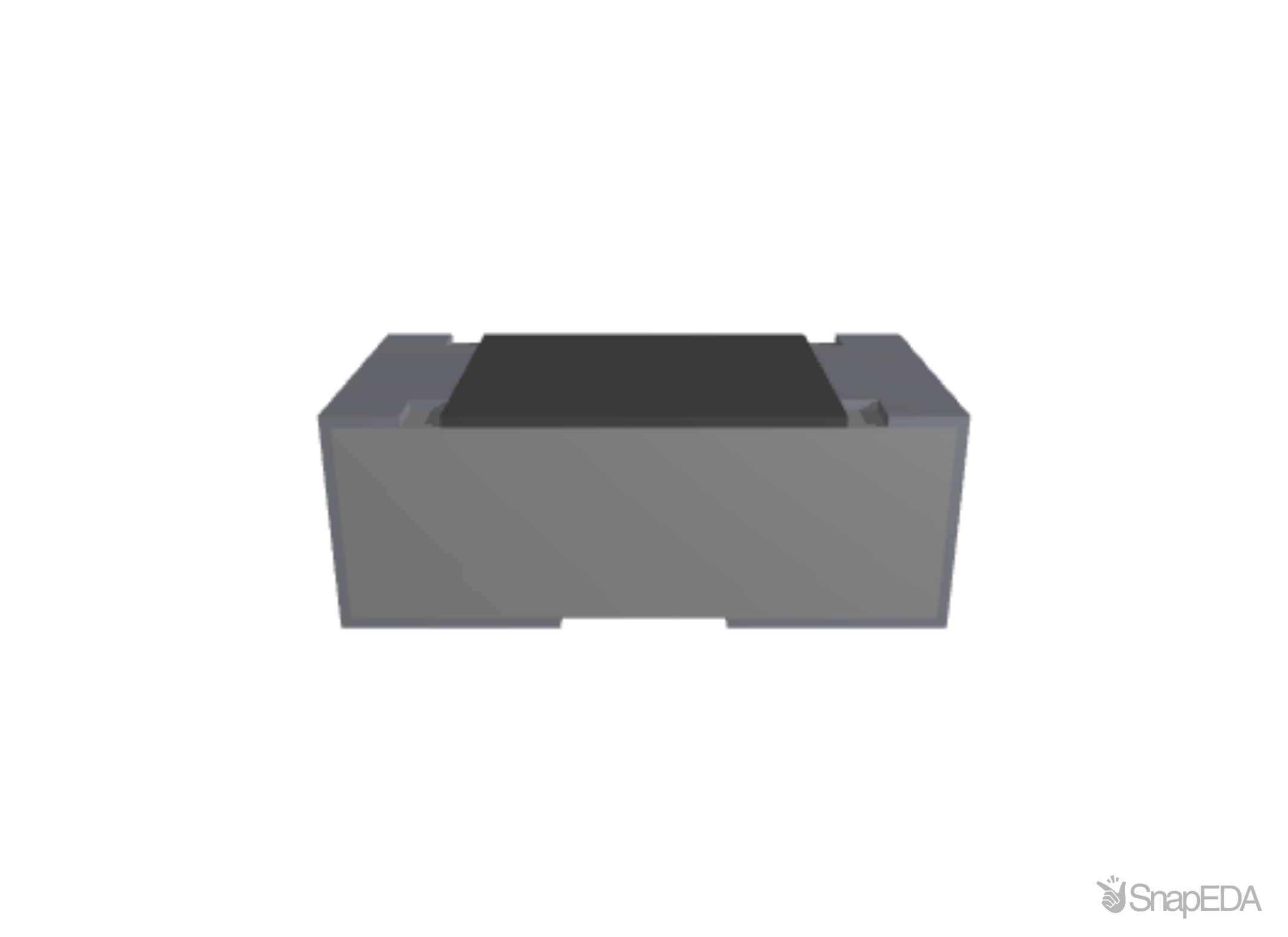

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RCP0603W25R0GEB
| Part Name | RCP0603W25R0GEB |
| Manufacturer | Vishay |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Package Case | 0603 (1608M) |
| Series | RCP |
| Resistance | 25 (Ω) |
| Temperature Coefficient | ±100 (ppm/°C) |
| Technology | Thick Film |
| Minimum Operating Temperature | -55 (°C) |
| Power Rating | 1.5 (W) |
| Maximum Operating Temperature | +155 (°C) |
| Tolerance | ±2 (%) |
