RDS-16S-74R-508-D
SnapVerified
16 Position, Right Angle, Through Hole, 5.08 mm Pitch, Flat Rotary Actuator, DIP Switch
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RDS-16S-74R-508-D by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

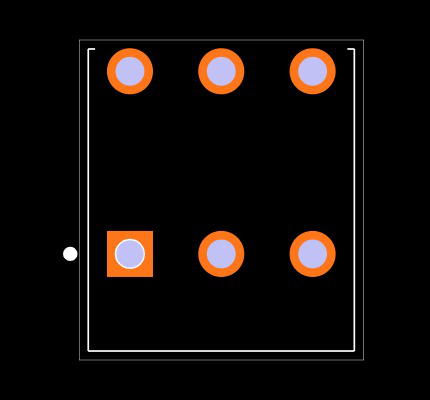

Footprint
No web preview
This Footprint is Available for

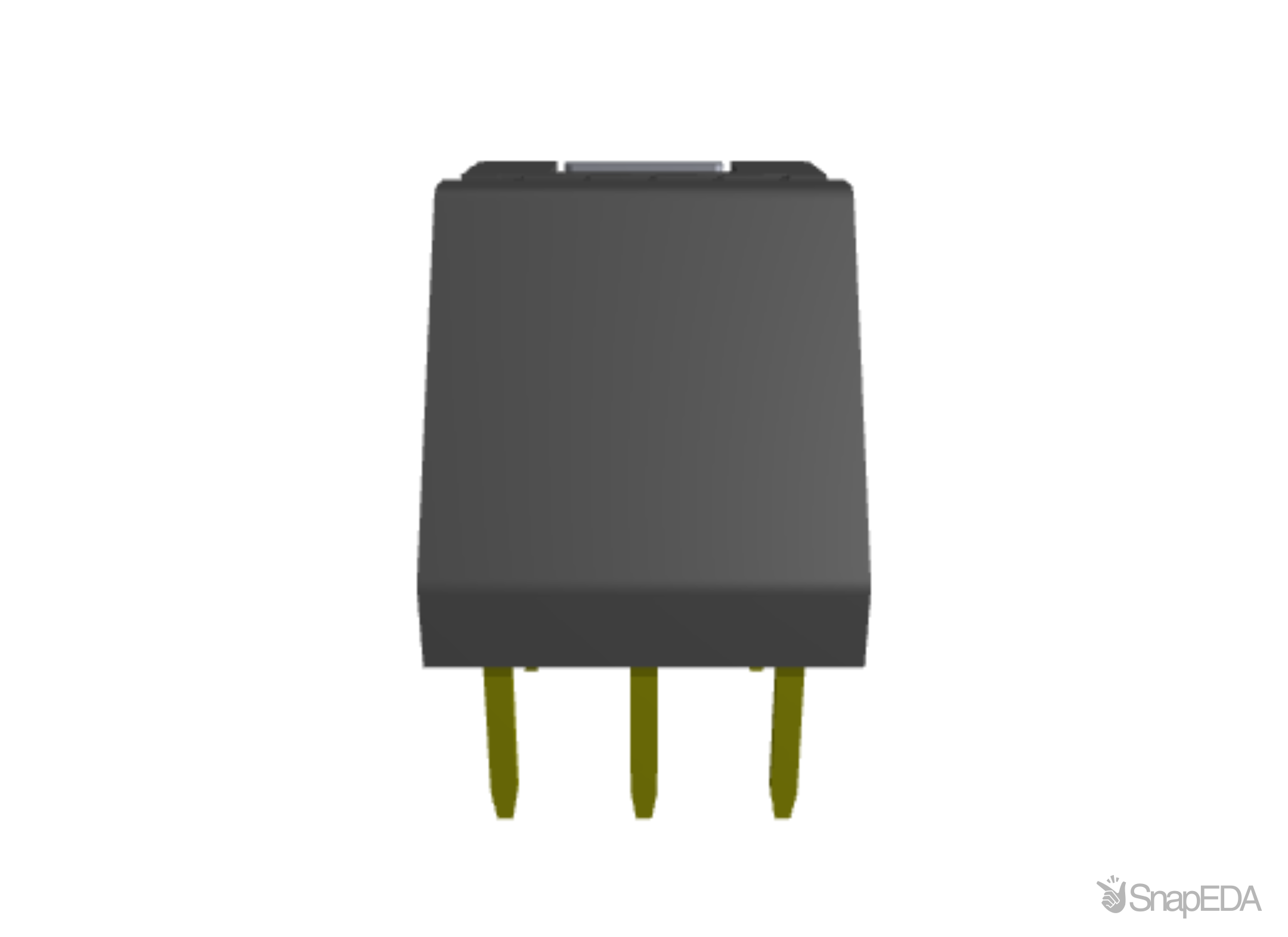

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RDS-16S-74R-508-D
| Part Name | RDS-16S-74R-508-D |
| Manufacturer | Same Sky |
| Washable | No |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/rds-16s-74r-508-d |
| Operating Temp MIN (°C) | -60 |
| Width (mm) | 7.4 |
| Dimensions LxWxH (mm) | 7.4 x 7.4 x 8.4 |
| Number of Positions | 16 |
| Switching Current Rating (mA) (A) | 100 |
| Actuator Level | Flat |
| Operating Temp MAX (°C) | 125 |
| Switching Voltage Rating (Vdc) (V) | 42 |
| Pitch (mm) | 5.08 |
| IP Rating | IP67 |
| Cap | No |
| Non-Switching Voltage Rating (Vdc) (V) | 42 |
| Length (mm) | 7.4 |
| Termination | PC Pin |
| RoHS | True |
| Height (mm) | 8.4 |
| Orientation | Vertical |
| Pin | Short |
| Series | RDS-74R-254 |
| Mounting Style | Through Hole |
| Actuator Type | Rotary |
| Dimensions LxWxH (in) | 0.29 x 0.29 x 0.33 |
| Non-Switching Current Rating (mA) (A) | 400 |
| Switch Type | DIP |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
