RDS1-10S-1065-SMT-TR-67
10 Position, Surface Mount, 2.54 mm Pitch, IP67, Flush Arrow Actuator, DIP Switch
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RDS1-10S-1065-SMT-TR-67 by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

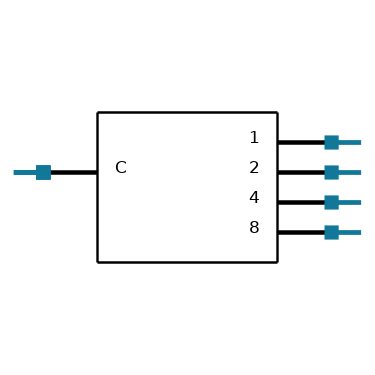

Symbol
No web preview
This Symbol is Available for

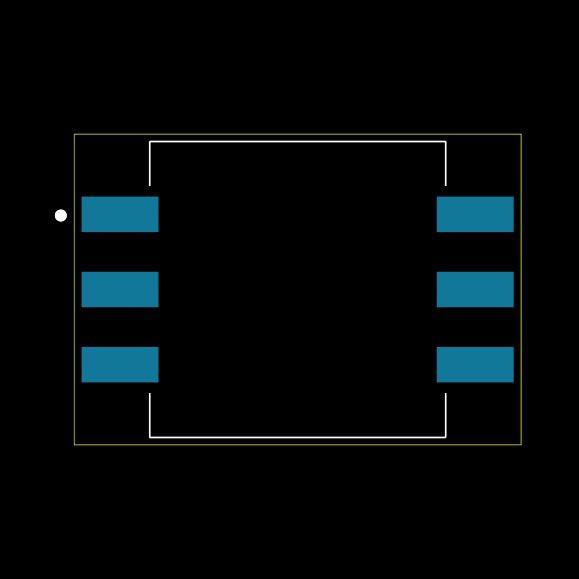

Footprint
No web preview
This Footprint is Available for

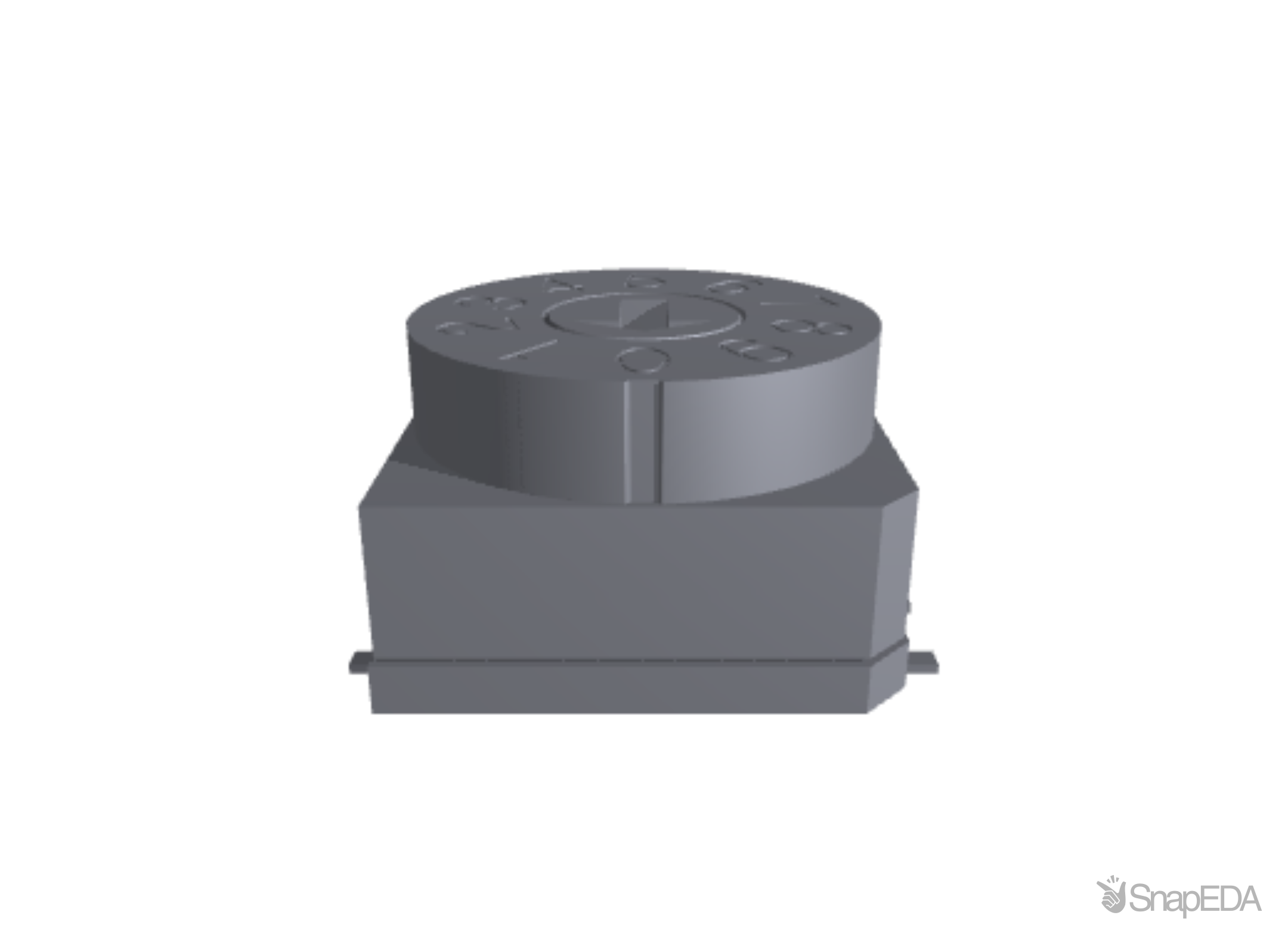

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RDS1-10S-1065-SMT-TR-67
| Part Name | RDS1-10S-1065-SMT-TR-67 |
| Manufacturer | Same Sky |
| Washable | No |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/rds1-10s-1065-smt-tr-67 |
| Operating Temp MIN (°C) | *-40 |
| Width (mm) | 10 |
| Dimensions LxWxH (mm) | 10 x 10 x 6.5 |
| Number of Positions | 10 |
| Actuator Style | Arrow |
| Actuator Level | Flush |
| Operating Temp MAX (°C) | 85 |
| Switching Voltage Rating (Vdc) (V) | 42 |
| Pitch (mm) | 2.54 |
| Switching Current Rating (mA) (A) | 150 |
| IP Rating | IP67 |
| Cap | No |
| Non-Switching Voltage Rating (Vdc) (V) | 42 |
| Length (mm) | 10 |
| Termination | Gull Wing |
| RoHS | True |
| Height (mm) | 6.5 |
| Orientation | Horizontal |
| Mounting Style | SMT |
| Actuator Type | Rotary |
| Dimensions LxWxH (in) | 0.393 x 0.393 x 0.256 |
| Non-Switching Current Rating (mA) (A) | 200 |
| Switch Type | DIP |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the RDS1-10S-1065-SMT-TR-67 by Same Sky from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
519
|
|
Visit Site | |
|
★ Featured
|
519
|
|
Visit Site | |
|
★ Featured
|
|
|
Visit Site |
No issues have been reported for the RDS1-10S-1065-SMT-TR-67
If you experienced any issues with the symbol or footprint, please report it.
