RE-1205S
Recom Isolated DC-DC Converter, Vin 10.8 - 13.2 V dc, Vout 5V dc | RECOM Power Inc. RE-1205S
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
More Resources
Use this component in your design
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RE-1205S by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

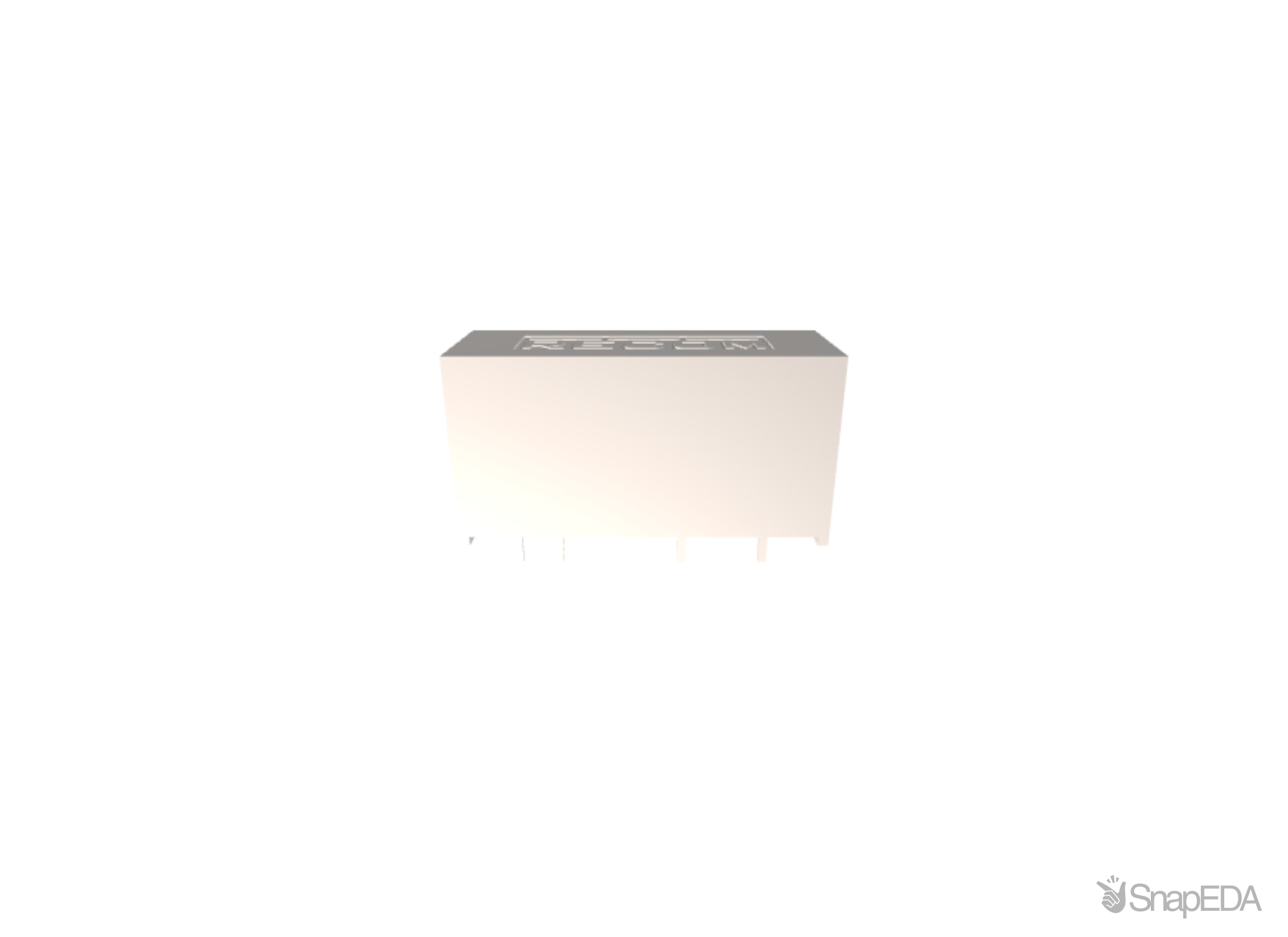

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RE-1205S
| Part Name | RE-1205S |
| Manufacturer | Recom Power |
| Category | Power Products |
| Number of Outputs | 1.0 |
| Isolation Voltage (V) | 1000.0 |
| Output Current (A) | 0.2 |
| Case Package | SIP7 |
| Series | RE |
| Short Circuit Protection | {'is_url': False, 'value': False} |
| Packaging Type | Tube |
| Lead Free Status | True |
| Input Voltage (V) | [12.0, 12.0] |
| Product Link | https://recom-power.com/en/products/dc-dc-converters/rec-p-RE-1205S.html |
| Power Rating | 1.0 |
| Output Voltage (V) | [5.0, 5.0] |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Depth | 10.2 (mm) |
| Number Of Outputs | 1 |
| Maximum Temperature | +85 (°C) |
| Isolation Voltage (V) | 1 (kV dc) |
| Standards Met | UL 60950-1 |
| Mounting Type | Through Hole |
| Package | SIP |
| Width | 6 (mm) |
| Series | RE |
| Input Voltage Range (V) | 10.8 → 13.2 V dc |
| Isolated | Yes |
| Efficiency | 78 → 80 (%) |
| Length | 19.6 (mm) |
| Load Regulation | 10 (%) |
| Minimum Temperature | -40 (°C) |
| Input Voltage Nominal (V) | 12 V dc |
| Power Rating | 1 (W) |
| Output Voltage (V) | 5 (V dc) |
| Output Current (A) | 200 (mA) |
No issues have been reported for the RE-1205S
