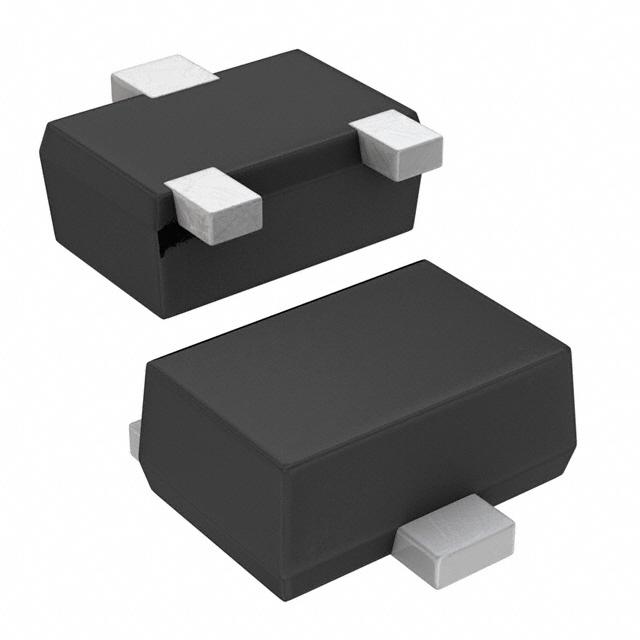

RE1C002UNTCL
N-Channel 20 V 200mA (Ta) 150mW (Ta) Surface Mount EMT3F (SOT-416FL)
Availability: In Stock
Package Type: SOT-490
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RE1C002UNTCL by Rohm and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

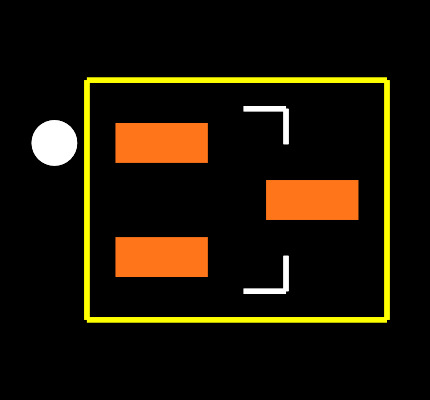

Footprint
No web preview
This Footprint is Available for

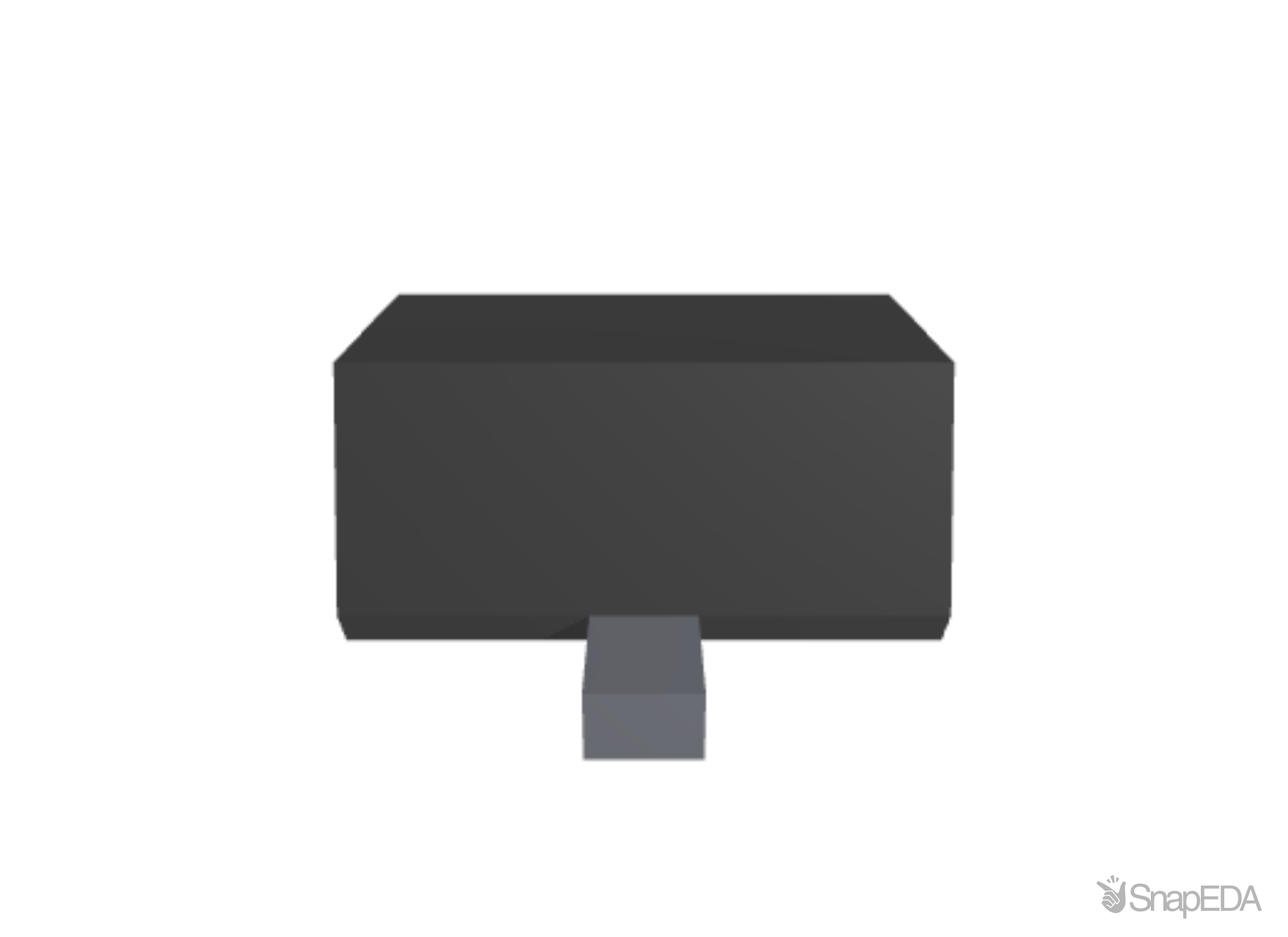

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RE1C002UNTCL
| Part Name | RE1C002UNTCL |
| Manufacturer | Rohm |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Drain Source Voltage (V) | 20 V |
| Width | 0.96 (mm) |
| Maximum Continuous Drain Current (A) | 200 mA |
| Mounting Type | Surface Mount |
| Maximum Gate Source Voltage (V) | -8 V, +8 V |
| Series | RE1C002UN |
| Maximum Power Dissipation | 150 mW |
| Length | 1.7 (mm) |
| Height | 0.8 (mm) |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage (V) | 1 (V) |
| Maximum Drain Source Resistance | 4.8 Ω |
| Package Type | SC-75 |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Minimum Gate Threshold Voltage (V) | 0.3 (V) |
| Forward Diode Voltage (V) | 1.2 (V) |
| Channel Type | N |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 3 |
Inventory for the RE1C002UNTCL by Rohm from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
841,307
|
|
Visit Site | |
|
★ Featured
|
29,183
|
|
Visit Site | |
|
★ Featured
|
382,500
|
17,245 x $0.02
|
Visit Site | |
| Avnet Asia |
15,000
|
|
Visit Site | |
| CoreStaff |
10,864
|
|
Visit Site | |
| Farnell UK |
29,489
|
|
Visit Site | |
| Newark |
6
|
|
Visit Site | |
| RS UK |
1,800
|
|
Visit Site | |
| Rutronik |
|
|
Visit Site | |
| TME |
2,604
|
|
Visit Site | |
| TTI Americas |
27,000
|
|
Visit Site | |
| Verical |
69,615
|
|
Visit Site | |
| element14 Singapore |
22,989
|
|
Visit Site |
No issues have been reported for the RE1C002UNTCL
