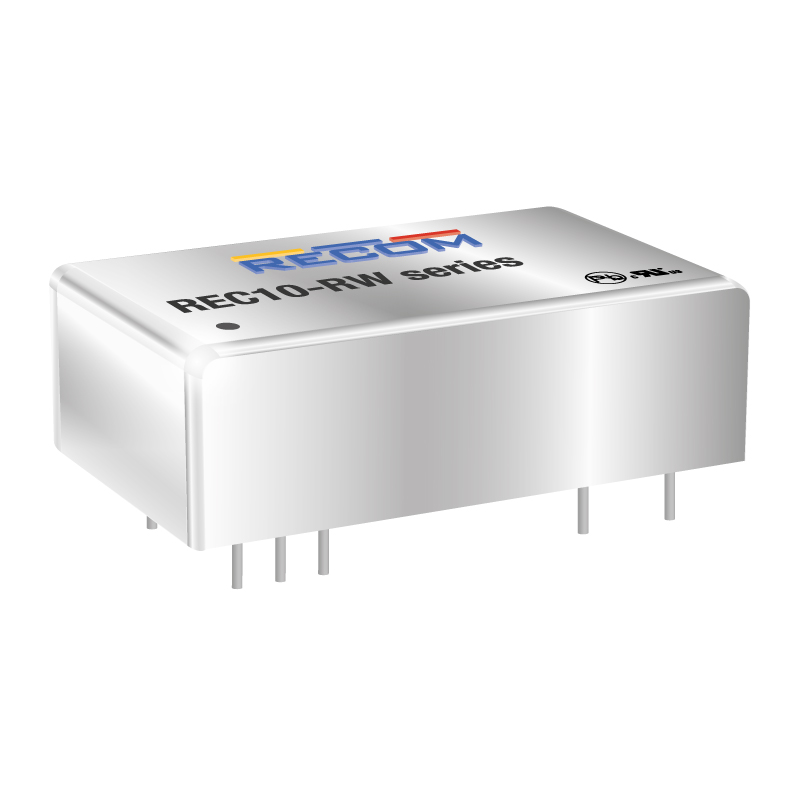

REC10-123.3SRW/H3/A/M/X2
10W DC/DC-Converter 'ECONOLINE' DIP24 3kV reg 2:1
Availability: Out of Stock
Package Type: DIP-24
CAD Models: Symbol, Footprint, 3D Model
More Resources
Use this component in your design
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the REC10-123.3SRW/H3/A/M/X2 by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

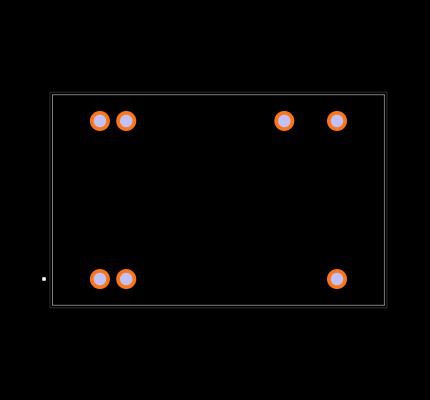

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the REC10-123.3SRW/H3/A/M/X2
| Part Name | REC10-123.3SRW/H3/A/M/X2 |
| Manufacturer | Recom Power |
| Category | Regulated DC/DC Converter |
| Number of Outputs | 1.0 |
| Isolation Voltage (V) | 3000.0 |
| Output Current (A) | 2.0 |
| Case Package | DIP24 |
| Series | REC10-SRW_DRW |
| Short Circuit Protection | True |
| Packaging Type | Tube |
| Lead Free Status | True |
| Output Voltage (V) | [3.3, 3.3] |
| Product Link | https://recom-power.com/en/products/dc-dc-converters/rec-p-REC10-123.3SRW!sH3!sA!sM!sX2.html |
| Power Rating | 10.0 |
| Input Voltage (V) | [9.0, 18.0] |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
