REC3-2415DR/H1/M
DC-DC Converter, DIP24, 1kV Reg, 3W, +/-15V, +/-100mA, REC3-S_DR Series | RECOM Power Inc. REC3-2415DR/H1/M
Availability: Out of Stock
Package Type: DIP-24
CAD Models: Symbol, Footprint, 3D Model
More Resources
Use this component in your design
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the REC3-2415DR/H1/M by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

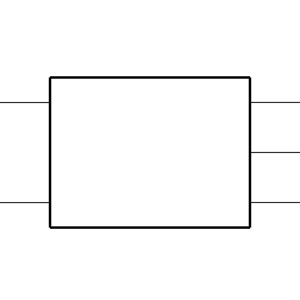

Symbol
No web preview
This Symbol is Available for

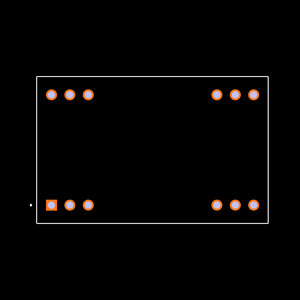

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the REC3-2415DR/H1/M
| Part Name | REC3-2415DR/H1/M |
| Manufacturer | Recom Power |
| Category | Electronic Components |
| Number of Outputs | 2.0 |
| Isolation Voltage (V) | 1000.0 |
| Case Package | DIP24 |
| Series | REC3-R |
| Short Circuit Protection | True |
| Packaging Type | Tube |
| Lead Free Status | True |
| Output Voltage (V) | [15.0, 15.0] |
| Product Link | https://recom-power.com/en/products/dc-dc-converters/rec-p-REC3-2415DR!sH1!sM.html |
| Power Rating | 3.0 |
| Input Voltage (V) | [24.0, 24.0] |
| RoHS | True |
