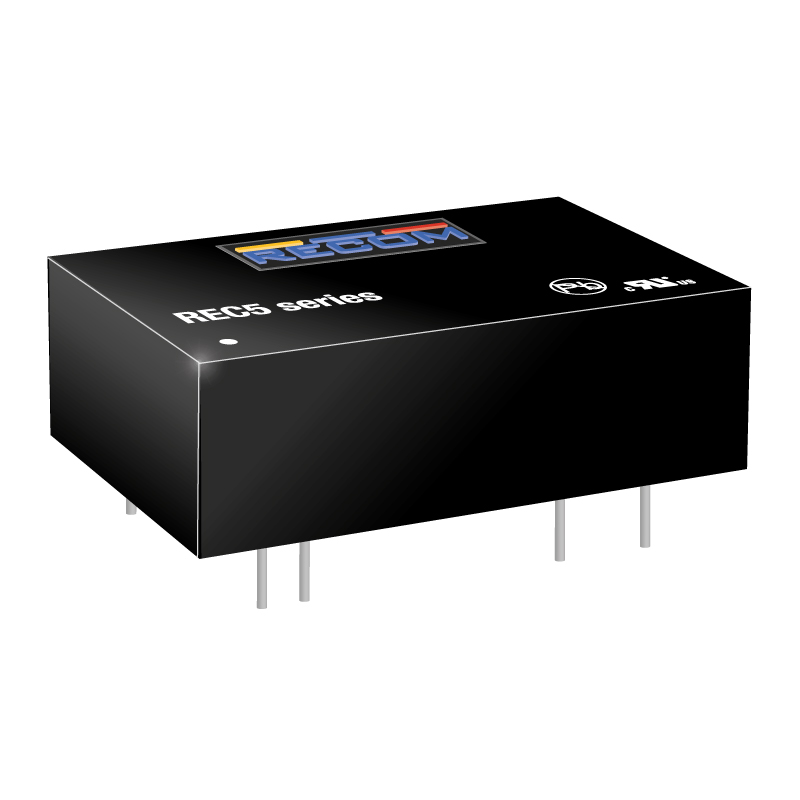

REC5-2405SRW/H4/C/M
5W DC/DC-Converter 'ECONOLINE' DIP24 4kV reg 2:1
Availability: Out of Stock
Package Type: DIP-24
CAD Models: Symbol, Footprint, 3D Model
What is SnapEDA?
SnapEDA is a free library of symbols & footprints for the REC5-2405SRW/H4/C/M by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Download Symbol and Footprint
Auto-Import
Footprint
No web preview
This Footprint is Available for
Download Footprint
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model for $0.99 $29
courtesy of Digikey.
More
| Verification | Issues | Specs |
Specifications for the REC5-2405SRW/H4/C/M
| Part Name | REC5-2405SRW/H4/C/M |
| Manufacturer | Recom Power |
| Series | REC5-RW |
| Category | Isolated DC/DC Converters |
| Input Voltage (V) | [18.0, 36.0] |
| Isolation Voltage (V) | 4000.0 |
| Number of Outputs | 1.0 |
| Short Circuit Protection | True |
| Output Voltage (V) | [5.0, 5.0] |
| Lead Free Status | True |
| Packaging Type | Tube |
| Case Package | DIP24 |
| Product Link | https://recom-power.com/en/products/dc-dc-converters/rec-p-REC5-2405SRW!sH4!sC!sM.html |
| Output Current (A) | 1.0 |
| Power Rating | 5.0 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the REC5-2405SRW/H4/C/M by Recom Power from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
15 x $27.60
|
Visit Site | |
| Sager |
|
|
Visit Site |
