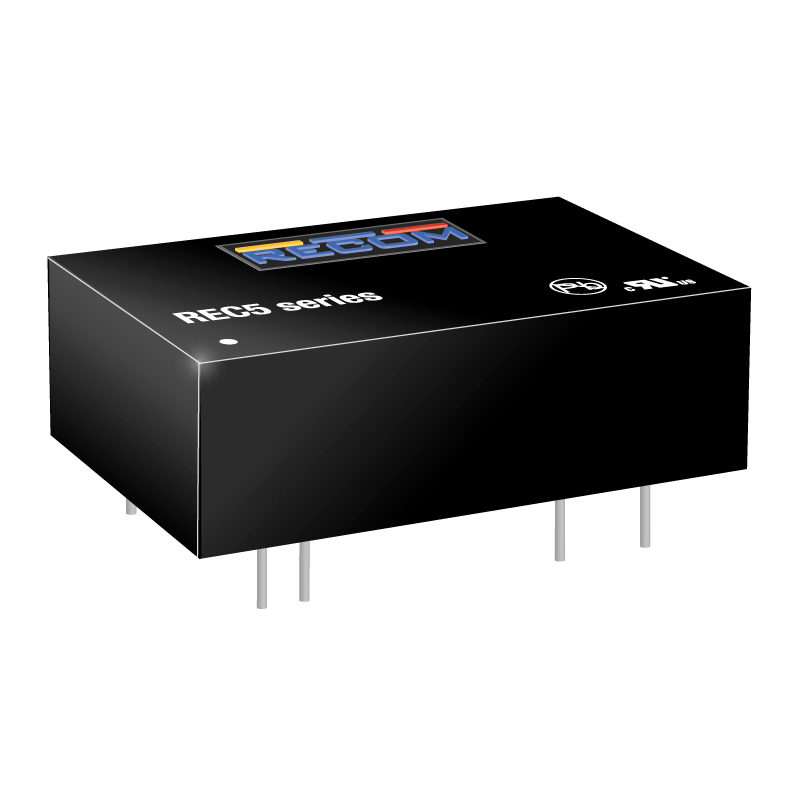

REC5-2409DRWZ/H/B/M/SMD-R
5W DC/DC-Converter 'ECONOLINE' SMD 1.6kV reg 4:1
Availability: Out of Stock
Package Type: SMD-24
CAD Models: Symbol, Footprint, 3D Model
More Resources
Use this component in your design
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the REC5-2409DRWZ/H/B/M/SMD-R by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the REC5-2409DRWZ/H/B/M/SMD-R
| Part Name | REC5-2409DRWZ/H/B/M/SMD-R |
| Manufacturer | Recom Power |
| Category | Isolated DC/DC Converters |
| Number of Outputs | 2.0 |
| Isolation Voltage (V) | 1600.0 |
| Case Package | SMD 24 Pin |
| Series | REC5-RWZ |
| Short Circuit Protection | True |
| Packaging Type | Tape & Reel |
| Lead Free Status | True |
| Input Voltage (V) | [9.0, 36.0] |
| Product Link | https://recom-power.com/en/products/dc-dc-converters/rec-p-REC5-2409DRWZ!sH!sB!sM!sSMD-R.html |
| Power Rating | 5.0 |
| Output Voltage (V) | [9.0, 9.0] |
