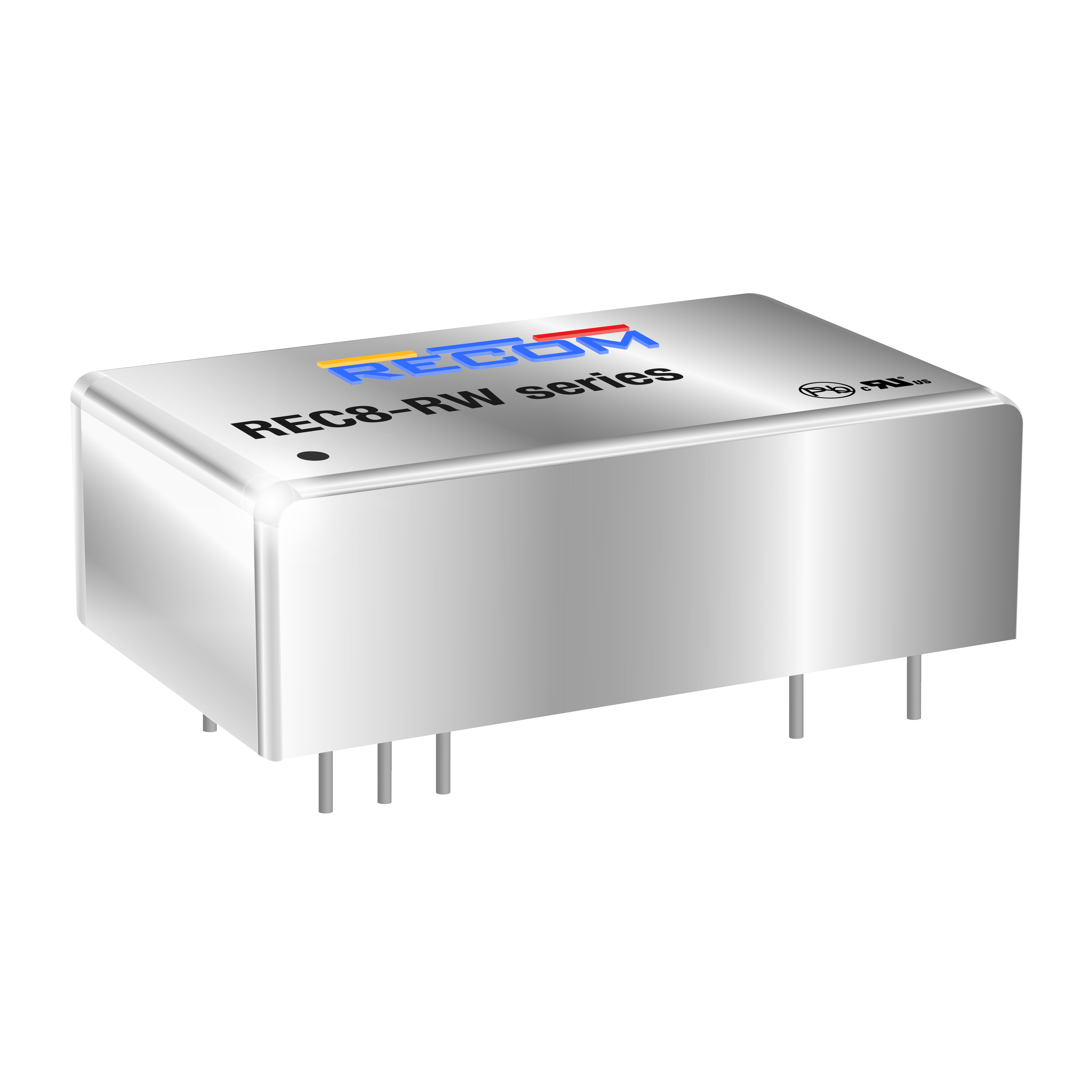

REC8-2405DRW/H2/A/M
8W DC/DC-Converter 'ECONOLINE' DIP24 2kV reg 2:1
Availability: Out of Stock
Package Type: DIP-24
CAD Models: Symbol, Footprint, 3D Model
More Resources
Use this component in your design
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the REC8-2405DRW/H2/A/M by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

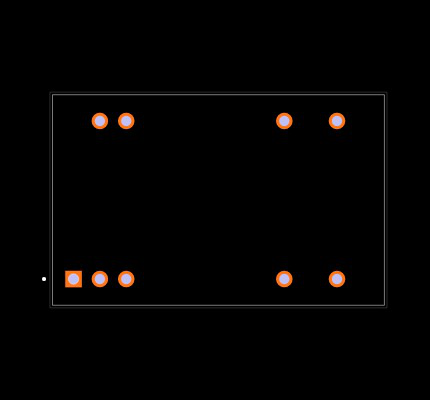

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the REC8-2405DRW/H2/A/M
| Part Name | REC8-2405DRW/H2/A/M |
| Manufacturer | Recom Power |
| Category | Regulated DC/DC Converter |
| Number of Outputs | 2.0 |
| Isolation Voltage (V) | 2000.0 |
| Case Package | DIP24 |
| Series | REC8-S_DRW(Z) |
| Short Circuit Protection | True |
| Packaging Type | Tube |
| Lead Free Status | True |
| Input Voltage (V) | [18.0, 36.0] |
| Output Voltage (V) | [5.0, 5.0] |
| Power Rating | 8.0 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the REC8-2405DRW/H2/A/M
