REF02AP
Wide supply range, 5-V output precision voltage reference
Availability: In Stock
Package Type: PDIP-8
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the REF02AP by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

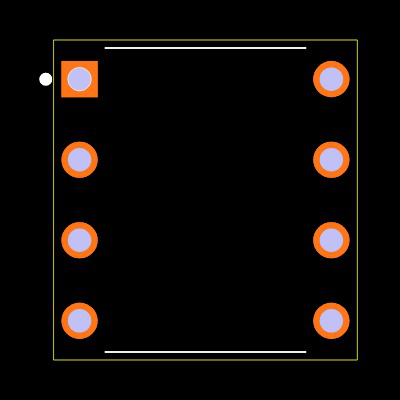

Footprint
No web preview
This Footprint is Available for

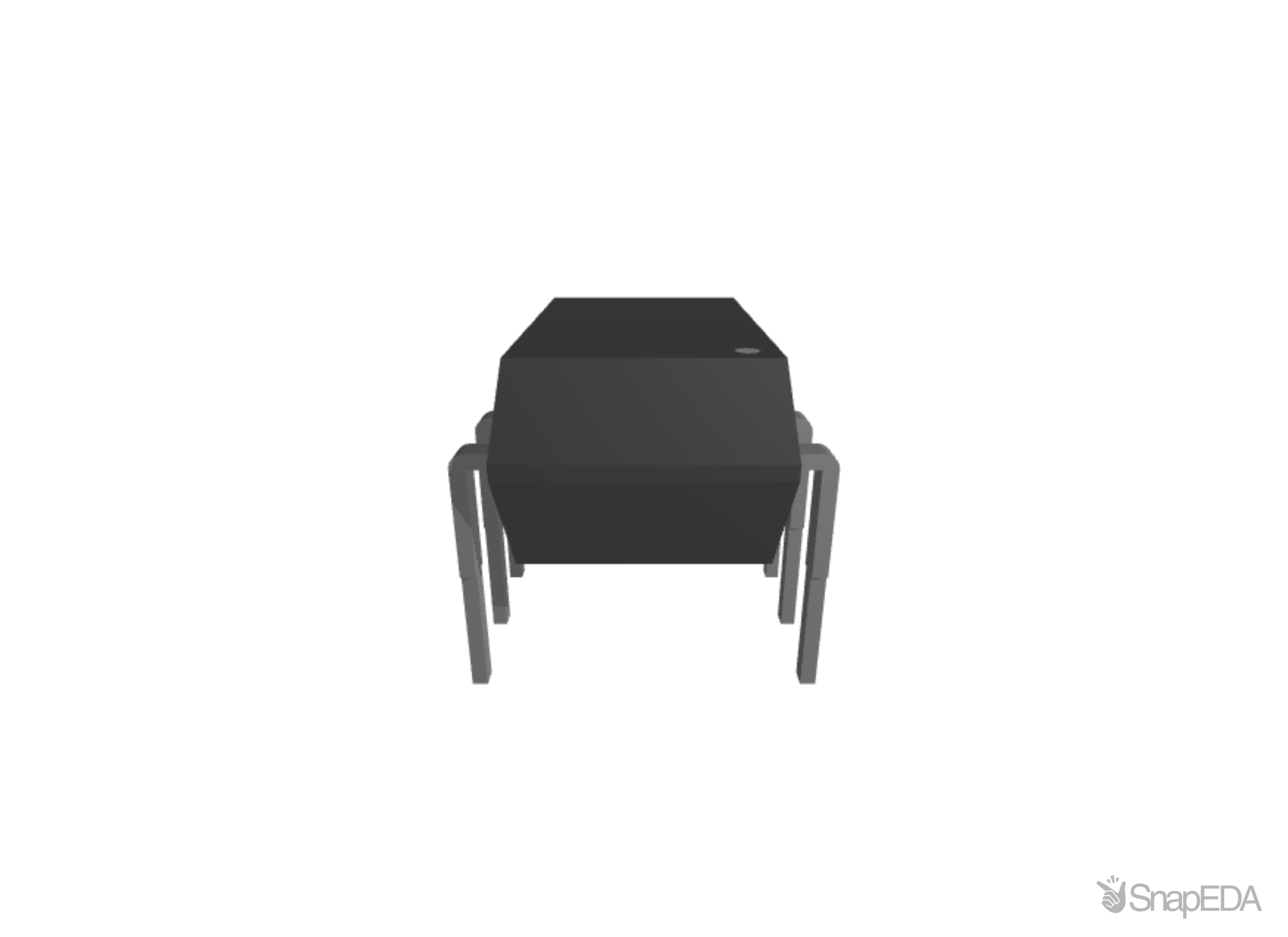

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the REF02AP
| Part Name | REF02AP |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Load Regulation | 0.01 %/mA |
| Dimensions | 9.81 x 6.35 x 4.57 (mm) |
| Mounting Type | Through Hole |
| Line Regulation | 0.01 %/V |
| Height | 4.57 (mm) |
| Width | 6.35 (mm) |
| Length | 9.81 (mm) |
| Initial Accuracy | ±0.2 % |
| Package Type | PDIP |
| Maximum Output Voltage (V) | 5.015 V |
| Minimum Operating Temperature | -40 °C |
| Minimum Output Voltage (V) | 4.985 V |
| Nominal Voltage (V) | 5 (V) |
| Reference Type | Fixed |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 8 |
| Maximum Input Voltage (V) | 40 V |
| Topology | Series |
Inventory for the REF02AP by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
N/A | Visit Site | |
|
★ Featured
|
7,364
|
41 x $7.48
|
Visit Site | |
| Texas Instruments |
|
|
Visit Site |
No issues have been reported for the REF02AP
If you experienced any issues with the symbol or footprint, please report it.
