REF3033AIDBZ
Series Voltage Reference IC Fixed 3.3V V ±0.2% 25 mA SOT-23-3
Availability: Out of Stock
Package Type: SOT-23-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the REF3033AIDBZ by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

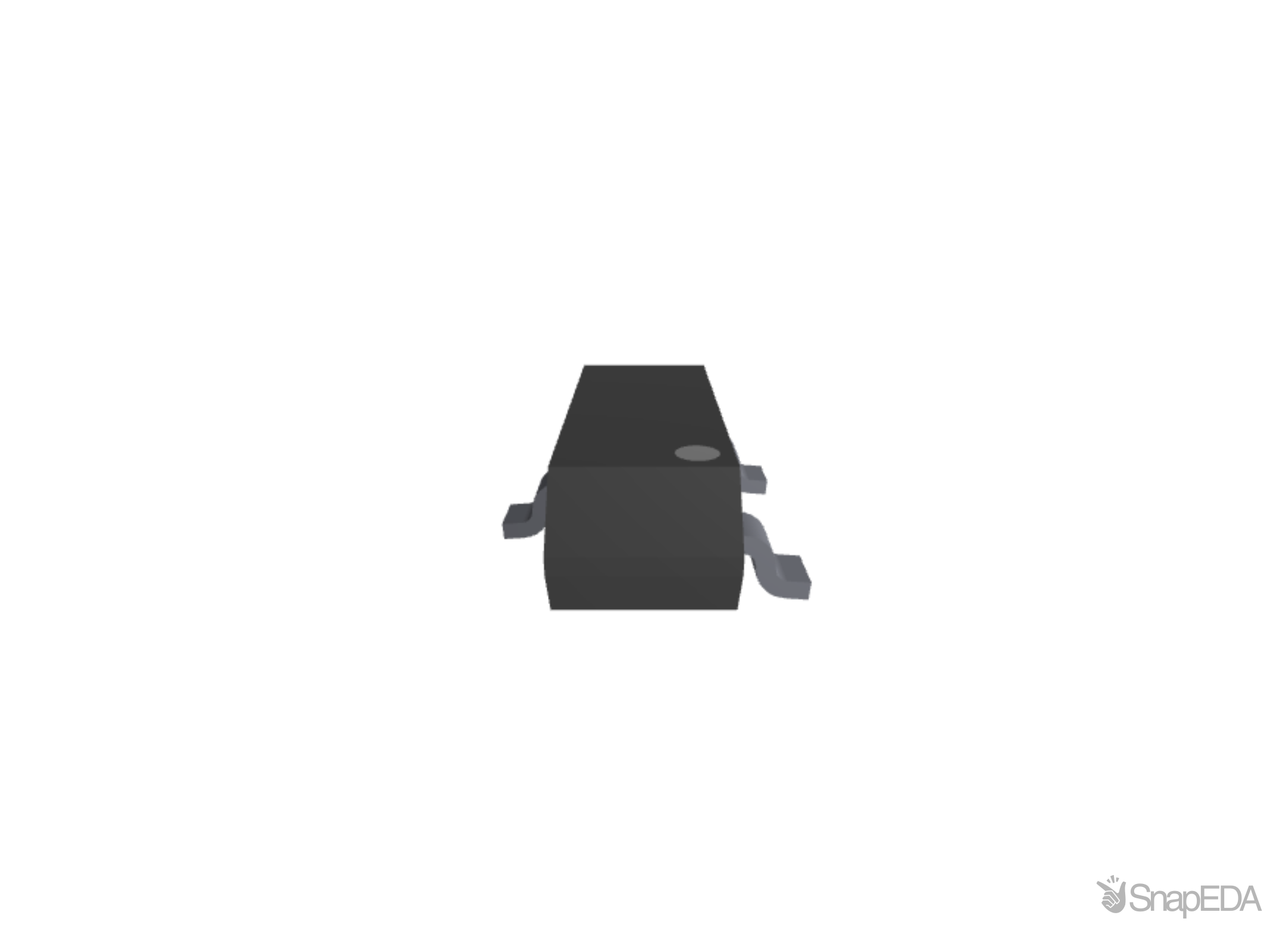

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the REF3033AIDBZ
| Part Name | REF3033AIDBZ |
| Manufacturer | Texas Instruments |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Load Regulation | 100 μV/mA |
| Dimensions | 2.92 x 1.3 x 1 (mm) |
| Mounting Type | Surface Mount |
| Maximum Output Current (A) | 25 (mA) |
| Line Regulation | 400 μV/V |
| Height | 1 (mm) |
| Width | 1.3 (mm) |
| Length | 2.92 (mm) |
| Initial Accuracy | ±0.2 % |
| Package Type | SOT-23 |
| Maximum Output Voltage (V) | 3.3 V |
| Minimum Operating Temperature | -40 °C |
| Minimum Output Voltage (V) | 3.294 V |
| Nominal Voltage (V) | 3.3 (V) |
| Reference Type | Fixed |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 3 |
| Maximum Input Voltage (V) | 7 V |
| Topology | Series |
No issues have been reported for the REF3033AIDBZ
If you experienced any issues with the symbol or footprint, please report it.
