REM2-0505D
2W DC/DC-Converter 'MEDLINE' SIP8 5.2kV unreg
Availability: In Stock
Package Type: SIP-8
CAD Models: Symbol, Footprint, 3D Model
More Resources
Use this component in your design
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the REM2-0505D by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

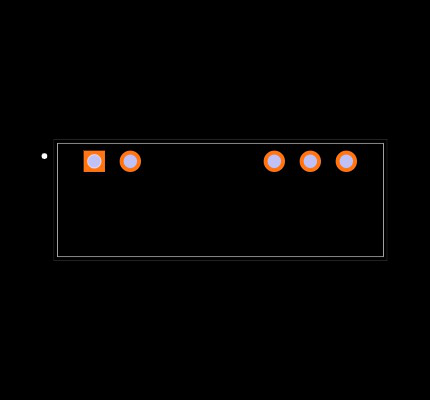

Footprint
No web preview
This Footprint is Available for

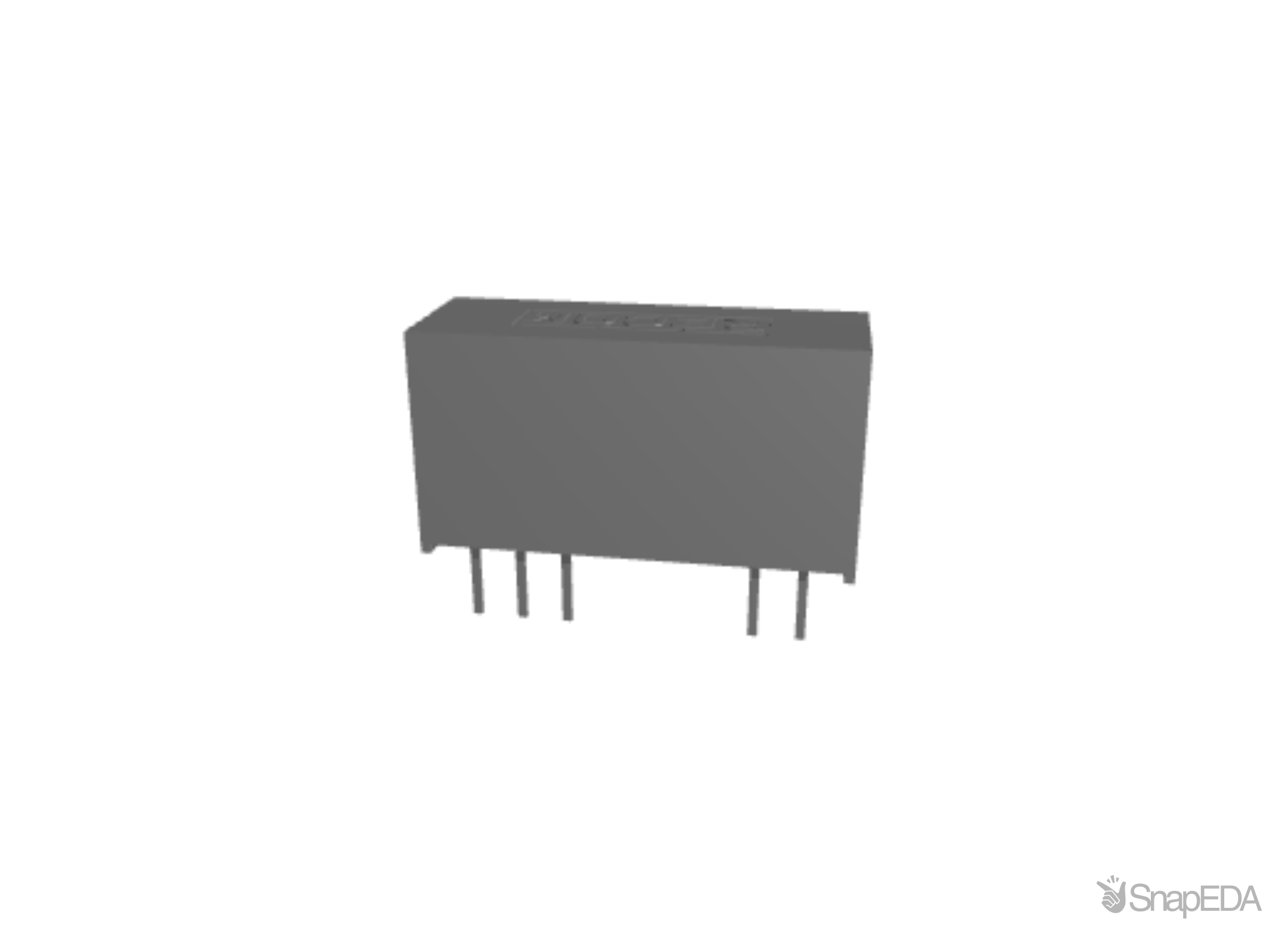

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the REM2-0505D
| Part Name | REM2-0505D |
| Manufacturer | Recom Power |
| Category | Isolated DC/DC Converters |
| Number of Outputs | 2.0 |
| Isolation Voltage (V) | 5200.0 |
| Case Package | SIP8 |
| Series | REM2 |
| Short Circuit Protection | {'is_url': False, 'value': False} |
| Packaging Type | Tube |
| Lead Free Status | True |
| Input Voltage (V) | [4.5, 5.5] |
| Product Link | https://recom-power.com/en/products/dc-dc-converters/rec-p-REM2-0505D.html |
| Power Rating | 2.0 |
| Output Voltage (V) | [5.0, 5.0] |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Depth | 12.2 (mm) |
| Number Of Outputs | 2 |
| Maximum Temperature | +95 (°C) |
| Isolation Voltage (V) | 5.2 (kV dc) |
| Standards Met | 2MOPP, ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No.60601-1:14, CB, cURus, EN55011, EN60601-1-2, IEC/EN60601-1, IEC/EN62368-1 |
| Mounting Type | Through Hole |
| Package | SIP 8 |
| Width | 8 (mm) |
| Series | REM2 |
| Input Voltage Range (V) | 4.5 → 5.5 V dc |
| Isolated | Yes |
| Efficiency | 82 (%) |
| Length | 23 (mm) |
| Load Regulation | 0.15 |
| Minimum Temperature | -40 (°C) |
| Input Voltage Nominal (V) | 5 V dc |
| Power Rating | 2 (W) |
| Output Voltage (V) | ±5 (V dc) |
| Output Current (A) | ±200 (mA) |
| Medical Approved | Yes |
