RES KIT 1206RS
Resistor Kit;Thick Film;Res 10 to 1M Ohms;Pwr-Rtg 0.25 W;SMT;1206;Tol +Jmper,1% | TE Connectivity RES KIT 1206RS
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RES KIT 1206RS by TE Connectivity AMP Connectors and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

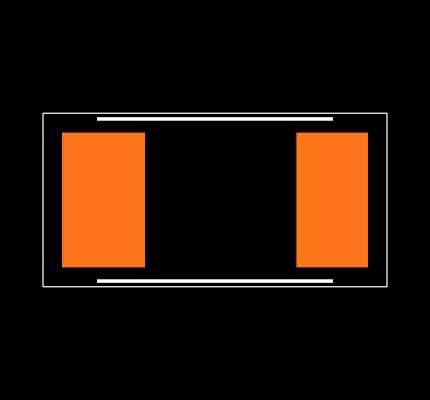

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RES KIT 1206RS
| Part Name | RES KIT 1206RS |
| Manufacturer | TE Connectivity |
| Category | Electronic Components |
| Mount Style | Surface Mount |
| Dimensions | 1 x .5 x .35 |
| Size Code | 1206 |
| Element Type | Thick Film |
| Resistor Type | General Purpose Resistor |
| Accessory Type | SMD Thick Film Resistor Kit |
| TE Internal Number | 1625873-6 |
| Temperature Coefficient | ±100 |
| Packaging Method | Folder |
| Termination Type | Solder |
| Power Rating | .25 |
| Product Type | Fixed Resistor |
| Tolerance | 5% |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | Surface Mount |
| Number Of Values | 122 |
| Series | CRG1206 |
| Resistance Range | 1 Ω → 10 (MΩ) |
| Maximum Power Rating | 0.25 (W) |
| Technology | Thick Film |
| Resistance Tolerance | ±1 %, ±5 (%) |
| Number Of Pieces | 50 |
