RESKIT0402RS1%
RS 0402 1% RESISTOR KIT
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RESKIT0402RS1% by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

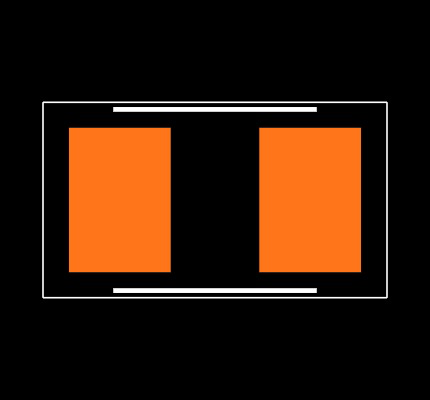

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RESKIT0402RS1%
| Part Name | RESKIT0402RS1% |
| Manufacturer | TE Connectivity |
| Mount Style | Surface Mount |
| Dimensions | 1 x .5 x .35 |
| Package | 0805 |
| Element Type | Thick Film |
| Resistor Type | General Purpose Resistor |
| Size Code | 0402 |
| Accessory Type | SMD Thick Film Resistor Kit |
| TE Internal Number | 1-1625873-4 |
| Temperature Coefficient | ±100 |
| Packaging Method | Folder |
| Number of Resistors | 1 |
| Termination Type | Solder |
| Number of Terminations | 2 |
| Power Rating | .063 |
| Product Type | Fixed Resistor |
| Tolerance | 1% |
| RoHS | True |
