RH-121509D
DC-DC Converter,15V,0.033A,-9V,0.056A,10.8-13.2VIn,Enclosed,PCB Mnt,RH Series | RECOM Power Inc. RH-121509D
Availability: Out of Stock
CAD Models: Symbol and Footprint
More Resources
Use this component in your design
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RH-121509D by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

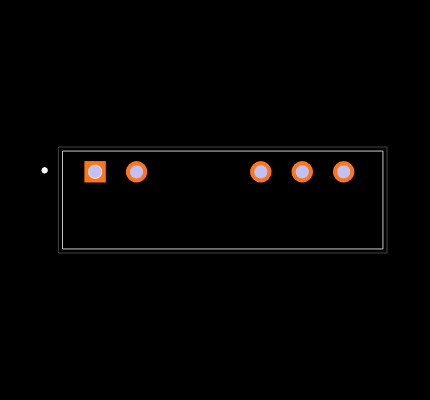

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RH-121509D
| Part Name | RH-121509D |
| Manufacturer | Recom Power |
| Category | Power Products |
| Number of Outputs | 2.0 |
| Isolation Voltage (V) | 3000.0 |
| Case Package | SIP7 |
| Series | RH-xx1509 |
| Short Circuit Protection | {'is_url': False, 'value': False} |
| Packaging Type | Tube |
| Lead Free Status | True |
| Input Voltage (V) | [10.8, 13.2] |
| Product Link | https://recom-power.com/en/products/dc-dc-converters/rec-p-RH-121509D.html |
| Power Rating | 1.0 |
| Output Voltage (V) | [9.0, 15.0] |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Depth | 10.2 (mm) |
| Number Of Outputs | 2 |
| Maximum Temperature | +90 (°C) |
| Isolation Voltage (V) | 3 (kV dc) |
| Output Current (A) | -56 mA, 33 (mA) |
| Mounting Type | Through Hole |
| Package | SIP 7 |
| Series | RH |
| Input Voltage Range (V) | 10.8 → 13.2 V dc |
| Isolated | Yes |
| Efficiency | 70 → 81 (%) |
| Length | 19.5 (mm) |
| Load Regulation | 0.1 |
| Minimum Temperature | -40 (°C) |
| Input Voltage Nominal (V) | 12 V dc |
| Power Rating | 1 (W) |
| Output Voltage (V) | -9 V dc, 15 (V dc) |
