RH-2412D
Recom Iso DC-DC Converter,Vin 21.6to26.4VDC,Vout +/-12VDC,I/O isolation 3000VDC | RECOM Power Inc. RH-2412D
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
More Resources
Use this component in your design
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RH-2412D by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

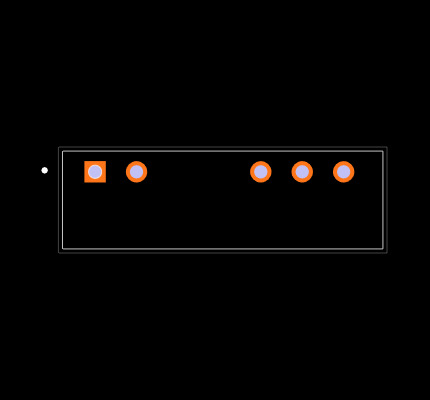

Footprint
No web preview
This Footprint is Available for

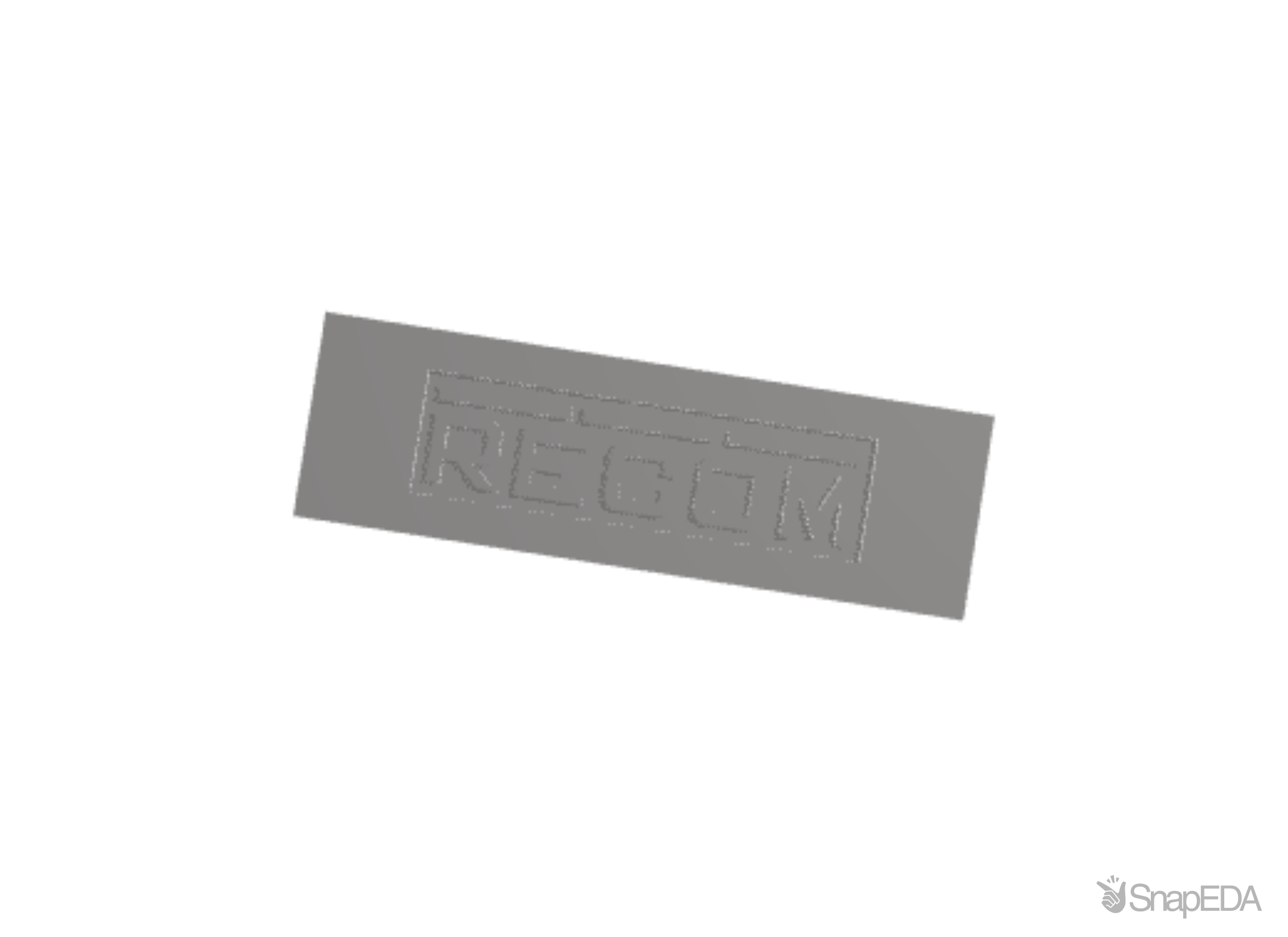

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RH-2412D
| Part Name | RH-2412D |
| Manufacturer | Recom Power |
| Category | Power Products |
| Number of Outputs | 2.0 |
| Isolation Voltage (V) | 3000.0 |
| Case Package | SIP7 |
| Series | RH |
| Short Circuit Protection | {'is_url': False, 'value': False} |
| Packaging Type | Tube |
| Lead Free Status | True |
| Output Voltage (V) | [12.0, 12.0] |
| high_runner | TRUE |
| Product Link | https://recom-power.com/en/products/dc-dc-converters/rec-p-RH-2412D.html |
| Power Rating | 1.0 |
| Input Voltage (V) | [21.6, 26.4] |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Outputs | 2 |
| Input Voltage Nominal (V) | 24 V dc |
| Output Current (A) | ±42 (mA) |
| Mounting Type | Through Hole |
| Package | SIP |
| Maximum Temperature | +85 (°C) |
| Series | RH |
| Input Voltage Range (V) | 21.6 → 26.4 V dc |
| Isolated | Yes |
| Depth | 10.2 (mm) |
| Isolation Voltage (V) | 3 (kV dc) |
| Length | 19.6 (mm) |
| Minimum Temperature | -40 (°C) |
| Power Rating | 1 (W) |
| Output Voltage (V) | ±12 (V dc) |
