RIC11-22S10D5S-TH
12 mm, 5 Vdc, 20 PPR, Through Hole, Mechanical Panel Mount Encoder
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RIC11-22S10D5S-TH by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

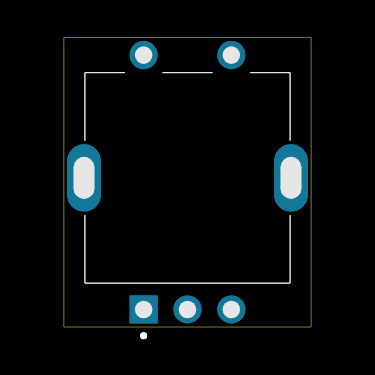

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RIC11-22S10D5S-TH
| Part Name | RIC11-22S10D5S-TH |
| Manufacturer | Same Sky |
| Resolution (PPR) | 20 |
| Push Switch | Yes |
| Orientation | Vertical |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/ric11-22s10d5s-th |
| Input Voltage (Vdc) (V) | 5 |
| Encoder Type | Incremental |
| Output Type | Single Ended Quadrature |
| Detent | Yes |
| Package Type | Panel Mount |
| Shaft Length (mm) | 10 |
| Termination | Through Hole |
| Operating Temp. (°C) | -40 ~ 85 |
| RoHS | True |
| Life Cycle Status | New Product |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the RIC11-22S10D5S-TH by Same Sky from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
716
|
|
Visit Site |
No issues have been reported for the RIC11-22S10D5S-TH
If you experienced any issues with the symbol or footprint, please report it.
